Product details

Cuckoo Series Through axis rotary tiller, with a working width of 140-200, is suitable for small plots or family farms. It is equipped with tractors ranging from 40-100 horsepower and an 8-module gearbox for smoother operation. Depending on the situation of the plot, the cutter shaft can be optionally selected

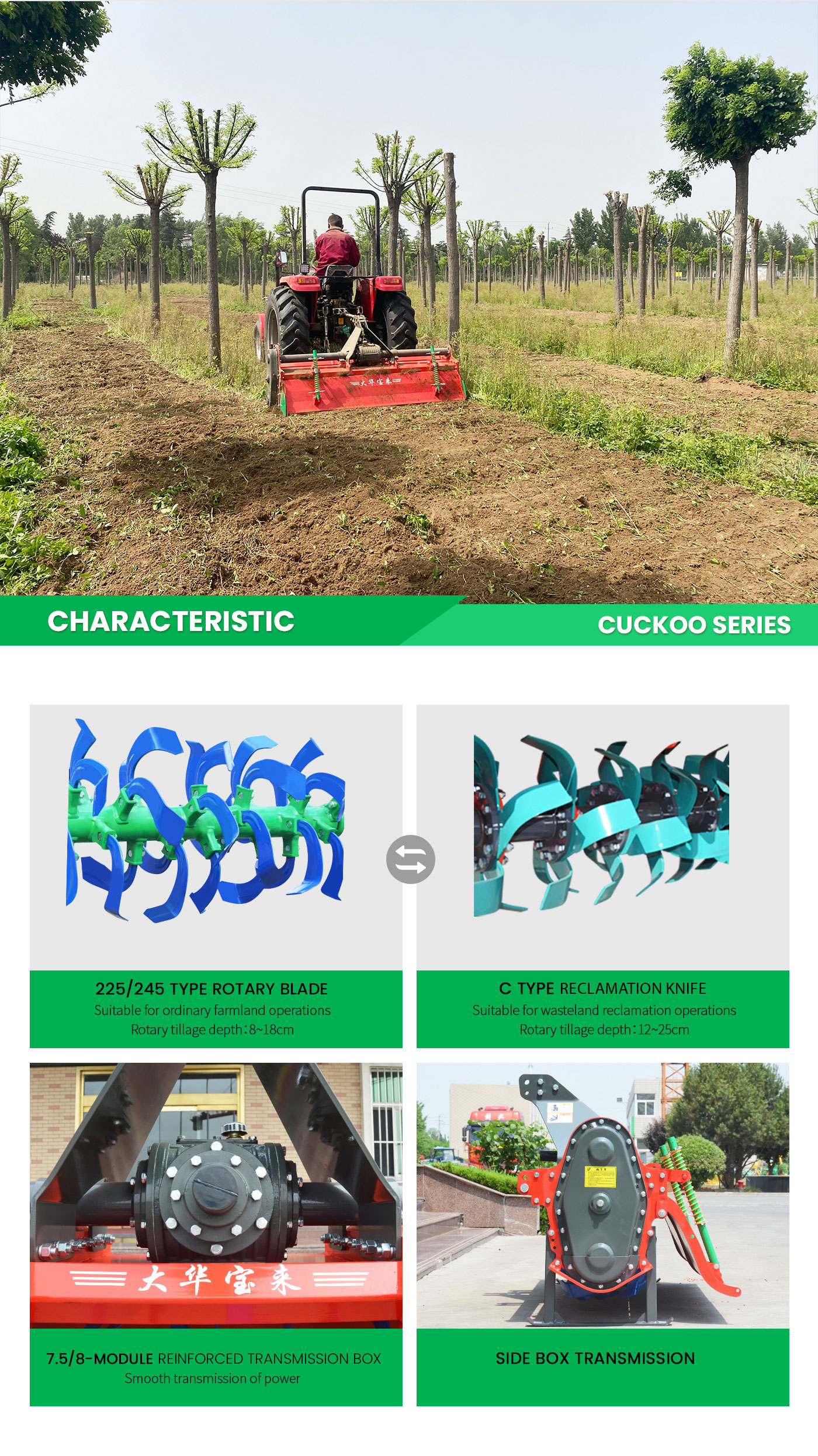

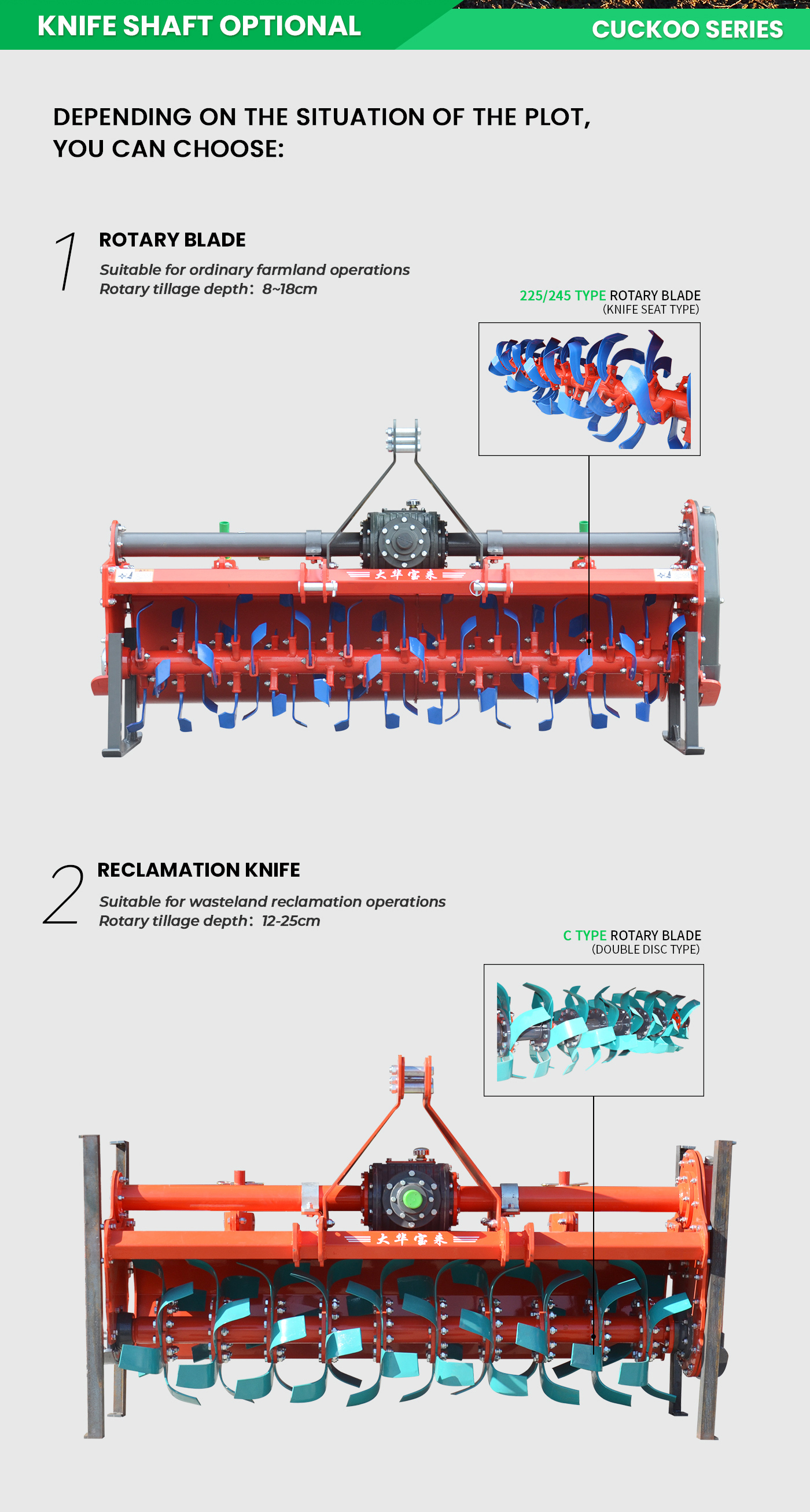

225 TYPE rotary blade（Knife seat type），Suitable for ordinary farmland operations，Rotary tillage depth：8~18cm
C TYPE rotary blade（Double disc type），Suitable for wasteland reclamation operations，Rotary tillage depth：12-25cm

Small tillage machinery that is paired with tractors to complete plowing and raking operations

Rotary tiller is a tillage machinery that is paired with a tractor to complete tillage and raking operations. Due to its strong soil breaking ability and flat surface after cultivation, it has been widely used; At the same time, it can chop up the roots buried below the surface, making it easier for the seeder to operate and providing a good seedbed for later sowing. It has the functions of breaking down the plow bottom layer, restoring the structure of the soil plow layer, improving soil water storage and moisture retention capacity, eliminating some weeds, reducing pests and diseases, leveling the surface, and improving agricultural mechanization operation standards.

Small tillage machinery suitable for-small farm plots or household farmland

Technical Specifications			Whole Shaft / Single side gear transmission
Product Model		Unit	DH-140	DH-160	DH-180	DH-180Pro	DH-200Pro
Total Width (W)		mm	1650	1850	2050	2050	2230
Total Length (L)		mm	960	960	960	980	980
Total Height (H)		mm	920	920	920	920	920
Weight		kg	340	360	400	410	430
Working Width		cm	140	160	180	180	200
Matching Power		hp	40~60	50~80	60~90	60~90	70~100
Number of Blades	225	pcs	42	50	52	/	/
	245	pcs	/	/	/	58	60
	C	pcs	8x6	10x6	11x6	11x6	12x6
Working Depth		cm	≥12	≥12	≥12	≥12	≥12
Pro：Gearbox 8M
