OCS22 work video

 Model

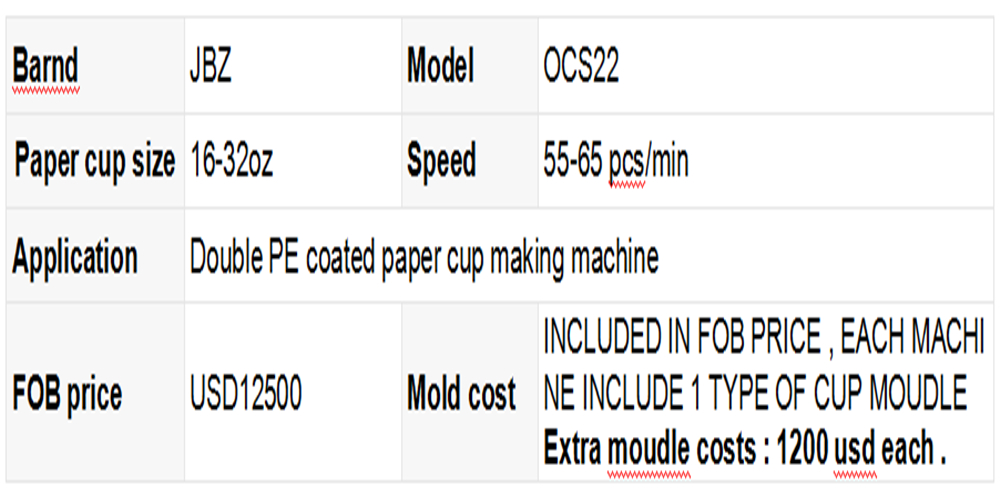

JBZ-OCS22 Open Cam Single plate Middle Speed Paper Cup Machine

Cup Side Welding:

 Ultrasonic heater

Paper Cup Size

16OZ to 32OZ

 Raw Material

One or Two side PE coated Paper
(Popular for Hot and Cold drink Cups)

 Suitable Paper Weight

140—350GSM

Speed

55-65 pcs/min

 Total Power

 6 KW

 Power Source

50/60HZ, 380V/220V ( better use 380V, 3 Phase ) or special Power requirement.

 N.W

 1400Kg

 Gross Weight

 1450Kg

Machine Size(L * W * H)

2000*900*1850mm

 Package Size(L * W * H)

2100*1000*1950mm

Working Air Source:

Air pressure:0.4Mpa;
Air Out-put:0.6m³/minute
Need to buy Air Compressor(by user)

Cup Bottom Heating:

1side PE paper by heater knurling;

2side PE paper by cool device (circle

water) knurling

Cup Bottom Knurling:

Heater Knurling (if use single PE coated paper)

Packing

Seaworthy Wooden Case

OEM ( Original equipment Manufacturer ) is welcome in our factory
