ZB-NB running video
4 year ago
|
名称 Name |
普通纸杯机 Automatic Paper Cup Machine |
|
|
HS Code |
8441309000 |
|
|
型号 Model |
ZB-NB/ZB-NB(A) |
|
|
|
||
|
FOB PRICE |
USD |
12200 |
|
Options: ONE MACHINE TAKE 1 MOUDLE FREE , EXTRA Mould 900USD EACH |
||
|
杯子尺寸 Paper Cup Size |
6-12oz |
|
|
上口径 Paper Cup Top Diameter |
Min 38mm-max94mm |
|
|
下口径 Paper Cup Bottom Diameter |
Min30mm-75mm |
|
|
高 Paper Cup Height |
Min30mm-111mm |
|
|
材料要求 Raw Material |
单淋膜或者双淋膜（双淋膜需配超声波） One-side PE coated paper(Single PE coated papet) |
|
|
速度 Speed |
45pcs/min |
|
|
建议一天开 20 小时以内 20 hours stable running per day |
||
|
纸张厚度 Suitable paper weight |
150-350gsm |
|
|
电压要求 Voltage supply |
220v50hz single phase/ 380v50hz 3-phase (better to use 380v50hz 3-phase) *If user’s voltage supply is different, please inform us in advance. |
|
|
功率 General power |
6kw 单淋膜single PE |
8.5kw 双淋膜 double PE |
|
重量 Net weight |
1600kgs |
|
|
尺寸 Measurement (mm) |
Machine 3000*1400*1700mm/ WoodenCase 3100*1500*3200 |
|
|
杯身\杯把粘合 Cup Side\Cup Handle Sealing |
普通热粘合 Normal Heater |
超声波粘合 Ultrasonic
|
|
底部滚花 Bottom Knurling |
加热圈加热粘合Normal Heater
|
吹气加热粘合 AIR HOT SYSTEM |
|
We can customize machine and mold according to customer’s requirement. |
||
ZB-NB Paper cup with handle machine is the automatic machine with multi-working station.
It produces cup through the produce of automatic paper cup wall feeding, paper handle feeding,handle stick,top cup lubrication,bottom punching,heating,knurling,curling and cup stick.This machine not only can make the cups with handle,and also can make the cups without handle.This cup is for hot drinking,such as soft drinking,and coffee etc.

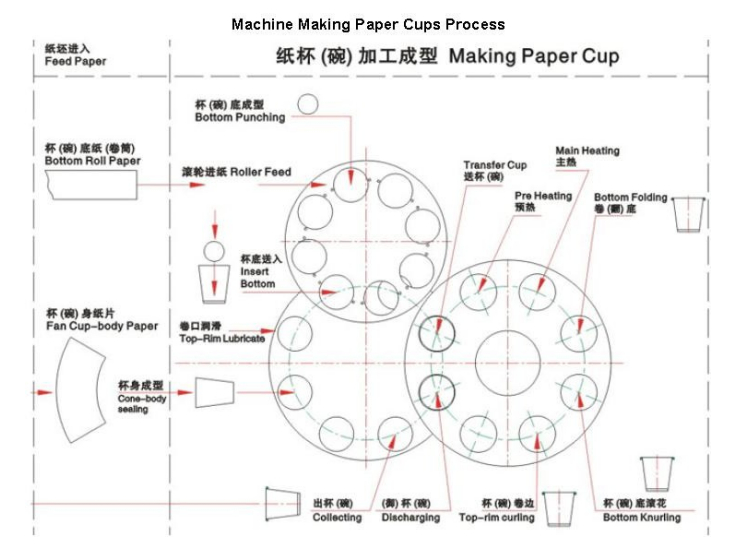

Machine making paper cups process:

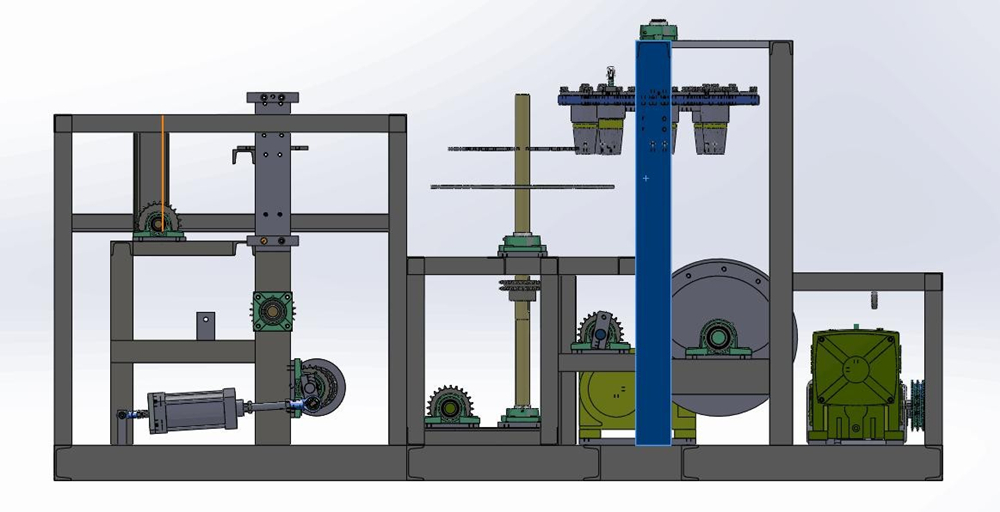

Machine structure diagram:
