PP Membrane Valve True Union
4 year ago
PP Membrane Valve Socket Fusion Welding PV113E is an economical type plastic diaphragm valve, with smaller and light body design. this model PVC PP diaphragm valve offer body material PVC, PPH, and PVDF with EPMD and FPM membrane material for optional. socket end and flange connection by DIN, ANSI, JIS standard available. PVC membrane valve is suitable for PVC pipe systems of swimming pool, dosing system, and water treatment, acid and alkaline liquids.
RMI PLAST offer PVC Membrane valve with the specifications as follows:
Basic specification
Size range: DN15~DN100 (1/2 inch ~ 4 inch)
Body materials: PVC,PPH,PVDF
Diaphragm material: EPDM,FPM
Socket connection: DIN ANSI JIS
Design pressure: 1.0Mpa (PN10 bar)
Feature of valves
Body and diaphragm that touch medium are made from plastic and rubber.
Socket connection for easy installation.

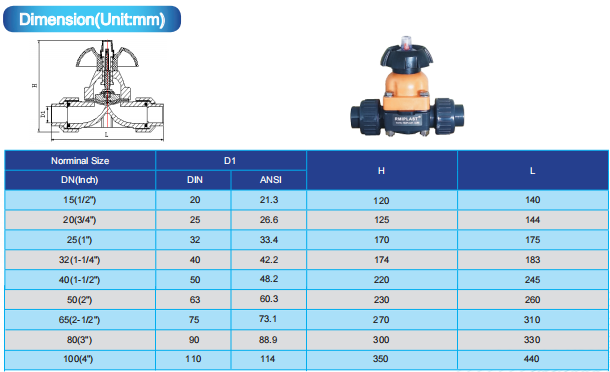

Dimension:
