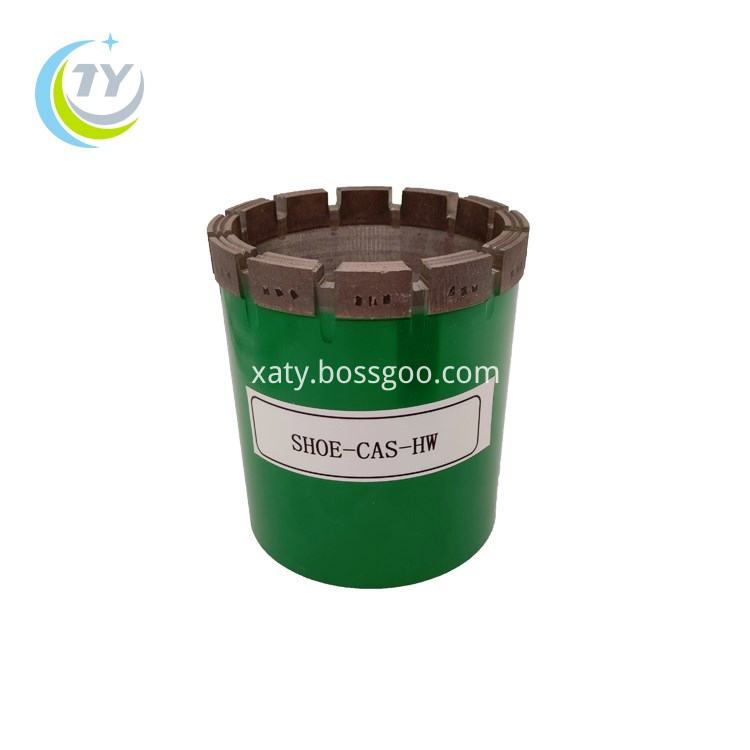

HW casing shoe
4 year ago

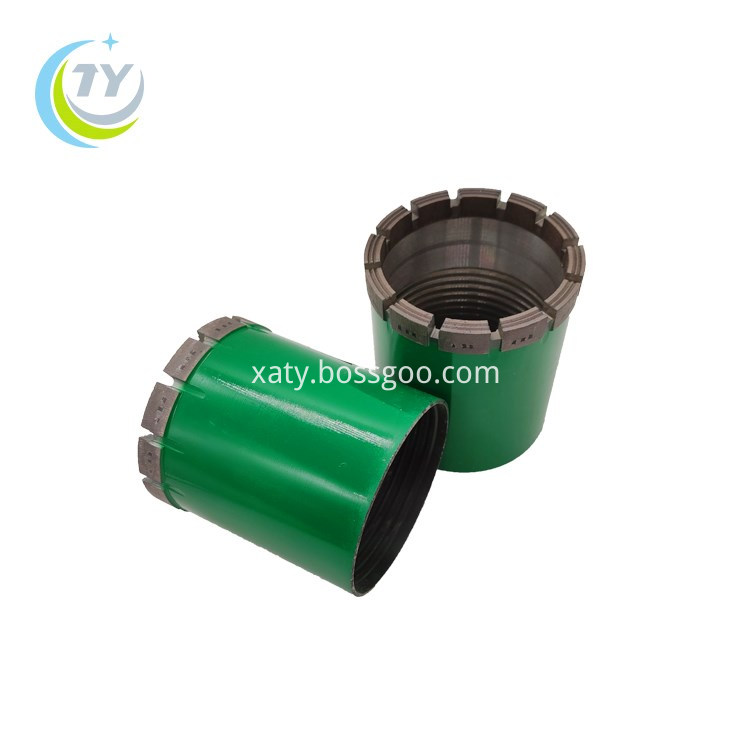

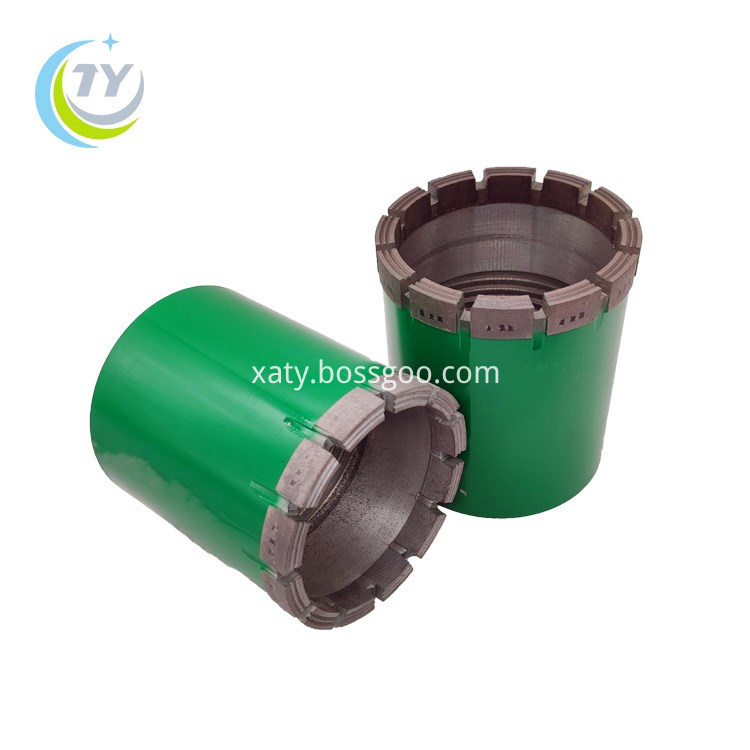

HW casing shoe is made with diamond and steel with forging process. Diamond casing shoe for HW is use with casing pipe to protect the casing pipe head. We supply casing shoe and related products since 2010, because of the high quality raw material and mature producing process we use, our diamond core bit is widely used in mining, water well drilling and geological drilling, till now we have won clients in many countries and feedback is good.
Parameters of diamond casing shoes
Casing shoe size
Matric system(mm)
Outside diameter
Inside diameter
AW
59.5
48.2
BW
75.3
60.2
NW
92.0
76.2
HW
117.6
99.7
HWT
117.6
99.7
PW
143.5
124.5
PWT
143.5
124.5
SW
172.5
146.7
Packaging and shipping
Packaigng for Diamond asing shoe bit for BW casing pipe is in the carton box;
Available products will be sent within 5 working days, batch products will be up to the order quantity;
Samples will be sent by express, batch products will be sent by air or by sea, it is up to the order quantity and client's requirement.
Company information
Xi'an Heaven Abundant Mining Equipment Co.,Ltd is one of the core bits manufacuturers and exporters in China. Our company adpots high quality raw material to produce quality products with good price since 2010, except for impregnated core bit, we also supply PDC bit, tricone bit, cutting tools, rock drilling tools and other drilling accessories. Welcome to contact us if you have any requirement of our product.
