Filter Screw Press
4 year ago

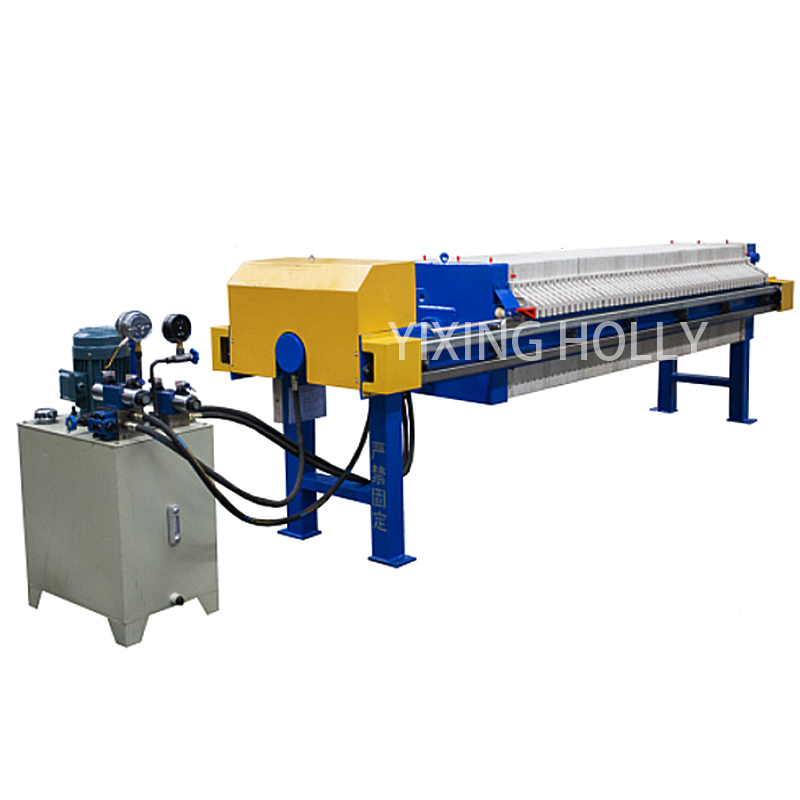

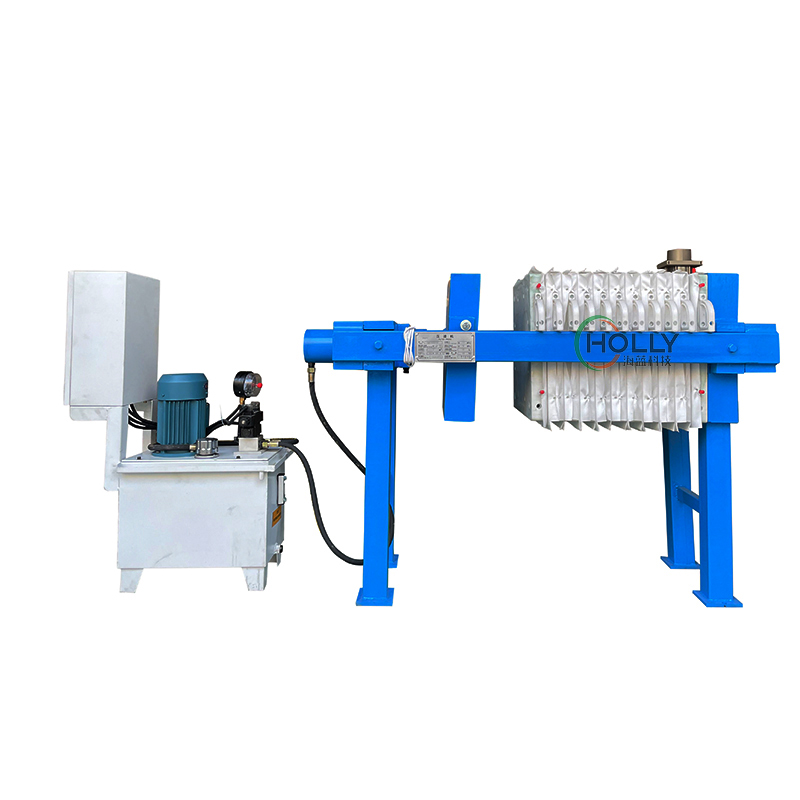

Sludge Dewatering Filter Press
Product Desprition
Working Principle
During the fill cycle, the slurry pumps into the filter press and distributes evenly during the fill cycle. Solids build up on the filter cloth, forming the filter cake in the void volume of the plate. The filtrate, or clean water, exits the filter plates through the ports and discharges clean water out the side of the plates.Filter presses are a pressure filtration method. As the filter press feed pump builds pressure, the solids build within the chambers until they are completely full of solids. This forms the cake. The filter cakes release when the plates are full, and the cycle is complete.
Product Parameters
|
Model |
Filter Area(²) |
Filter Chamber Volume(L) |
Capacity(t/h) |
Weight(kg) |
Dimension(mm) |
|
HLFP50 |
50 | 748 | 1-1.5 | 3456 |
4110*1400*1230 |
|
HLFP80 |
80 | 1210 | 1-2 | 5082 |
5120*1500*1400 |
| HLFP100 | 100 | 1475 | 2-4 | 6628 |
5020*1800*1600 |
| HLFP150 | 150 | 2063 | 3-5 | 10455 |
5990*1800*1600
|
|
HLFP200 |
200 | 2896 | 4-5 | 13504 |
7360*1800*1600 |
| HLFP250 | 250 | 3650 | 6-8 | 16227 |
8600*1800*1600 |
Applications
* Food and Beverage Processing
* Chemical Manufacturing
* Mining
* Power Generation
* Aggregates
* Asphalt and Cement Production
* Steel Mills
* Municipal Plants
