Energy-saving garment dryer

GY- 100-400P New type energy-saving environmental dryer

Energy-saving dryer adopting imported Italian combustion machine, energy efficiency 100% heating up fast, high efficiency, reduces the use cost.

With garments of large diameter door design, loading and unloading of convenient clothing, the plush collection net of large area, not easy to cause plush jams, guarantee the smooth air duct and the drying efficiency can be enhanced greatly.

The patent and optimize the design of the transmission structure, not only assured the machine durability but also convenient for user to maintenance.Low temperature air cooling circulation function, which can effectively prevent wrinkle free clothes, not deformation, and take the clothes is not hot.

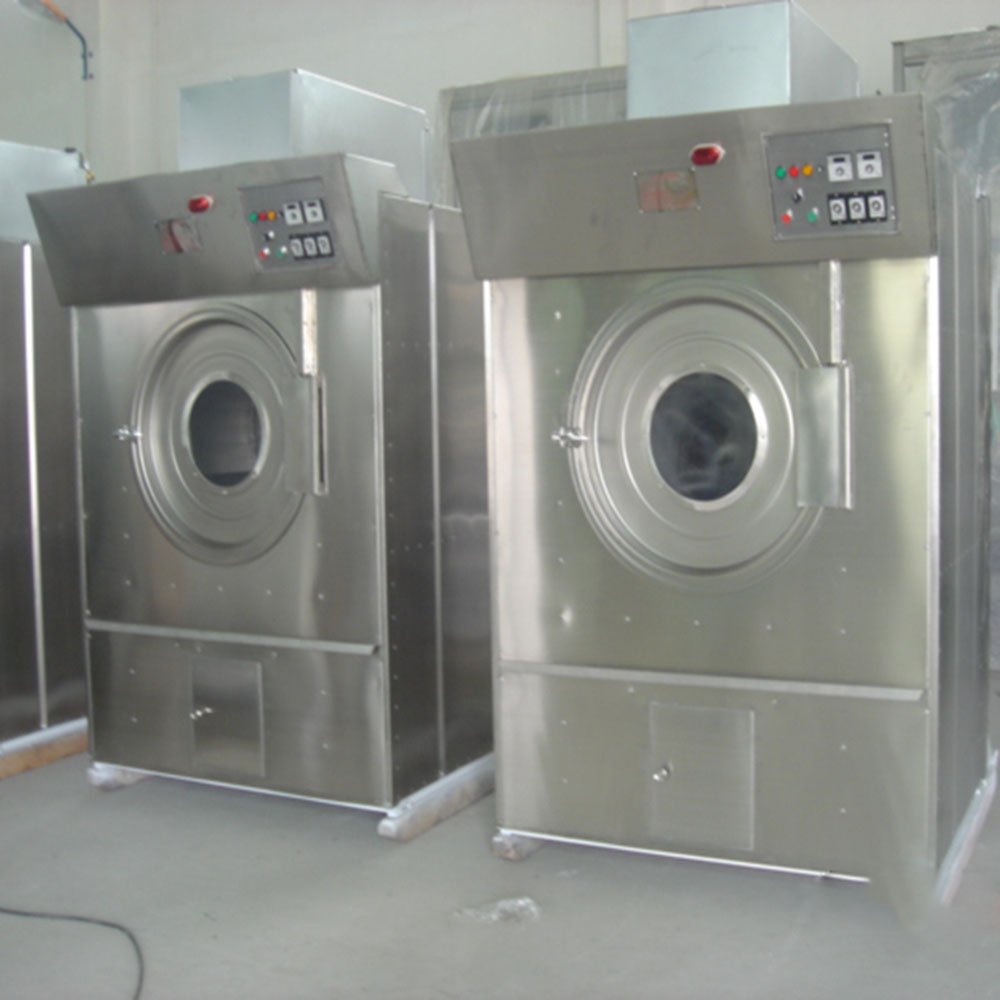

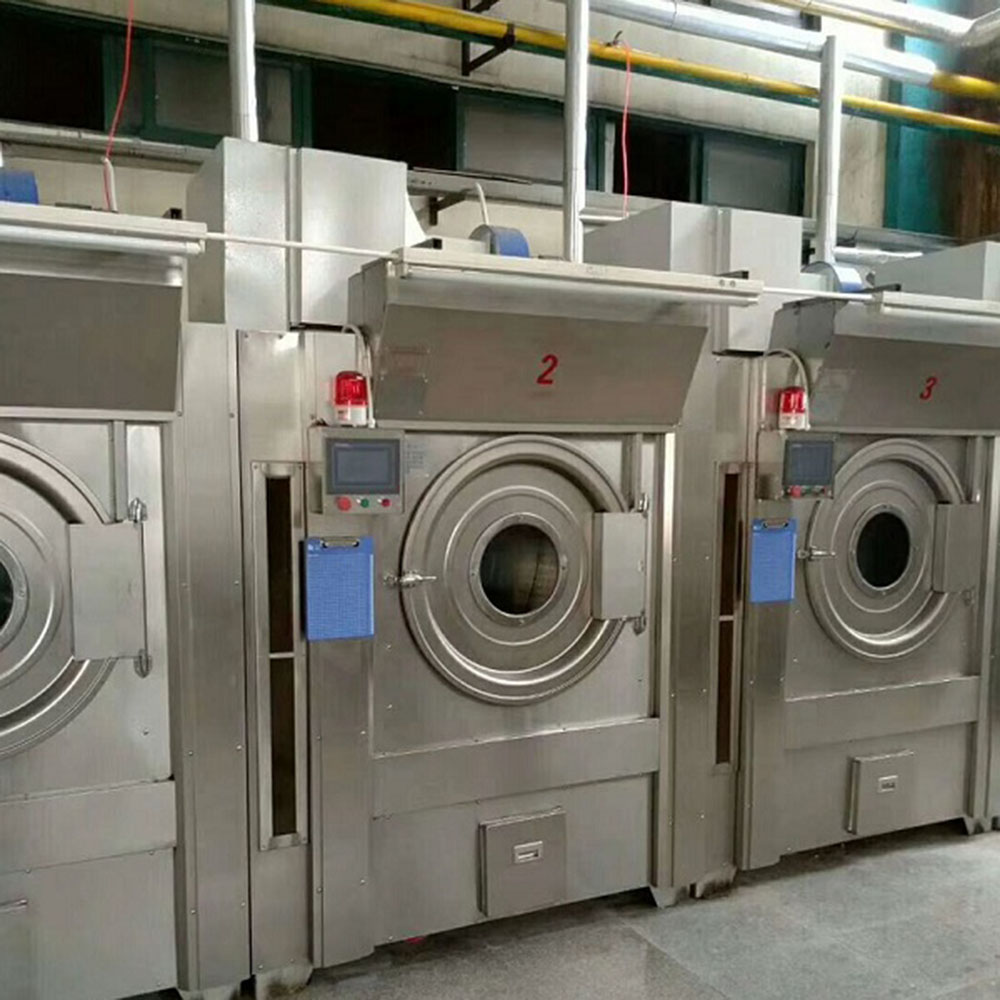

Product images

Configuration/set(200P):

1)Inner drum made of 304 stainless steel

2)Machine weight :1100kg

3)Capacity: 90kg/200lbS

4)Speed: 28r/min

5)Inner plate thickness 2.0mm, side 304 plate thickness 1.0mm,

6)Overall size: 1880x1560x2560mm

7)Drum size: ￠1440X1040mm

8) Motor     Joint venture

9)Host motor power: 2.2KW

10)Fan power :2.2KW

11) Time relay, temperature control meter, solenoid valve  Domestic

12)Taiwan temperature probe

13) Steam heating system

14)Air filtration device

15)Door safety device;

16)Door allocated with glass inspection mirror

17)End automatic alarm device

18)Standard control electric cabinet, touch screen computer control

19)High efficiency and energy saving heat exchanger

20)Internal and external circulation energy-saving hot air;

22) The heat energy of the heat exchanger is fully utilized;

23)Save more than 30-35% steam, drying time significantly shortened more than 10 minutes

24)With steam function, connecting the steam conduit to install electromagnetic, with the time controller (such as 10 minutes to spray 10 minutes of steam).
