Industrial Sausage Making Vacuum Filling Machine
OVERVIEW OF Vacuum Filling Machine
The Vacuum fillers ZKG-6500 is designed for mass food filling production line, linked with twister or twisting machine,
length porting device, clipper, filling for kinds casing sausage,ham, hot dogs; lined with bagging equipment or canning
equipment, filling for meat canned,Shrimp slip, pet food and so on.
FUNCTIONS & FEATURES OF Vacuum Filling Machine

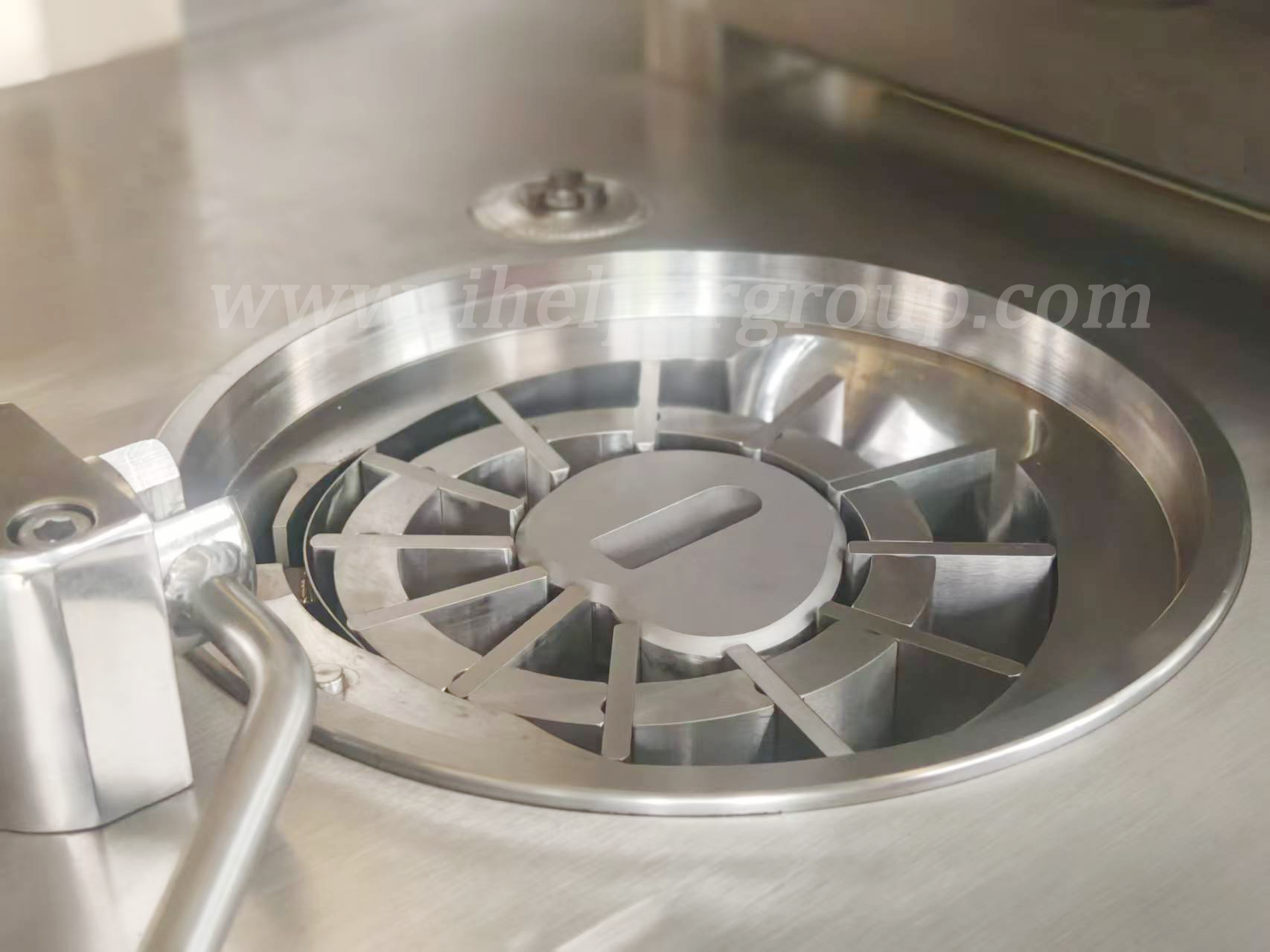

- Vane cell feed structure to assure portioning accuracy
- servo motor and PLC controller
- Stepless filling speed adjustment
- Stepless twisting speed adjustment
- Full made stainless steel structure meets all hygienic requirements
- High degree of vacuumization filling process
- Auto lifting device
TECHNICAL PARAMETER OF VACUUM FILLERS
Model
Portioning Range
Filling Capacity
Hopper Capacity
Power
Voltage
Net Weight
External Dimension
ZKG-6500
5-9999 g
6500 g
220 L
8.3 kw
380 V
1000
2210*1400*2140
APPICATION OF VACUUM FILLERS

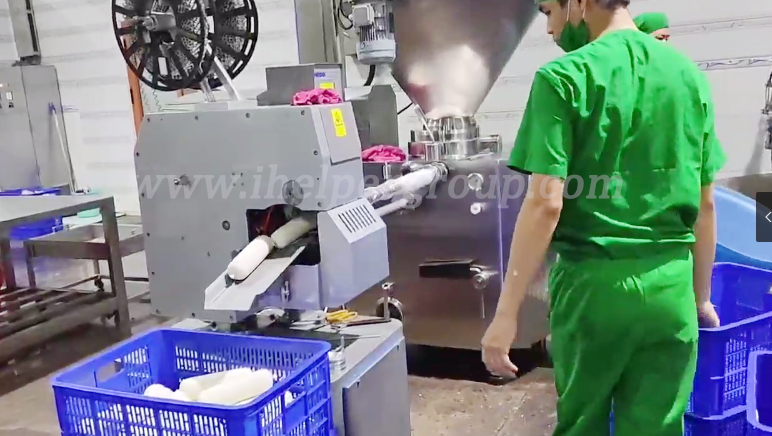

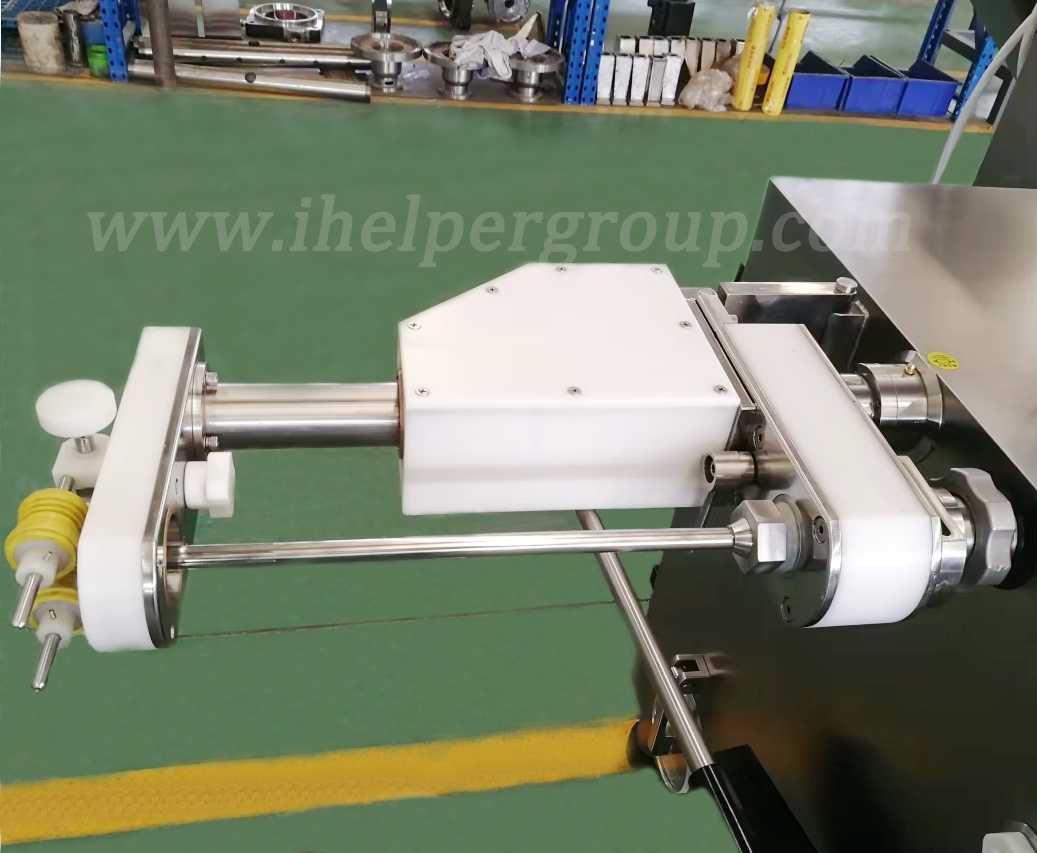

ZKG-6500 Vacuum Fillers linked with twister ( twisting device)

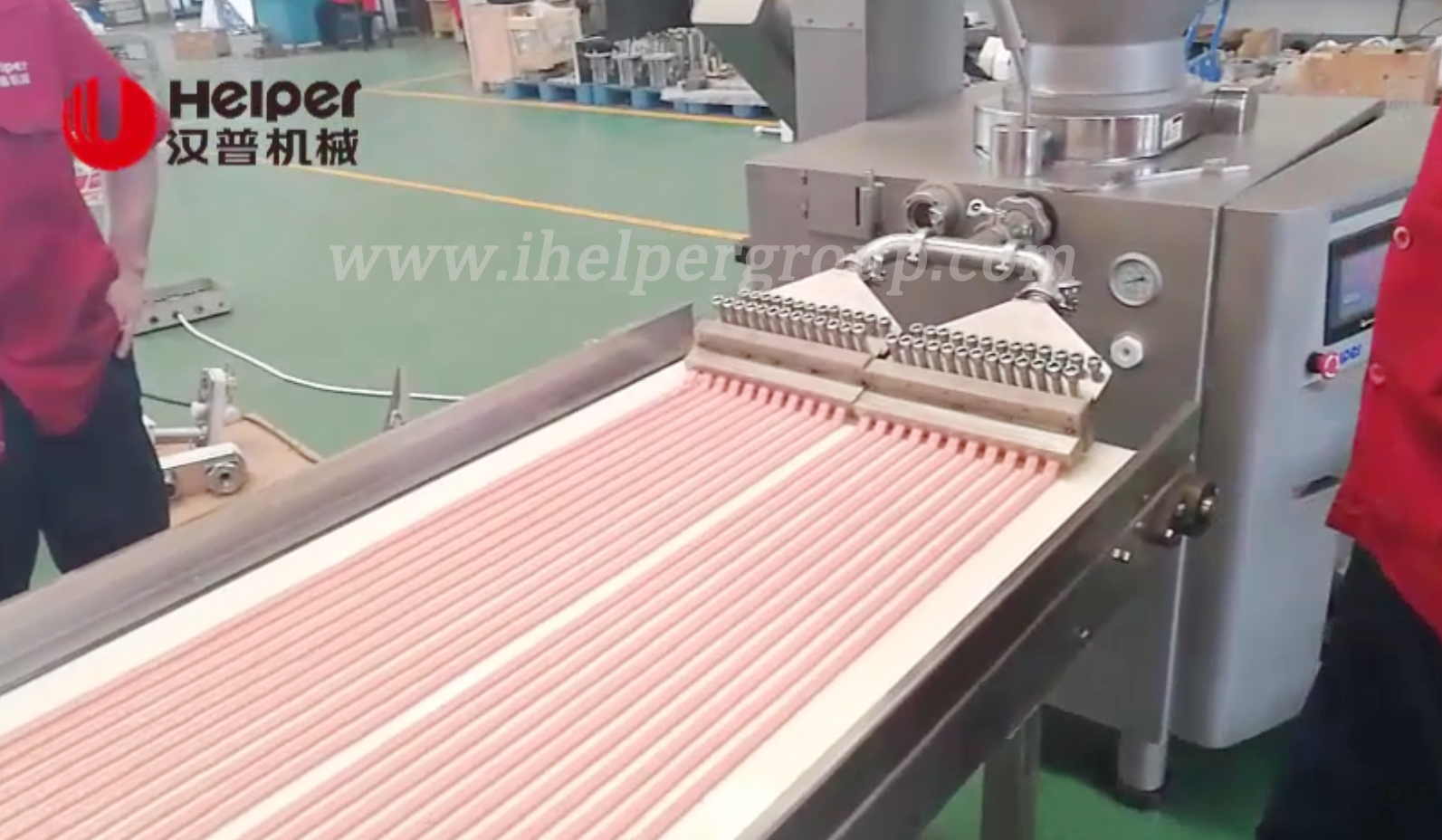

ZKG-6500 Vacuum Fillers linked with Twisting and hanging machine ,applied for calibre 14-35 mm，Sausage length 15-200 mm
ZKG-6500 Vacuum Fillers linked with Clipping machine，applied for calibre 20-125 mm
ZKG-6500 Vacuum Fillers linked to bagging equipment / canning equipment, applied for meat canned，Shrimp Slip，pet food etc.
