HEX WIRE NETTING
3 year agoGalvanized hexagonal wire mesh for fish trap
JUNTAN company supply hexagonal wire netting, also known as the soft edge mesh. The twisted mesh is a wire mesh made of angular mesh (hexagonal) woven by metal wires. The diameter of the metal wire used varies according to the size of the hexagon.
characteristic:
(1) Easy to use, just put the mesh on the wall or building cement to use
(2) The construction is simple and does not require special technology
(3) Strong ability to resist natural damage, corrosion resistance and harsh weather
(4) It can withstand a wide range of deformation without collapsing. For fixed thermal insulation
(5) Excellent process foundation ensures the uniformity of coating thickness and stronger corrosion resistance
(6) Save transportation costs: it can be shrunk into small rolls and wrapped in moisture-proof paper packaging, taking up little space.
use:
(1) Building wall fixing, heat preservation and heat insulation;
(2) Power plants tie pipes and boilers to keep warm;
(3) Antifreeze, residential protection, landscaping protection;
(4) Raising chickens and ducks, isolating chicken and duck houses, and protecting poultry;
(5) Protect and support seawalls, hillsides, roads and bridges and other water and wood works.
HOLE SIZE |
WIRE GAUGE |
|||
Inch |
mm |
Tolerance |
BWG |
mm |
3/8" |
10 |
+0.5 |
BWG 27-23 |
0.41-0.64 |
1/2" |
13 |
-1.5 |
BWG 27-22 |
0.41-0.71 |
5/8" |
16 |
+1.0/-2.0 |
BWG 27-22 |
0.41-0.71 |
3/4" |
19 |
+1.0/-2.5 |
BWG 26-20 |
0.46-0.89 |
1" |
25 |
+1.5 |
BWG 25-29 |
0.51-1.07 |
1 1/4'' |
31 |
-3.0 |
BWG 24-18 |
0.56-1.24 |
1 1/2" |
40 |
+2.0/-4.0 |
BWG 23-16 |
0.64-1.65 |
2" |
51 |
+2.0/-4.0 |
BWG 22-14 |
0.71-2.11 |
3" |
76 |
+2.0/-4.0 |
BWG 21-14 |
0.81-2.11 |
4" |
100 |
+2.0/-4.0 |
BWG 20-12 |
0.89-2.80 |

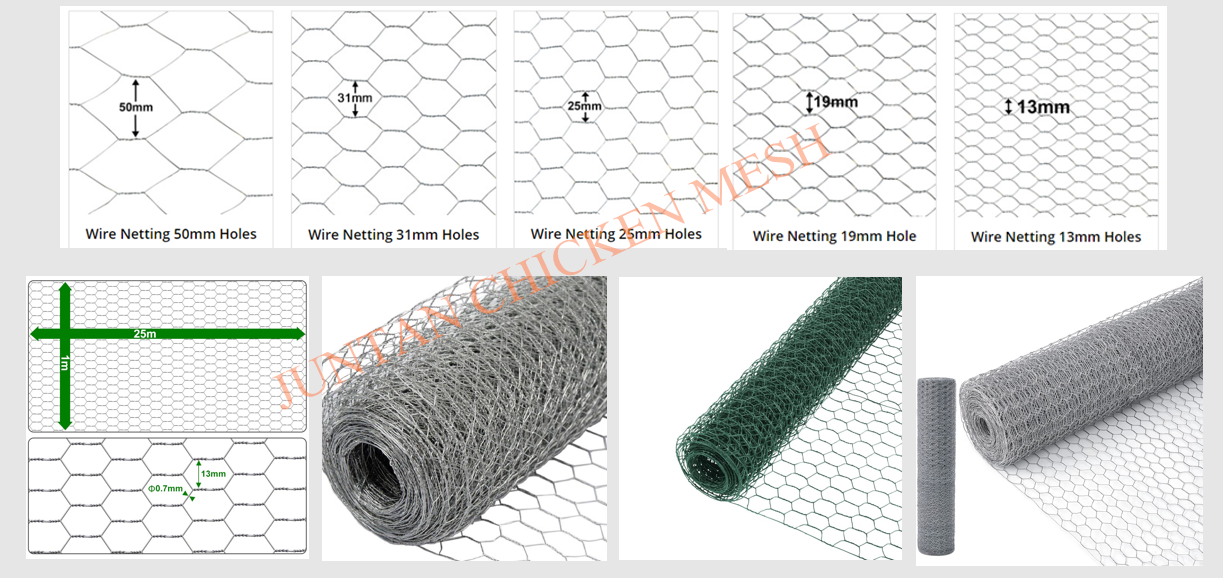

The hexagonal wire netting data details photo,

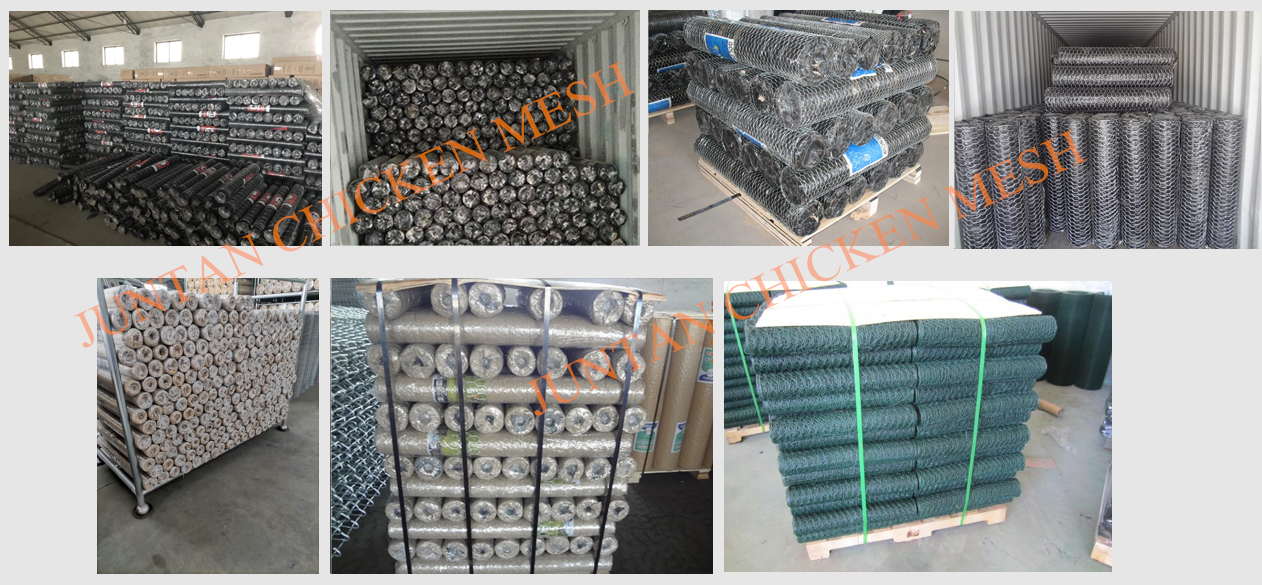

The hexagonal wire netting packing and shipping details photo,
The Hexagonal wire mesh/Netting application showing details,
Our best-selling products are Chain Link Fence, Green Chain Link Fence, Wire Mesh Panels, Welded Wire Fence, Stainless Steel Welded Wire Mesh, Stainless Steel Woven Wire Mesh, welcome to inquire.
We are specilized with Hexagonal Wire Netting and sincerely welcome your inquiry!
Let's together, make future better!
