Yagi Directional Antenna 3G/4G/LTE 9dBi 806MHz-960MHz and 1.7-2.5GHz 2FT Cable w/ 2FT RP-SMA Male Cable to TS-9 Adapter - Cell Phone Signal Log Periodic Cellular, White

• Yagi Antenna 9 dBi Wide Band 800MHz and 1.7-2.5GHz
• RP-SMA Male 2ft Cable to TS9 connector adapter
• Wide Range Multipurpose Log Periodic Cellular Broadband - Cell Phone 3G/4G/LTE Hotspot Compatible -
• Collect the cell tower signal and send it through the cable to an amplifier, cell phone or cellular data card.
• This unique multi-band directional antenna covers the spectrum from 800 MHz and 1.7 GHz and can be used for cellular frequencies.

1.Omni Directional Antenna for TV

2.Omni Directinal Wifi

3.Omni Directinal Outdoor

4.Omni directinal Indoor

5.Omni Directional HD Antenna

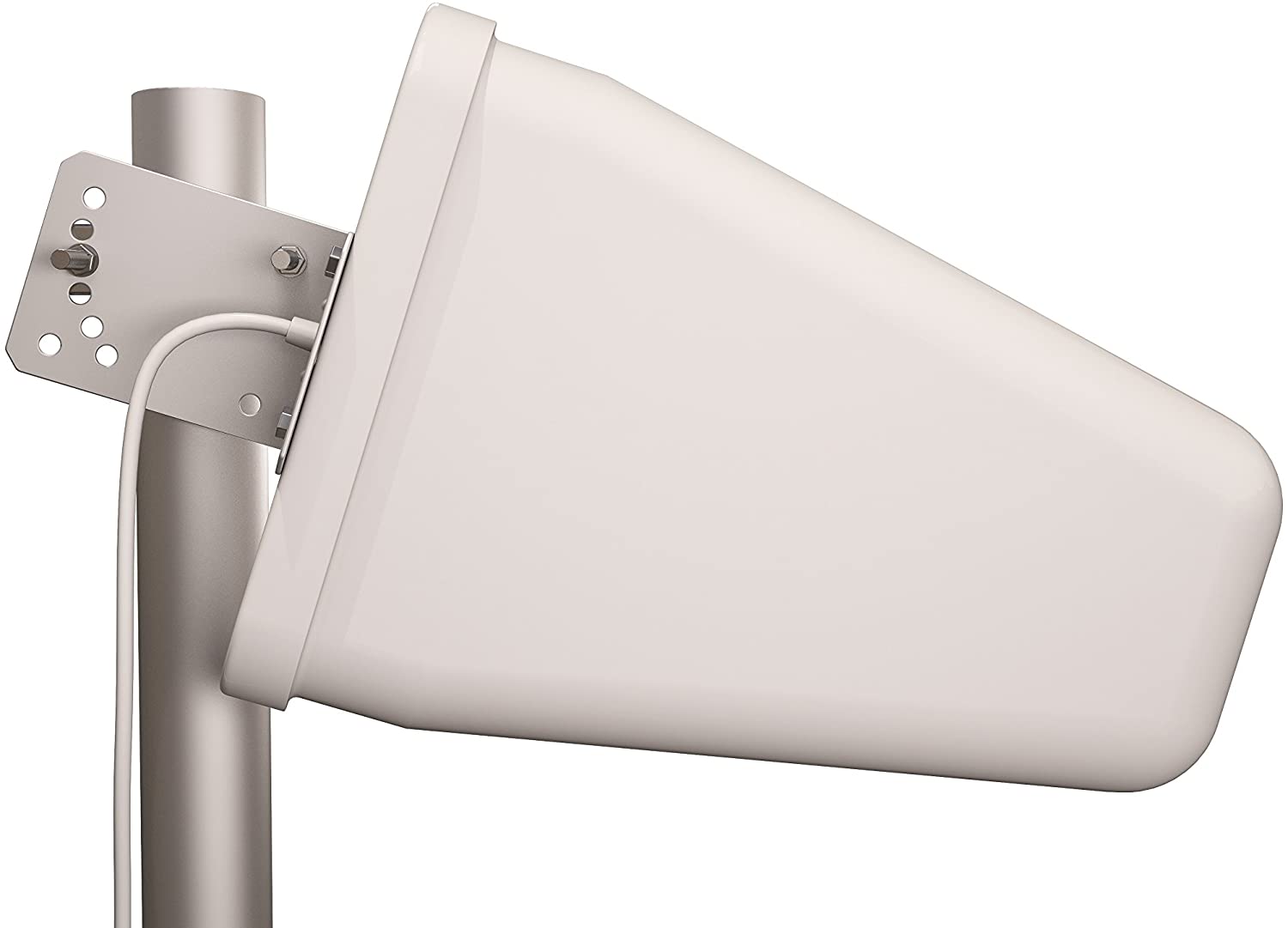

The main benefit of this wideband Yagi antenna is its ability to focus its signal in one direction leading to greater gain figures. This antenna is designed for use on stationary objects such as buildings or houses. This unique multi-band directional antenna covers the wide multi-range spectrum and can be used for cellular frequencies including North American standard 850 and 1900 MHz bands.

Yagi Cell Antenna  is a roof antenna and in most cases cannot be attached directly to the device (wifi router, AP, etc.) without some type of cable converter/adapter. This is the directional antenna and you will need to know the direction of your source signal. This Antenna has RP-SMA Male with additional TS-9 adapter/connector to fit and connector type on your device. Also, you can put an amp of some kind between the device and the antenna. Please check your cellular provider frequency to be sure that the antenna range will cover that frequency.

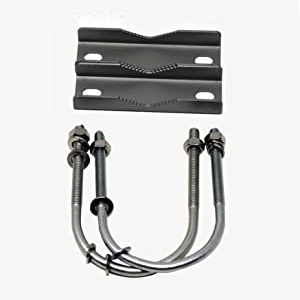

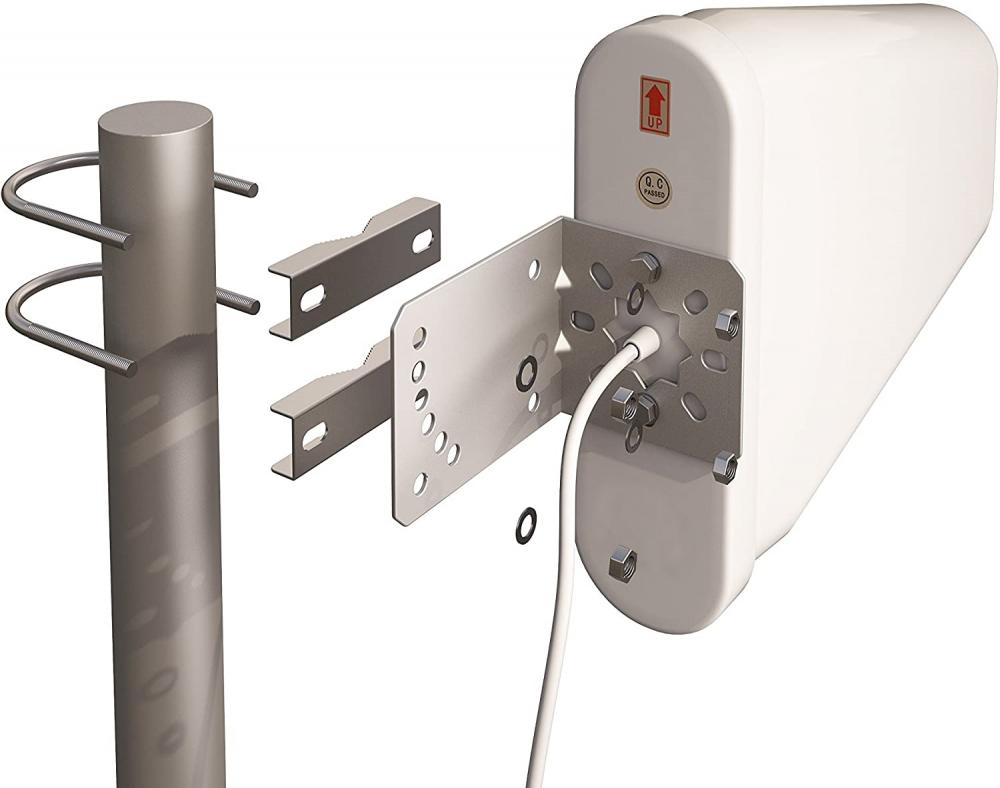

The antenna does not come with mast pole mount; it comes with two U-bolts which can be used with the attached plate for pole mounting. It allows horizontal or vertical polarization.

The Yagi antenna is used to direct the WiFi beam. It will increase the signal/reception in the direction it is pointing.

The Yagi antenna operates without the need for a grounding in most cases. However, you can ground antenna via the outer conductor of the connector and the cable, or through the mounting hardware. We do, however, recommend you install a lightning surge protector between the cell antenna and a device to prevent a lightning strike to the antenna from damaging your device and equipment.

Electrical Data

• Frequency: 806-960/1710-2500 MHz
• Gain: 9 dBi
• VSWR: <1.5:1
• Polarization: Horizontal Or Vertical

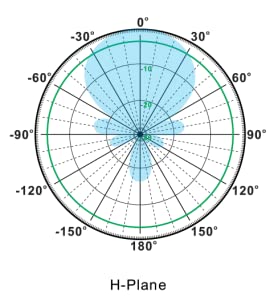

• Horizontal Beamwidth : 65°
• Vertical Beamwidth: 55°
• Nominal Impedance: 50 Ohms
• F/B Ratio: >14 dB
• Max Input Power: 100 W
• Lightning Protection: DC Ground

Mechanical Data

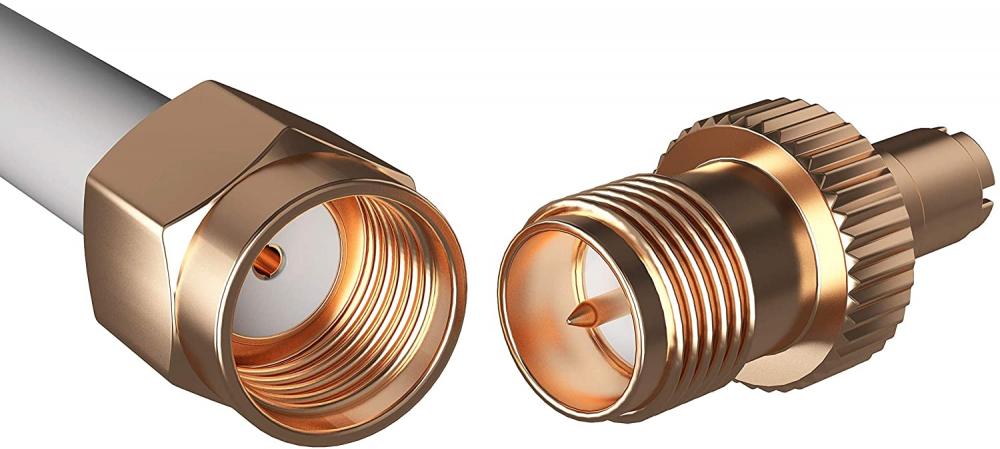

• Connector : RP-SMA Male and TS9
• Dimension: (L*W*H) 11.81*8.27*2.56 in
• Weight: 1.76lb
• Cable Length: 11.81in
• Reflector Material: Aluminum Alloy
• Radome Material: Weatherproof ABS
• Mounting Method: Mast
• Mast Size: Ø40-Ø50mm
• Rated Wind Velocity: 210km/h
• Operating temperature: -40~+65℃
