Product details

1045 tg&p precision steel round bars

1045 steel is one kind of engineering structural medium carbon steel with good machinability and high tensile properties. 1045 carbon steel is equivalent with EN8, 080M40, AISI1045, SAE 1045, 45#, JIS S45C etc. It is usually used to produce gears, bolts, nuts, axles and various kinds of shafts. 1045 steel we supply include 1045 steel round bar, 1045 steel square bar, 1045 steel flat bar and 1045 hexagonal steel bar etc. We can also do further processing on the bars to produce 1045 cold drawn steel bar, 1045 quenched and tempered steel bar, 1045 normalized steel bar etc.

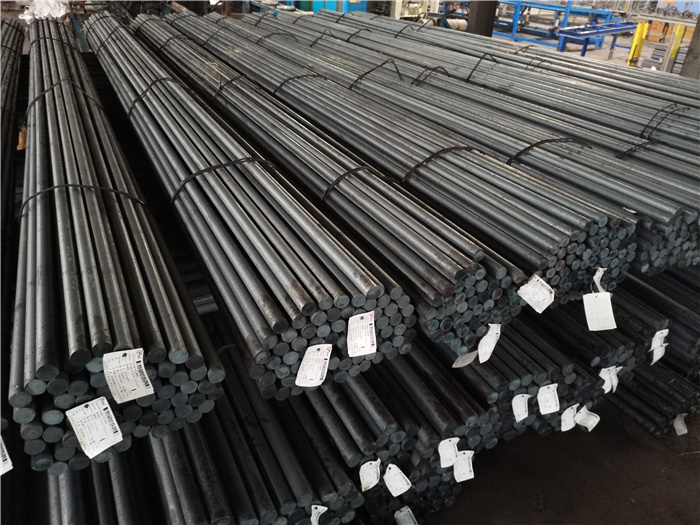

1045 tg&p precisiton steel round bar is 1045 turned, centerless ground and polished steel round bar which is used to produce 1045 tg&p steel shafts. It has good mechanical properties, precision size and bright surface. The technical data:

Diameter toelrance: 0.02mm

Straightness: 0.5mm/m

Surface roughtness: 0.4um

1045 steel round bar other specification is as below:

1. 1045 steel chemical compisition:

	C	Si	Mn	P	S
1.1191/C45E/CK45	0.42～0.50	≤0.40	0.50～0.80	≤0.035	≤0.035
1045	0.43～0.50	/	0.60～0.90	≤0.040	≤0.050
45	0.42～0.50	0.17～0.37	0.50～0.80	≤0.035	≤0.035
080M40	0.42～0.50	≤0.40	0.50～0.80	≤0.035	≤0.035
S45C	0.42～0.48	0.15～0.35	0.60～0.90	≤0.030	≤0.030

2. 1045 steel mechanical properties:

Tensile Strength: 600MPa min
Yield Strength: 400MPa min
Elongation: 16% min
Reduction of area: 40% min
Hardness: 160 - 250HB
Impact: 39J (min)

3. 1045 steel bar dimensions:

1045 Steel Round Bar: Ø10mm to 310mm
1045 Steel square bar: 20mm*20mm to 100*100mm
1045 Steel Flat bar: (6-80)mm*(20-100)mm
1045 steel Hexagonal bar: S16 - S100

4. C45E steel bar delivery condition:

1045 hot rolled steel bar
1045 cold drawn steel bar
1045 quenched and tempered steel bar
1045 cold drawn and quenched & tempered steel bar
1045 annealed steel bar
1045 normalized steel bar
1045 peeled steel bar
1045 centerless ground and polished steel bar
