Ultrasonic water tank level meter and water level gauge for Water treatment plant1
3 year ago
Product overview

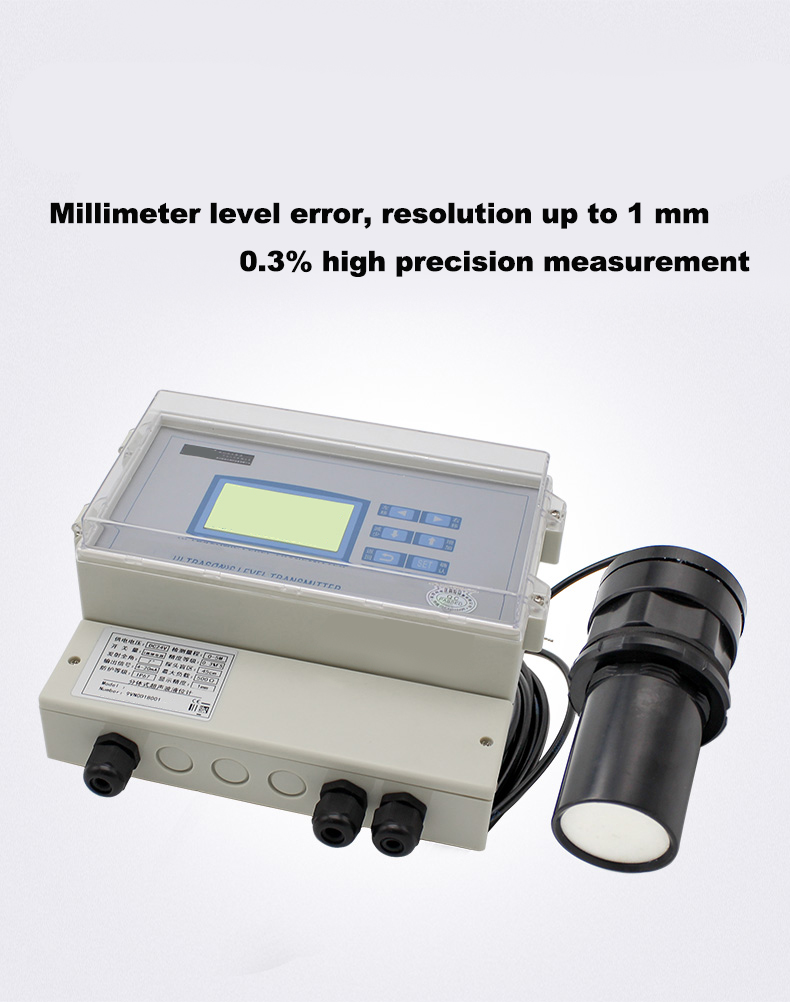

WPU-01 Ultrasonic Level Transmitter is a non-contact highly reliable and cost-effective material level measuring instrument which is easily installedand maintained. It can meet most of the material level measurement requirements without touching the medium. WPU-01 can be used to measure the height of a variety of liquid and solid materials.
|
Main parameters |
|
|
Measure range |
5m, 10m, 15m, 20m, 30m, 40m, 50m, 60m |
|
Accuracy |
0.5%-1% |
|
Resolution |
3mm or 0.1% (Take the max.) |
|
Display language |
English |
|

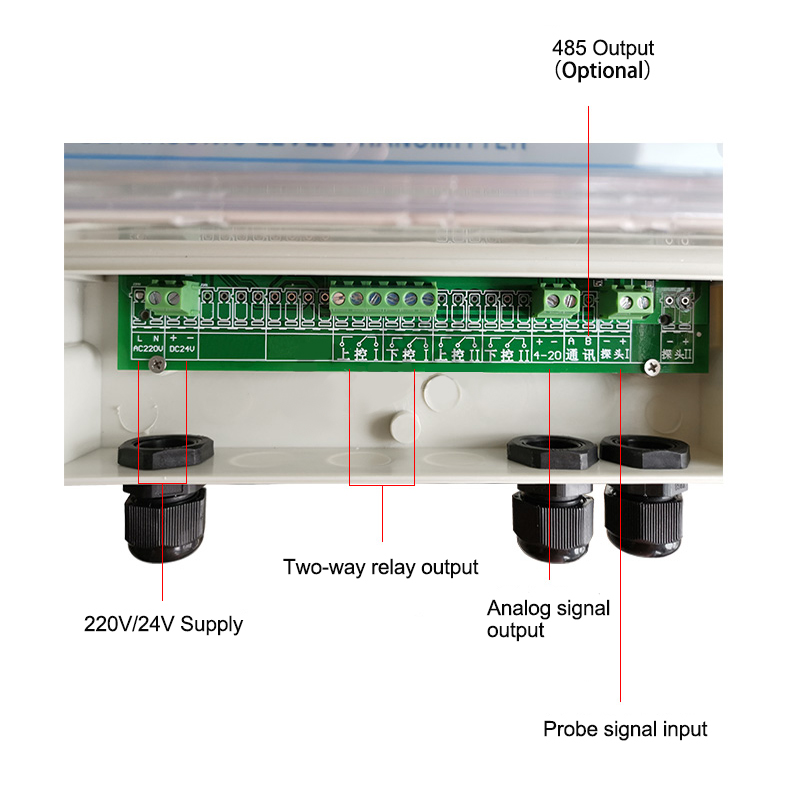

Analog output |
Four wires 4-20mA/510Ω load | Two wires 4-20mA/510Ω load |
|
Relay out |
AC250V/8A or DV30/5A |
|
Power supply |
24V DC or 220V AC±15% 50Hz |
|
Ambient temperature |
Display instrument -20℃-60℃, probe -20℃-80℃ |
|
Communication |
RS485(standard) or RS232 |
|
Ingress protection |
Display instrument IP65, probe IP68 |
|
Probe installation |
Depend on range and probe type |
