flujometro Medidor de flujo de leche for clean water1
3 year ago
Flujometro El medidor de flujo de leche digital tiene pantalla digital, fuente de alimentación de 24VDC o 220V AC, con salidas digitales, 4-20mA o salida de pulsos, posible indicador remoto o integral. Opción con protocolo HART, PROFIBUS-DP, también disponible con comunicación RS485, MODBUS.
Product details
|
Medium |
Water, sewage water, acid, alkali etc. |
|
Diameter |
DN300~DN3000mm |
|
Accuracy |
±2.5% |
|
Temp. range |
-20~+150℃ |
|
Pressure |
1.6 MPa |
|
Flow rate |
0.5~6m/s |
|
Straight pipe required |
Up stream≥5DN, down stream≥3DN |
|
Electrode |
316L,Hastelloy C(HC), Titanium(Ti), Tantalum(Ta),Platinum(Pt) |
|
Installation way |
Without a ball valve or with a ball valve |
|
Body material |
Stainless steel |
|
Power supply |
220VAC/24VDC/Lithium battery |
|
Signal output |
Pulse output, 4~20mA |
|
Communication |
RS485,Hart, GPRS etc. |
|
Explosion proof |
No |
|
Protection class |
IP65(compact type), IP68(remote type) |
|
Working environment |
Temp. Range: -20~+60℃, humidity: 5%~90% |
Introduction

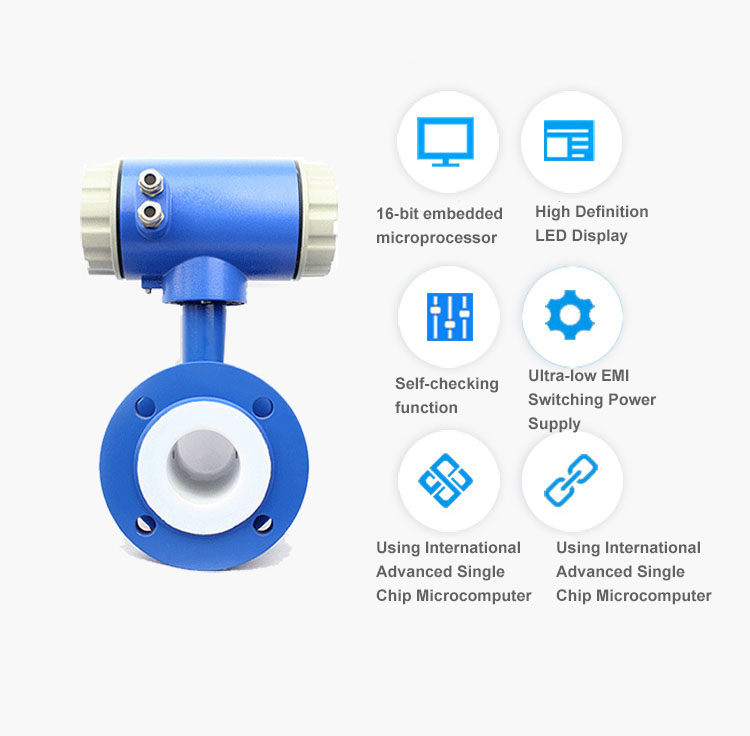

Intelligent electromagnetic flow meter is hallmarked by its high performance and reliability based on successful, field-proven technology. It is being widely used in industries such as petroleum, chemical engineering, iron and steel, food, electricpower, paper making, water treatment, petrochemical, medicine etc.
Features- Measurement depends on fluid density, humidity, temperature, pressure and conductivity.
- There is no obstructive in the conduit and no pressure drop, and the straight pipe required is relatively short.
- The sensor is equipped with the advanced processing technology that provides excellent immunity to negative pressure.
- LCD display of the converter makes it easy to read during daylight and in darkness.
- Parameters can be set up using infrared touch nubs no need to open the cover of the converter.
- Automatic alarm functions for selfdiagnosis, empty load test, high and low limit of flow, two-stage flow value, etc.
- It is applicable not only to general process, but also in tough applications such as mining, papermaking, pastry, etc.
- High pressure sensor with PFA liner is resistant to high pressure and negative pressure, and available to chemistry and corrosive solution.
