The fully enclosed aluminum alloy design of this industrial computer act the part of dust proof, anti-corrosion, shock proof and high temperature resistance. As a mini pc, it saves space and can be placed horizontally or vertically, giving you the best placement options. This portable mini pc with Intel Celeron J1800, N2815, N2930, Pentium 2900, low power consumption, good stability, not only can be used in industrial, but also in home, office, education, etc.

Fanless mini computer can run 24/7 to meet the operational needs of various commercial and industrial automation equipment. On the other hand, J1900 mini pc based on fanless design,it can run more stably and reliably in terminals, multimedia and other industrial applications to meet a variety of needs in demanding environment.


Processor: Intel Celeron Processor J1800, 1M Cache, up to 2.58 GHz, 2 Core 2 threads, TDP:10W

                Intel Celeron Processor J1900, 2M Cache, up to 2.42 GHz, 4 Core 4 threads, TDP:10W

                Intel Celeron Processor N2815, 1M Cache, up to 2.13 GHz, 2 Cores 2 threads, TDP:7.5 W

                Intel Celeron Processor N2930, 2M Cache, up to 2.16 GHz, 4 Core 4 threads, TDP:7.5W

                Intel Pentium Processor J2900, 2M Cache, up to 2.67 GHz, 4 Cores 4 threads, TDP:10W

BIOS: American

Display: GPU: Intel HD Graphics

            VGA: Max Resolution 2650×1600@60Hz, HDMI: Max Resolution 1920×1080@60Hz

            Dual display: VGA + HDMI

Memory: 2GB/4GB/8GB DDR3L 1066/1333 1.35V, 1*204-Pins SO-DIMM

Maximum capacity: 8G

Hard Disk: SSD:1 * Full Height mSATA socket, HDD:1 * SATA 2.5" HDD

Support OS: Win10/8/7/Linux/ubuntu/CENTOS, etc.

Port: 3xUSB2.0, 1xUSB3.0

       2xRS232 COM

       2xRJ45 LAN

       1xVGA, 1xHD

       1xMIC, 1xSPK

Extension: 1× Half Height Size Mini PCIE

Power Requirement: DC 12V 3A/36W(AC TO DC,100~240V)

Working Environment: Operating Temperature -20-65℃

                                Storage Temperature 15℃-35℃

                                Relative Humidity 5%~95% (non-condensing)

Dimension: 133mm*125mm*40mm


mini pc windows 10

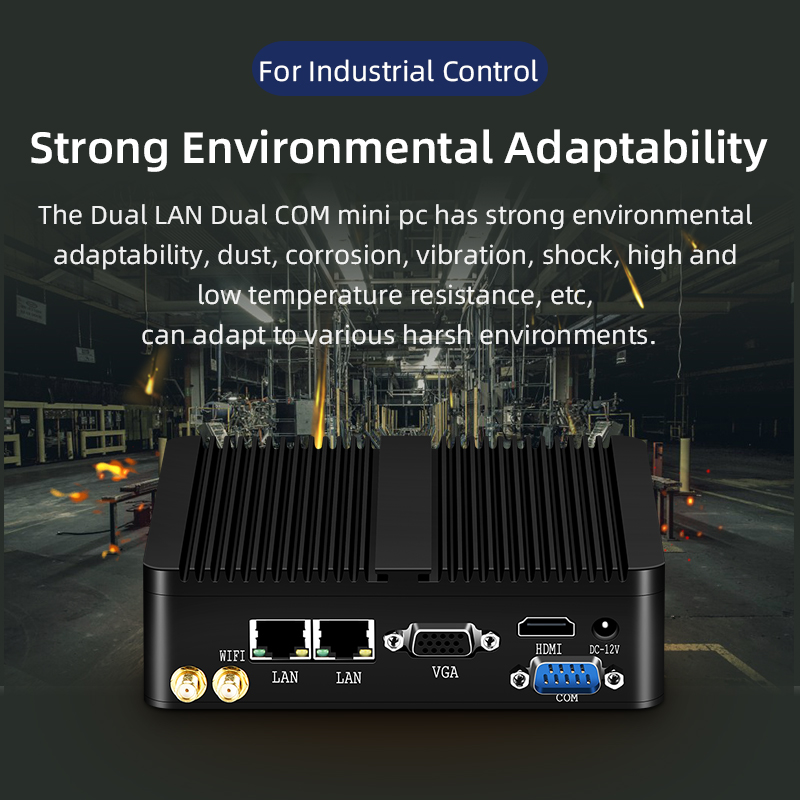

This mini pc has strong environment, dustproof, corrosionproof, shockproof, high and low temperature resistance, etc, can adapt to various harsh environments.


x86 mini pc

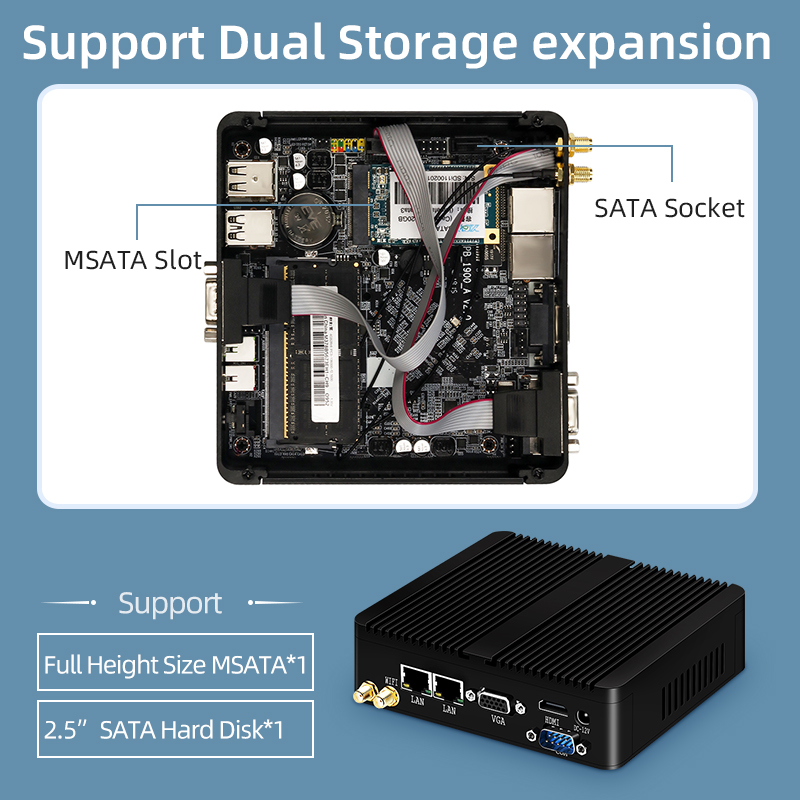

This minicomputer supports dual storage expansion, include full height size MSATA*1 and 2.5 inch SATA HDD*1.


dual lan mini pc

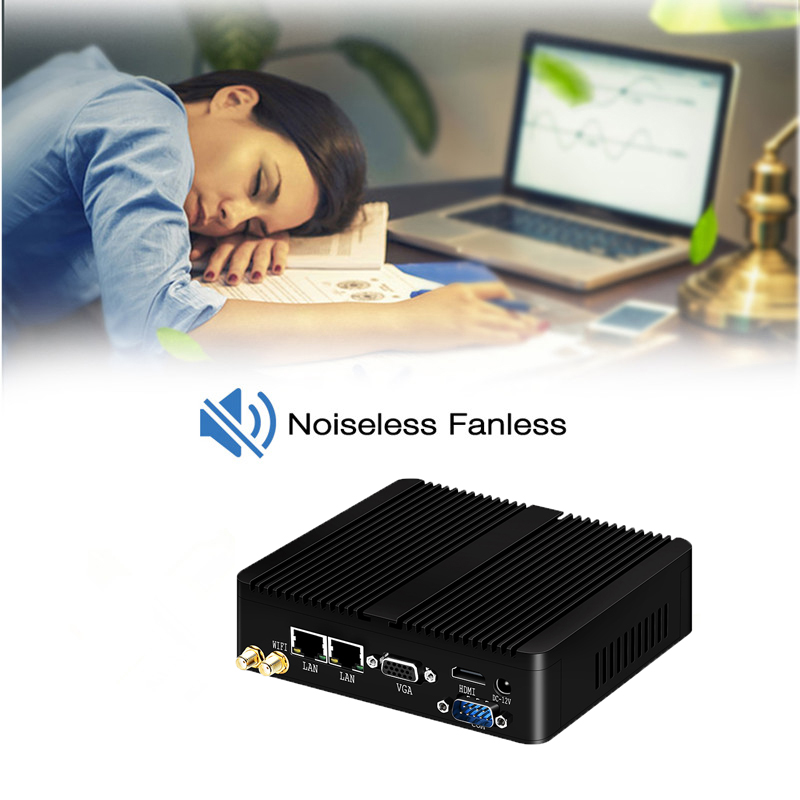

This mini pc with fanless cooling system, will give you silent environment.
