Product details

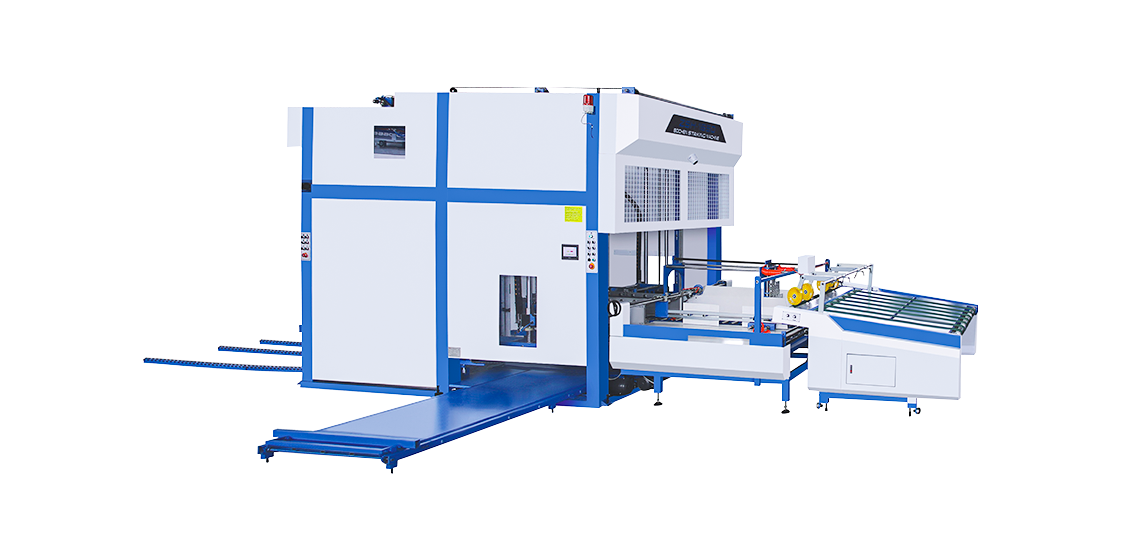

Automatic pile turning and stacking machine



Technical parameters:



Machine model

ZS-1450

ZS-1650

Max paper size

1500*1500mm

1700*1700mm

Min paper size

420*450mm

420*450mm

Power

8kw

8kw

Power supply

380V, 3phases

380V, 3phases

Production speed

12000pcs/hour

12000pcs/hour

Air pressure

0.65-0.85Mpa

0.65-0.85Mpa

Machine weight

About 4000KG

About 4000KG

Machine dimension

6780*2170*2850mm

6780*2370*2850mm





Machine specification:

This fully automatic turning and stacking machine is an accessory paper product machine, which comprises a slow dilivery table, a stack of paper table, a turning talbe and a delivery table, which are sequentially connected, where in the slow feeding table and the paper feeding unit are after the paper is stacked into a stack of paper and fed into turning table. The paper stack is turned over once and then turned to the top of the turning table by the belt turning mechanism in the turning table. And then fed by the belt conveying mechanism. After the paper separation mechanism enters the top of the receiving table. Thereby achieving full automatic paper counting, paper turning and paper stacking. Paper and greatly reduce the need for manpower and effectively improve the effciency of delivery. Reduce the manual delivery intensity.



The new flip-receiver adopts a newly designed delivery bin, which completely solves the indentation caused by the collision of paper and metal in the production process of the old flip type delivery machine.



A new belt conveying mechanism was added to replace the old paper feeding mechanism, which solved the crease caused by the paepr being overweght and pushing the paper.

ZS







Packaging & Shipping

1. The packing is confirm to export wooden case standard, strong and durable. The wooden case's thickness is generally 1 cm.

2. In order to be waterproof, we usually use bubble film to wrap machine.

3. We can handle shipping for customers too.



Our Services

We provide 12 months warranty. During warranty, we provide free technical support and free normal spare parts for replacing, except for man-made damage.We can go to your country to debug machine when you have questions can not resolve,but you must pay 100usd/day to our engineer.

Innovo look forward to long term cooperation with customers, we will make best service and aftersales service for all of our customers.

Company Information

*With 10 years' Experience

*Having ISO 9001-Certified Factory

*Strong R&D capability

*High Quality Guaranteed

*First Class Service And Best Prices

*Primary products:

    Automatic High Speed Flute Laminater

    ZXSCM Book Case Making Machine

    650UV Coating Machine

    ZX-650C Manual Paper Pasting Machine

    Box Making Machine

    Hot Melt Gluing Machine and Gluing Machine

    Table Gluing Machine

    Paper Pressing Machine.etc

    Welcome to visit our factory!



FAQ

1.What is Innovo company machine warranty?----one year.

2.Does your machine with CE certificate?----Yes.

3.What is the production time while placing order?----Arounding 7-30 days

4.What is the delivery time?----Within 7-30 days after get the payment.

5.Can Innovo company handle shipping for customers?----Yes.(Please provide us your requested seaport and we can        check the shipping charge and arrange shipping for your order)

6.Does the packing strong?----Yes, of course! All of our export packing is with strong wooden case, all are confirm to export packing standard.

7.How about after-sales service process?----When your machine has problem, contact your sales and we will solve your problem as soon as possible.

8.Are you a manufacturer?----Yes, we are a manufacturer with 10-year experience and profession.

9.What is the minimum quantity for order?----Trial order 1 pc is acceptable, we done business step by step with high quality products and excellent services.

10.Do you have stock product to sell?----Maybe, It depends on which machine you like.

11.Do you inspect the finished products?----Yes, each step of production products will be picked out inspection by QC department before  shipping.

12.What's the payment term?----T/T 30% in advance, the balance paid against the copy of B/L. We accept payment via West Union too. You can choose as you like.



We are professional manufacturer since 2005. We believe our products will provide you with great business benefits and advantage.

Our faith:

1) Society's Avail First

2) Client's Avail First

3) Employee's Avail First

4) Enterprise's Avail Second

If you have any inquiry, please don't hesitate to contact us. We will reply you at the first time as we can.
