GYFTY53-48C

5 month ago

4 0 

Guangzhou Jiqian Fiber Optic Cable Co.,ltd

9 month

Product details

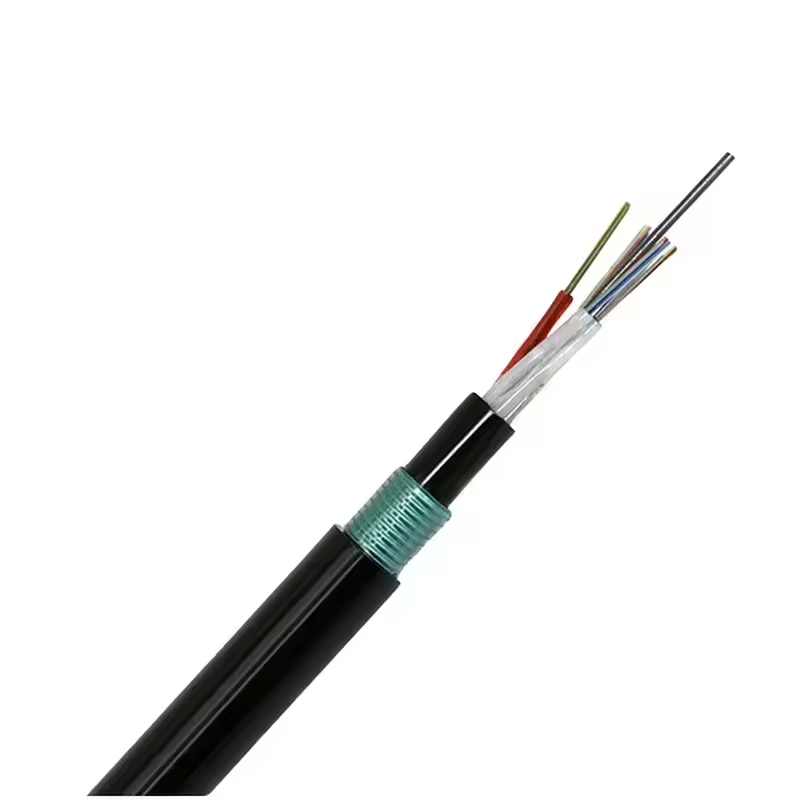

GYFTY53 Stranded Fiber Optic Cable

Our stranded loose tube armored cable is designed for direct burial fiber optic applications. A steel wire or FRP core provides strength, surrounded by stranding tubes and fillers. A compact, circular cable core is then coated with a filling compound and a thin PE inner sheath. A PSP layer follows, with a PE or LSZH outer sheath applied last. Flame retardant options are available upon request. This durable cable excels in direct buried installations.

Item		Parameters
Loose tube	Material Color	PBT Full-color spectrum
Filler	Material Color	PE Black
CSM	Material	Phosphating steel wire / FRP
Inner jacket	Material Color	MDPE Jacket
Outer armoured	Material	Plastic coated steel strip
Outer jacket	Material Color	MDPE / LSZH Black
Min. bending radius	Static Dynamic	12.5 times cable diameter 25 times cable diameter
Repeating bending	Load:150N;number of cycles:30 No obvious additional attenuation, no fiber break and no cable damage
Torsion	Load:150N; number of cycles:10; twist angle:±180° No obvious additional attenuation, no fiber break and no cable damage.

Our product serves as communication lines for overhead high-voltage transmission systems, lightning-prone areas, and long-span environments. As for quality, we utilize 100% new raw materials. In contrast, second-class cables often compromise on quality, featuring rough production and reused components.

Metallic or FRP strength member makes cable have better tensile strength.
