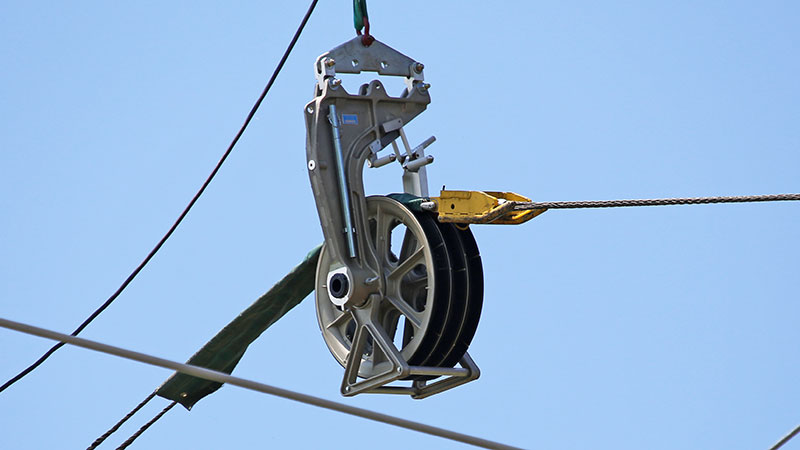

Transmission Conveyor Motorized Overhead Pulley Block
Overhead transmission block is the pay off pulley block, this pulley block with three wheels, also can be one ~five wheels, they are useful in power construction.
Technical Parameters
|
Item number |
Model |
Number of sheave |
Rated load (kN) |
Weight (kg) |
Feature |
|
10168-1 |
SHDN1160 |
1 |
60 |
65 |
Middle :MC nylon sheave |
|
10168-2 |
SHSQNK1160 |
3 |
120 |
220 |
Middle :MC nylon sheave Conductor: rubber lined MC nylon sheave |
1. Maximum suitable conductor ACSR1250
2. Dimension of block for conductor (outside diameter× root diameter × sheave width) Φ1160×Φ1000×150(mm).
3. Dimension of block for steel wire rope (outside diameter× root diameter × sheave width) Φ1160×Φ1000×130(mm).
4. The rubber lined MC nylon sheave is half lined.
To support the Transmission work, Marshine Power has Tubular Gin Pole, Come Along clamp, wire rope pulley block, nylon sheave hoisting tackle, hydraulic cable puller and tensioner ,conductor installation devices all are OEM and professionally produced per ISO 9001:2008, which are being sold to over more than 50 countries in the world. Some items like emergency restoration tower and crossing structure, we can customized, and the safety tools and accessories, are not demanded the MOQ. You can freely help you out either Tech issue or Products requirements. Pls approach us. Thanks.
