High Quality Cable Feeder
3 year ago
Electrical Tools Dcs Series Conveyer Cable Pulling Machine
Application/Features:

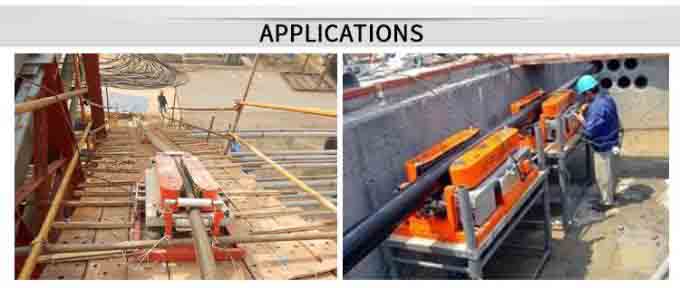

1, The machine is suitable for urban power network reconstruction and new laying of cables, especially suitable for long distance cable release, reducing labor intensity, and also improving the quality of the project.
2, The thrust of the machine is large and small, easy to be put the construction of the well, and its weight is light.
3, The machine can be pushed by single machine,and also can be connected in series with a machine, and the synchronization of several machines is controlled by a control box.
4, The conveyor wheel is made of rubber die casting, which will not damage the cable sheath, and adjust the center distance according to the external diameter of the cable.
Technical Parameters
|
Item number |
Model |
Motor Power (KW) |
Clamping force (KN) |
Pull Force (KN) |
Conveying speed (M/MIN) |
Outline size (MM) |
Diameter of cable (MM) |
Supply Voltage (V) |
Weight (KG) |
|
21103 |
DCS-5 |
1.1*2 |
≤2.7 |
7 |
9 |
950*500*400 |
30-180 |
380 |
150 |
|
21105 |
DCS-8B |
1.1*2 |
≤2.7 |
9 |
6 |
1000*530*400 |
30-200 |
380 |
195 |
To support the Transmission work, Marshine Power has Tubular Gin Pole, Come Along clamp, wire rope pulley block, nylon sheave hoisting tackle, hydraulic cable puller and tensioner ,conductor installation devices all are OEM and professionally produced per ISO 9001:2008, which are being sold to over more than 50 countries in the world. Some items like emergency restoration tower and crossing structure, we can customized, and the safety tools and accessories, are not demanded the MOQ. You can freely help you out either Tech issue or Products requirements. Pls approach us. Thanks.
