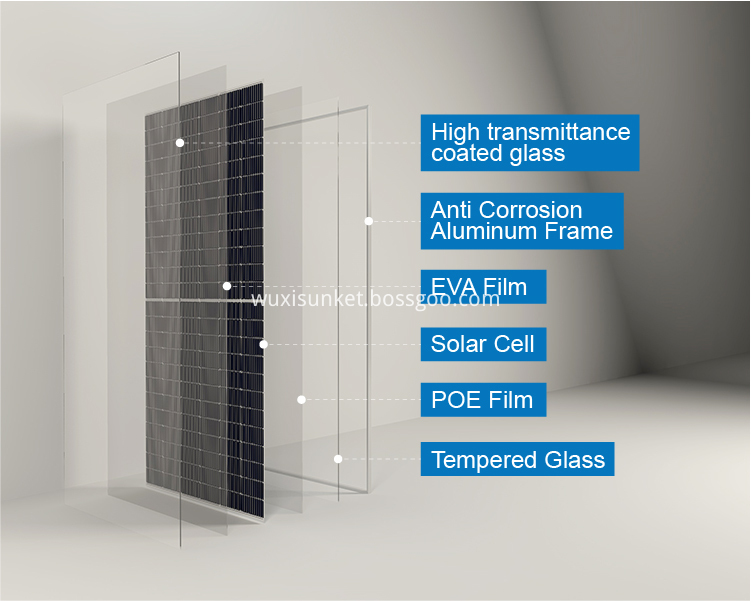

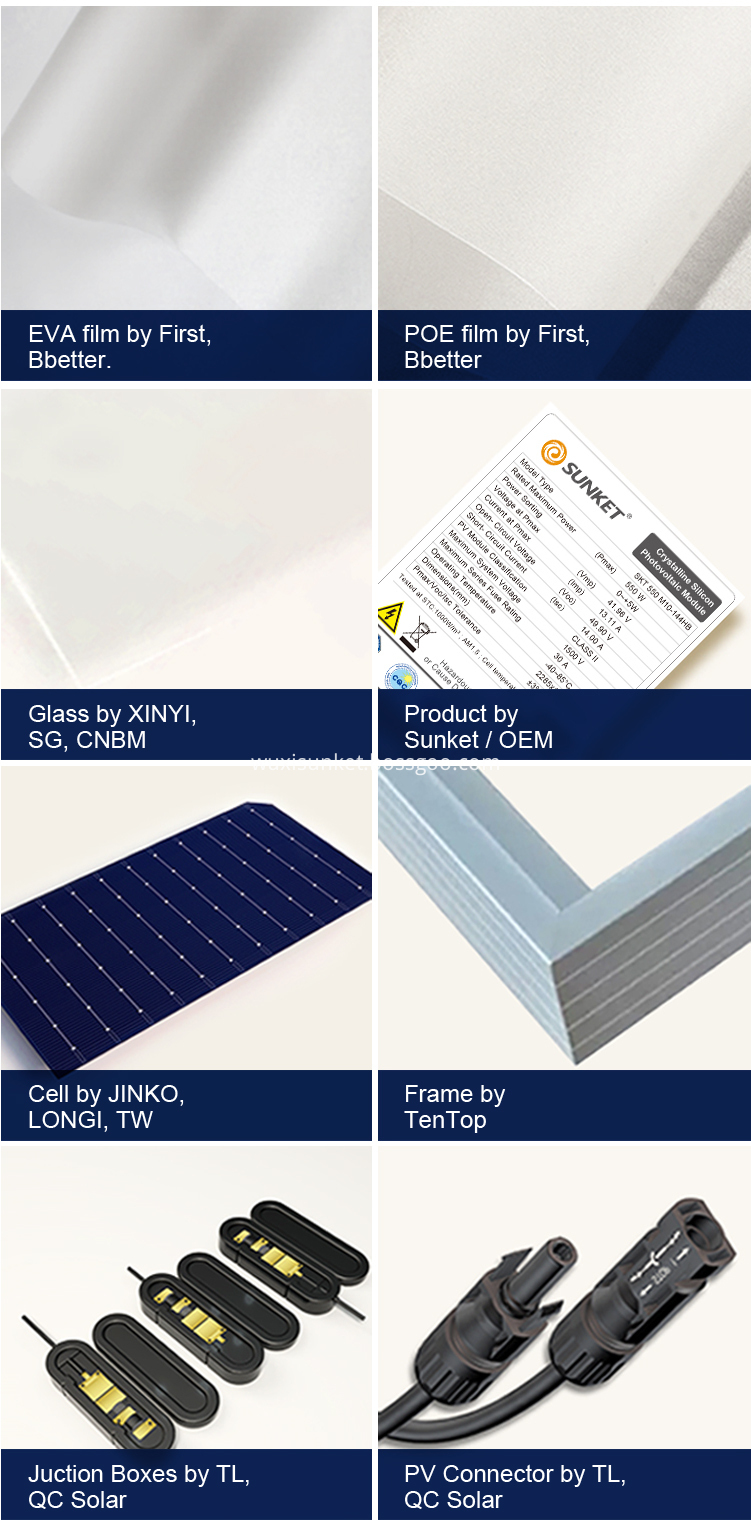

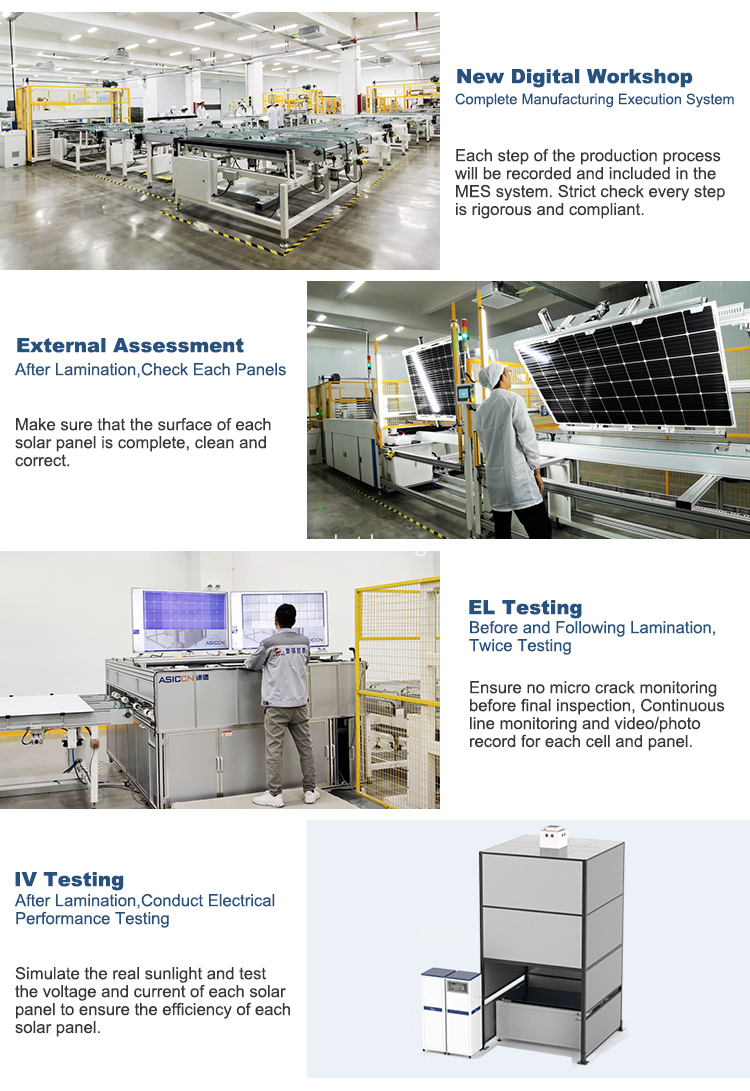

530W-550W mono silicon solar panel is maked by using high-efficiency 182mm, half-cut solar cells, with 10 busbars. All raw materials are Tie1, like JA solar cells, FIRST EVA film and so on with 12years quality warranty and 25years power warranty. It has lots of advantages as below than other panels: Higher power output, better temperature coefficient, less occlusion loss, stronger mechanical performance, excellent performance in low-light environments, 100% inspection to guarantee the reliability of solar systems.
|
Module
|
SKT 530~550 M10-144HB
|
|
|
|
|
||||
|
Rated Power-Pm (W)
|
530
|
535
|
540
|
545
|
550
|
||||
|
open-circuit Voltage-Voc(V)
|
49.30
|
49.45
|
49.60
|
49.75
|
49.90
|
||||
|
short-circuit Current-Isc(A)
|
13.72
|
13.79
|
13.86
|
13.93
|
14.00
|
||||
|
Working Voltage-Vmp(V)
|
41.31
|
41.47
|
41.64
|
41.80
|
41.96
|
||||
|
Working Current-Imp(A)
|
12.83
|
12.90
|
12.97
|
13.04
|
13.11
|
||||
|
Module Efficiency (%)
|
20.5
|
20.7
|
20.9
|
21.1
|
21.3
|
||||
