Sunket 210mm soalr panel Wuxi workshop
4 year ago
China manufacturer SUNKET best solar panels, poly panels,mono panels,customized panels,solar cells, solar power system.
Mono Solar Panel
Monocrystalline solar panels usually have the highest efficiency and power capacity out of all types of solar panels. Monocrystalline panel efficiencies can range from 17% to 22%.
Because monocrystalline solar cells are made out of a single crystal of silicon, electrons are able to flow easier through the cell, which makes the PV cell efficiency higher than other types of solar panels.
The higher efficiency of monocrystalline solar panels means that they require less space to reach a given power capacity. So, monocrystalline solar panels will usually have a higher power output rating than either polycrystalline or thin film modules.
In other words, you would need less monocrystalline solar panels in your solar power system to generate the same amount of power that, say, a greater number of polycrystalline solar panels would. This makes monocrystalline solar panels ideal for people with limited roof space.
|
Moduel
|
SKT290M6-20
|
SKT300M6-20
|
SKT310M6-20
|
SKT320M6-20
|

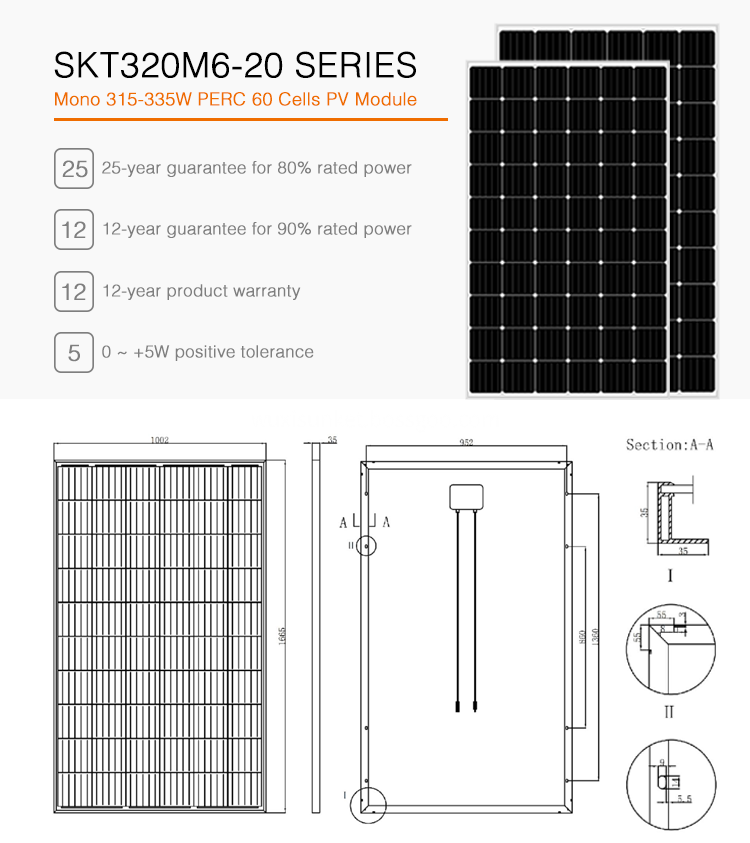

SKT330M6-20
|
|
Rated Maximum Power at STC
|
290
|
300
|
310
|
320
|
330
|
|
Open Circuit Voltage(Voc/V)
|
38.9
|
39.82
|
40.18
|
40.9
|
41.3
|
|
Maximum Power Voltage(Vmp/V)
|
32.2
|
32.51
|
32.95
|
33.4
|
33.8
|
|
Short Circuit Current(Isc/A)
|
9.66
|
9.84
|
10.08
|
10.15
|
10.34
|
|
Maximum Power Current(Imp/A)
|
9.01
|
3.23
|
9.41
|
9.59
|
9.77
|
|
Module Efficiency(%)
|
17.7
|
18.44
|
19.05
|
19.66
|
20.28
|
|
Power Tolerance
|
-0~+3%
|
||||
|
Standard Test Condition(STC)
|
Irradiance 1000W/m2,Cell Temperature 25℃,Air Mass1.5
|
||||
All raw materials are Tie1, like JA solar cells, FIRST EVA film and so on with 12years quality warranty and 25years power warranty.
Mono Solar Cell,Solar Power Cell,Silicon Solar Cell,Solar Cell Efficiency China Mono Solar Cell
About The Factory
SUNKET founded in 2012, we have supplied solar panels to customers in more than 80 countries.
Model
SKTxxxM-20(60cells)
Module per box
30pieces
Module per 40' HQ
924pieces
