Sunket 182mm Series Solar Panel
3 year ago

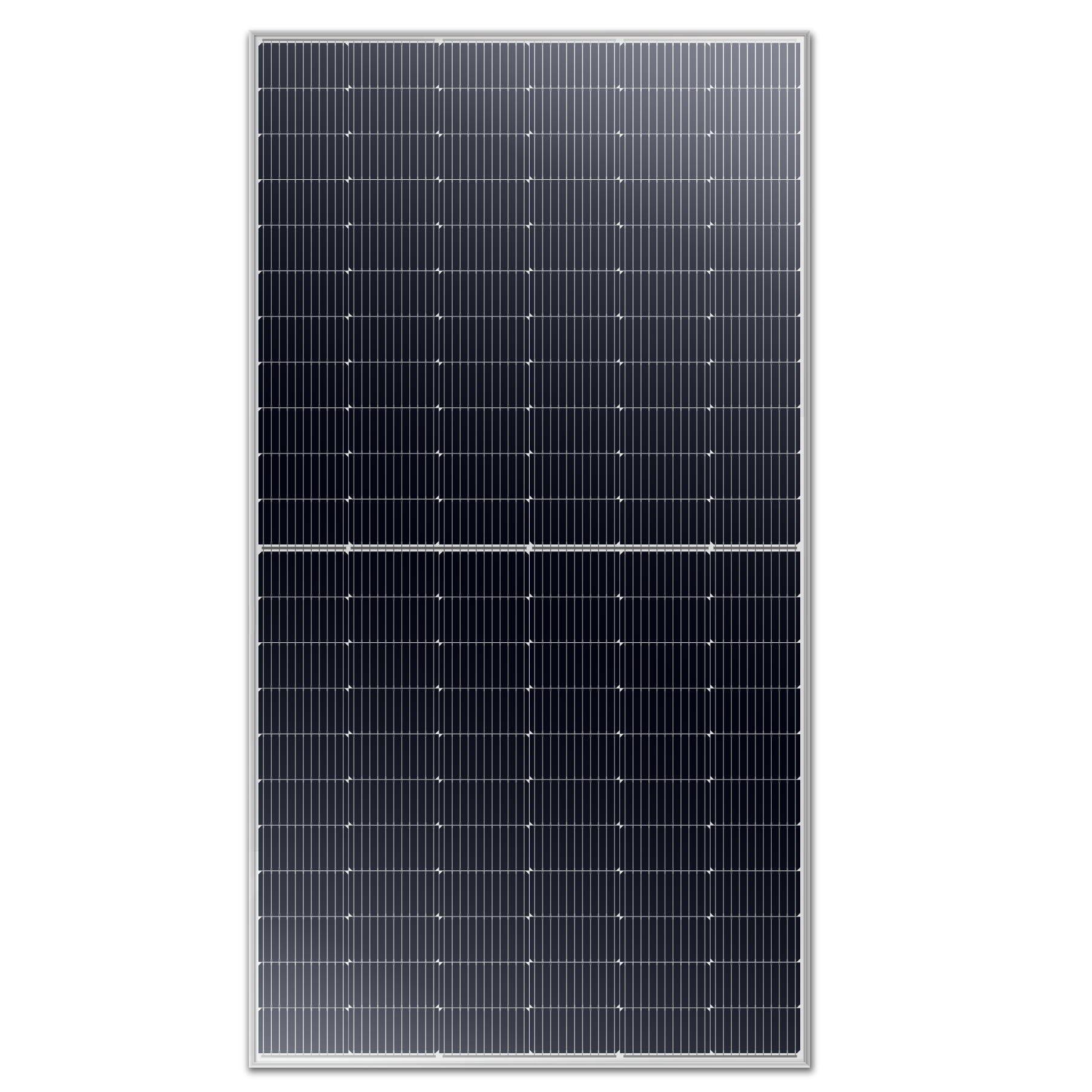

Solar Panel 495W Mono PERC Half Cut
| Mechanical Specifications | working Conditions | ||
| solar Cells | 182mm(132HC) | Maximum System Voltage(V) | 1500Vdc (IEC/UL) |
| Dimensions | 2094*1134*35mm | Maximum Series Fuse Rating (A) | 25A |
| Weight | 26.3kg | Operating Temperature | -40~+85℃ |
| Front Cover | 3.2 mm thick, tempered glass | Power Tolerance(W) | (0,+4.99) |
| back Cover | TPT(Tedlar-PET-Tedlar) | Output Cables | 4.0 mm2,cable length:1200 mm |
| Encapsulation Material | EVA(Ethylene Vlinyl acetate) | Connector | MC4 Compatible |
| Frame | Anodized aluminum alloy | Mechanical Load | 5400 Pa |
| Frame Color | Silvery | Junction Box | IP68 |
|
Module type |
SKT495M10-20 |
|
Maximum Power (Pmax) |
495W |
|
Open Circuit Voltage (Voc) |
45.46V |
|
Short Circuit Current (Isc) |
13.86A |
|
Max. Power Voltage (Vm) |
38.17V |
|
Max. Power Current (Im) |
12.97A |
|
Temperature coefficients of Isc (%) |
0.045/℃ |
|
Temperature coefficients of Voc (%) |
-0.275/℃ |
|
Temperature coefficients of Pm (%) |
-0.350/℃ |
|
Module Efficiency (%) |
≥20.85% |
|
Payment Term |
T/T |
EXW |
30% T/T in advance, paid the balance before shipment |
|
FOB |
|||
|
CFR(C&F) |
30% T/T in advance, paid the balance against copy of B/L |
||
|
CIF |
|||
|
L/C |
L/C amount above 50,000usd, we can accept L/C at sight |
||
|
West Union |
Amount lower than 5000usd |
||
|
West Union |
|||
|
Trade Assurance |
Welcome to useTrade Assurance |
||
|
Delivery Time |
3-20 working days after confirming order, detail delivery date should be decided according to production season and order quantity |
||
Modules supplier & manufacturer
offer low price
high quality Monocrystalline Panels
Monocrystalline Solar Panel Efficiency
Standard Mono Solar Panel
China Thin Solar Panels
FAQ
1. Are you a factory or trading company?
Yes, we are factory, supplying OEM/ODM service.

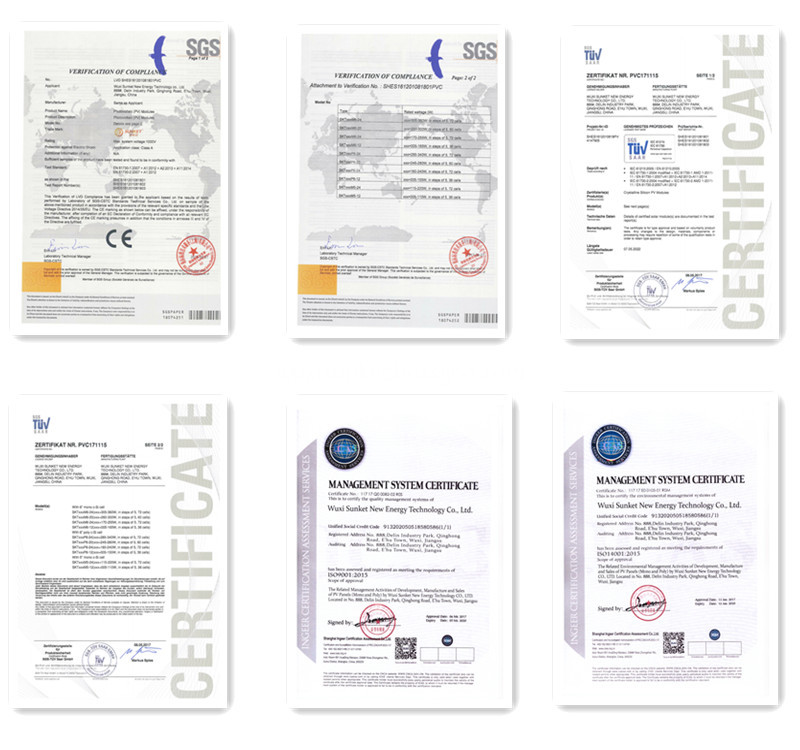

2. What certification do you have?
TUV/CQC/CE/ISO report.
3. How about you after sales-service?
24 hours online service.
4. How many day about delivery time?
1. Sample delivered in 3-5 days.
2. Order delivered in 15-20 days.
