New Design Waterproof Push Button Switches

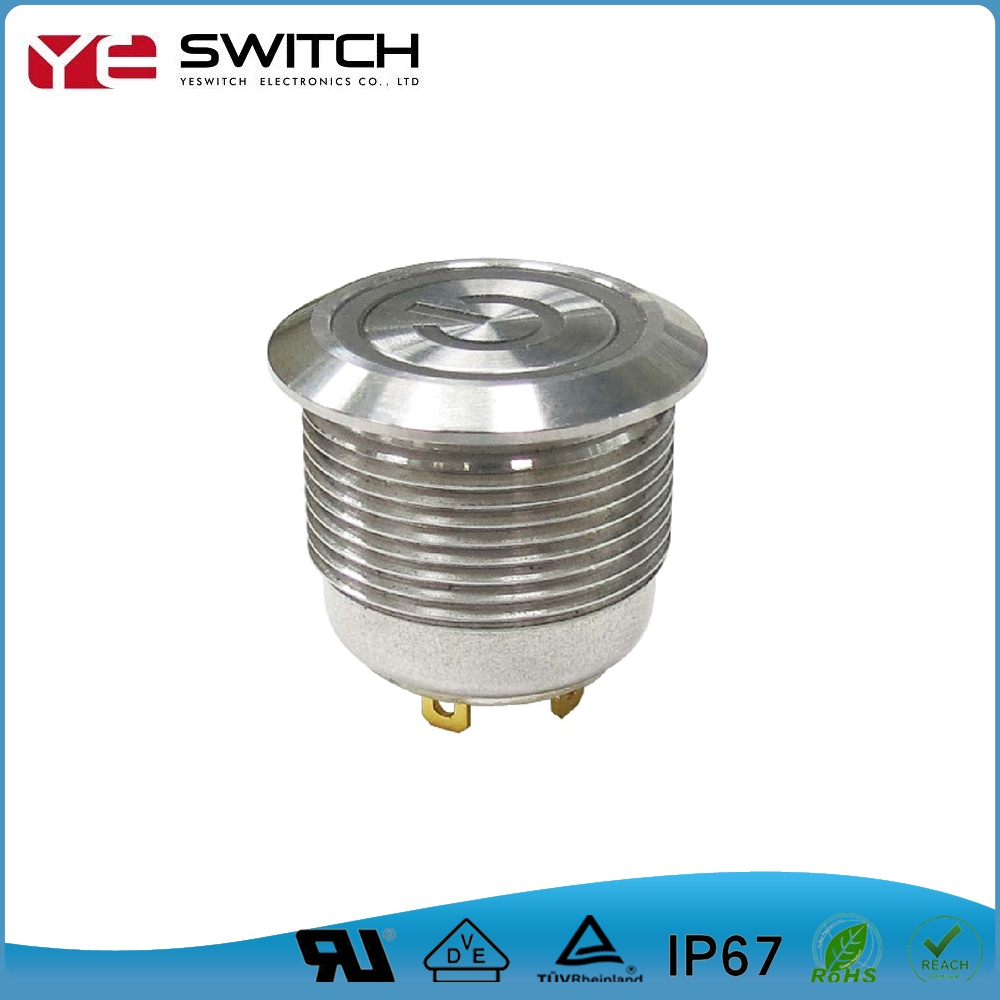

Yeswitch MPS25 series short illuminated Metal Push Button Switch offer a long life expectancy, mechanical life up to 1,000,000 cycles and electrical life up to 200,000 cycles. The rating of short illuminated 25mm Anti-vandal Switch is up to 2A/36VDC; 3A/250VAC. Besides, water resistance to IP67 ratings, and crash resistance up to IK10(stainless only), also applicable to both outdoor and underwater. Yeswitch offer multiple options of cap, such as non-LED, ring or power symbol illumination and carved pattern customized.

The terminals of MPS25 series illuminated short Metal Push Button Light Switch are available in solder lug, wire lead termination, and extra with connector. Yeswitch has been designing and developing more specifications continuously, and timely solution to customer requests and difficulties.

Applications of the Stainless Steel Push Button Switch include shared bikes, bath accessories, parking access control system, industrial control, computer peripherals, medical equipment and more.

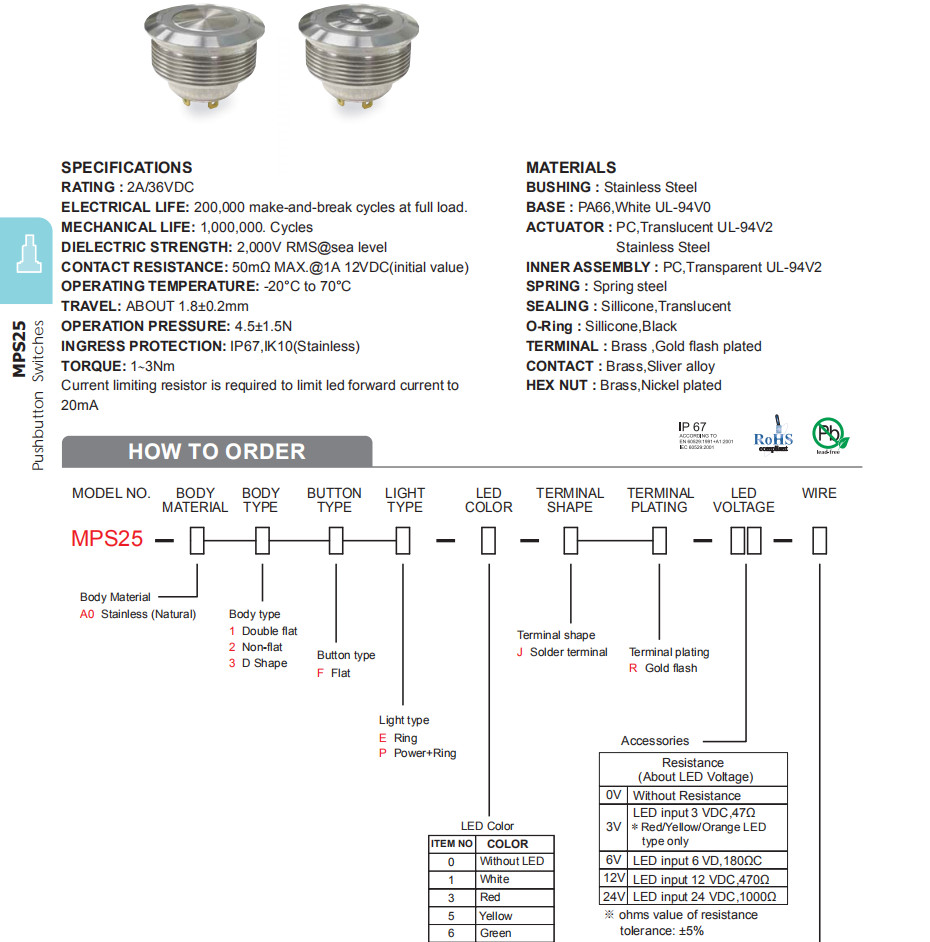

SPECIFICATIONS:

Rating : 2A/ 36VDC.

Electrical life: 200, 000 make-and-break cycles at full load.

Mechanical life: 1, 000, 000 CYCLES.

Dielectric strength: 2, 000V RMS@sea level.

Contact resistance: 50mΩ MAX.@1A 12VDC.(initial value)

Operating temperature: -20°C to 70°C.

Travel: ABOUT 1.8± 0.2mm.

Operation pressure: 4.5± 1.5N.

Ingress protection: IP67, IK10(Stainless).

Torque: 1~3Nm.

Current limiting resistor is required to limit led forward current to 20mA.

MATERIALS

BUSHING : Stainless Steel.

BASE : PA66, White UL-94V0.

ACTUATOR : PC, Translucent UL-94V2, Stainless Steel.
