Blow Suction Type Central Dust Collection Solution.mp4

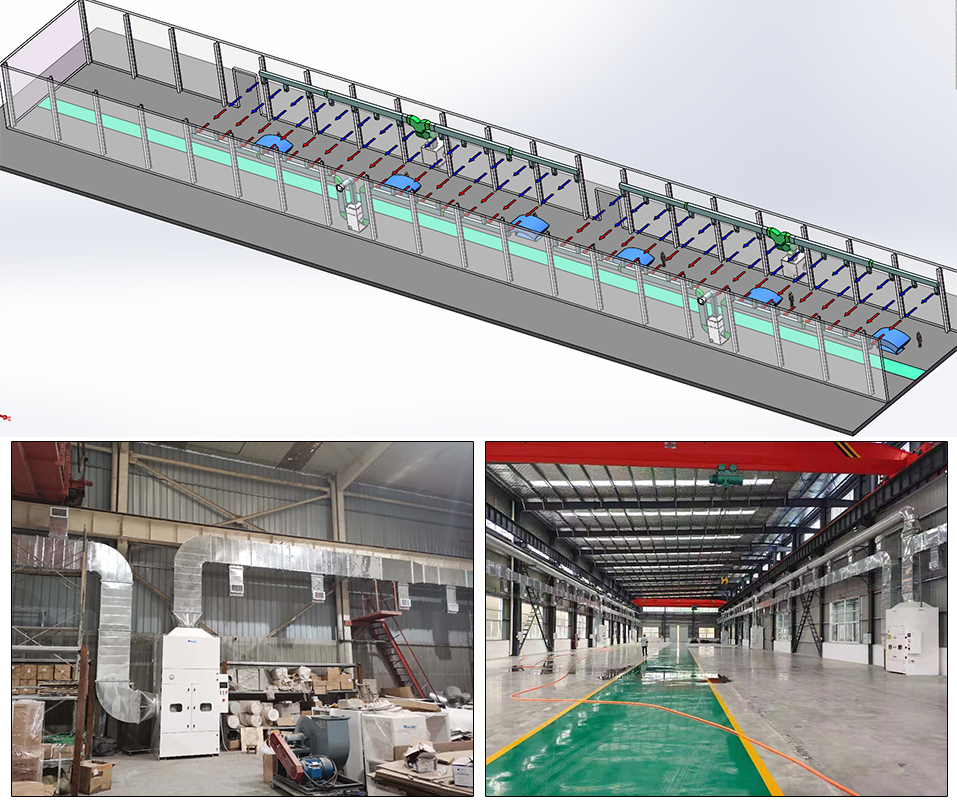

Blow-suction type Welding Fume Exhaust System is a ventilation air flow composed of blown air and inhaled air flow. Therefore, it is a dust removal method that can effectively control the spread of pollution sources. This dust removal method is installing exhaust inlets on two-span center column or single-span side column (wall) and air outlets on the opposite wall column to form a circulating air flow to drive the smoke and dust into the purification machine, consequently performing overall dust removal and purification in the workshop. This system occupies a small area and has obvious purification effect, which is suitable for the purification of smoke and smoke in more complex production workshops. This kind of Centralized Fume Extraction Systems contain Stationary Fume Extractor and ducts.

Solution Principle

Utilizing the characteristics of welding fumes floating in the air of 4~8 meters high due to heat rise and gravity, the suction pipes are installed on a column with a height of about 4 to 5 meters on one side of the workshop, which are equipped with three layers of high and low suction inlets. The fan power of the dust collector effectively collects the dust floating on the upper part of the workshop. Set up blowing outlets on the dust removal pipes on the other side of the workshop to blow the purified air to the air to accelerate the air flow and promote the welding fume to flow to the suction inlets.

Suitable Workshop Conditions

* The welding of large structural parts

* Workshop with flexible welding stations

* Complex workshop that welding fume is difficult to capture

Advantages

Simple structure and easy to operate

Energy saving: The fan speed can be automatically adjusted according to the smoke and dust concentration in different locations in the workshop to reduce energy consumption.

High purification efficiency

Reduce labor intensity and improve work efficiency
