Under the device's high negative pressure, the fume and dust through suction pipe into the purifier, with the Martian dust before enter the purifying cavity were blocked and separated by fire sand . the remaining dust flow is blocked and uniform distribution by flow plate inside the purifying cavity, in order to better purified by cartridge filter.
Dust Purifier
· Suitable for grinding, polishing and other working conditions of metal and non-metal workpiecesPerformance Description
· Integrated structure, beautiful appearance, small floor area
· Anti back suction device, fully automatic pulse back blowing and soot cleaning, make the cleaning effect more thorough
· Power status monitoring: alarm for over-voltage and under voltage in case of wrong phase disconnection to prevent damage of motor and electrical parts
· Air pressure status monitoring: low air pressure alarm to prevent incomplete ash cleaning. The differential pressure gauge can directly display the use status of the filter element, and the automatic pulse back blowing and soot cleaning will be carried out if the differential pressure is too high.
· Operation temperature monitoring: system over temperature alarm to prevent fire
Standard Configuration
· Main filter element with filter efficiency ≥ 99.9%
· Fault phase protection, overload protection, air pressure monitoring, temperature monitoring device
· Japan Toray antistatic flame retardant coated polyester fiber filter cartridge
· PLC pulse controller
· Explosion proof blower
· Explosion-proof solenoid valves
· Explosion proof electric control box
· 70L Dust drawer
· Differential pressure gauge
· Muffler
Spare Parts
· Intelligent control system
· Frequency conversion system
· IO port (remote control)

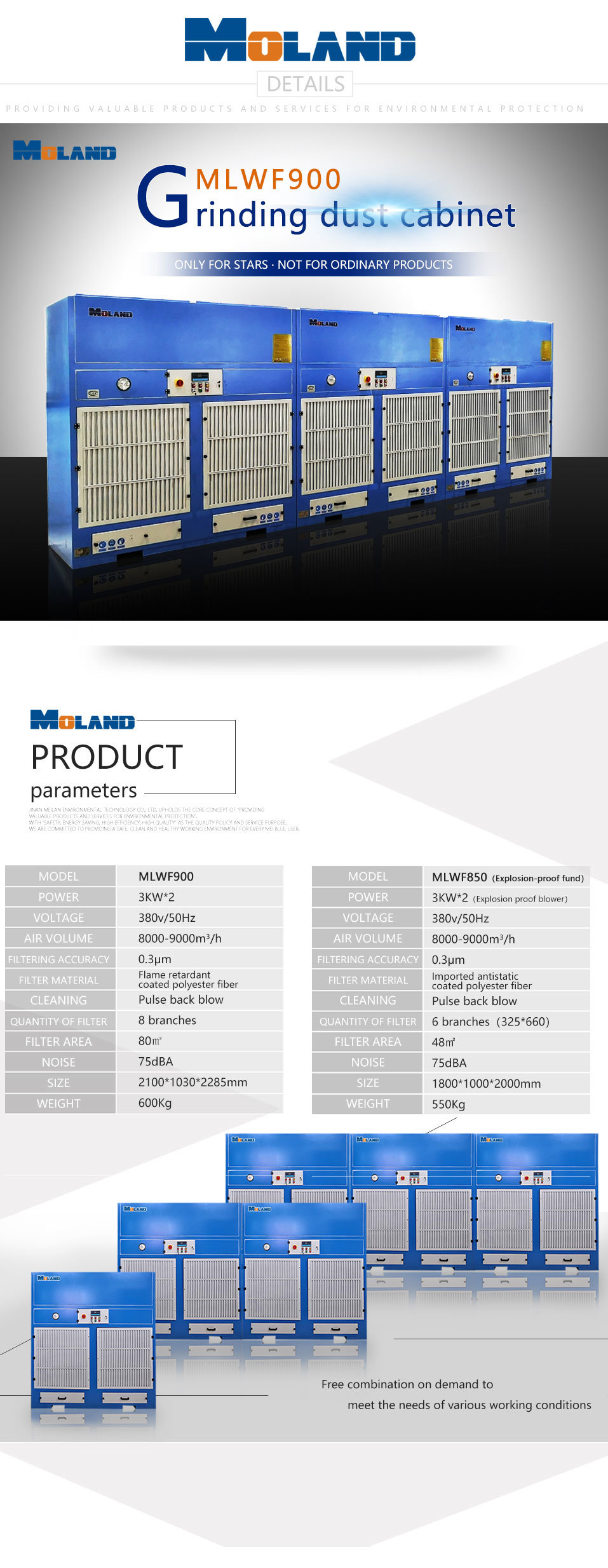

| Power | 3kw*2 |
| Voltage | 380V / 50Hz |
| Air Volume | 8000-9000m³/h |
| Accuracy | 0.3μm |
| Filter Area | 80m² |
| Cleaning | Automatic |
| Filter material | Imported PTFE filter material |
| Noise | 75dBA |
| Size | 2100×1030×2285mm |
| Weight | 600kg |
