Tractor Push Button Switch

3 month ago

3 0 

7 year

Product details

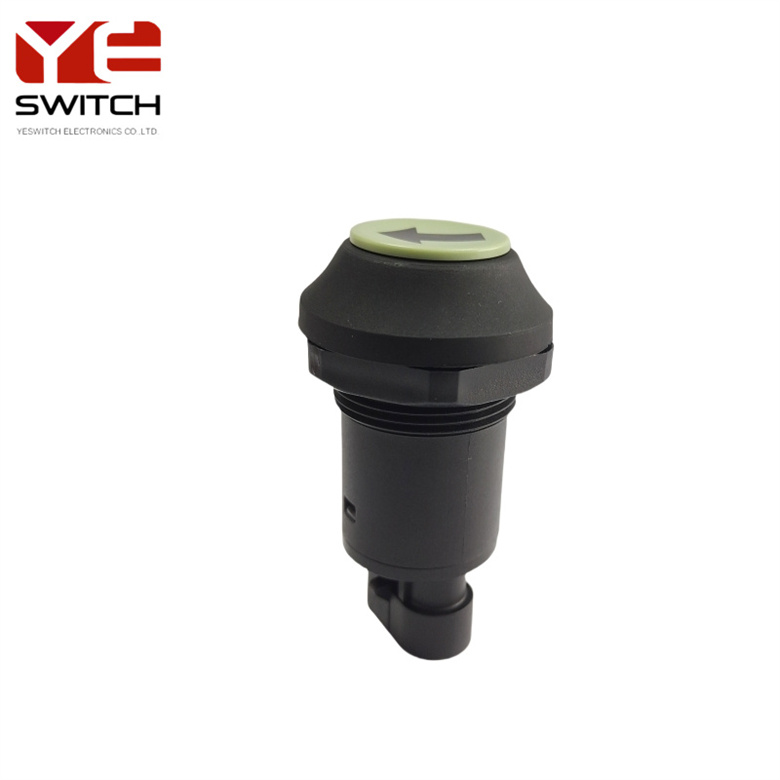

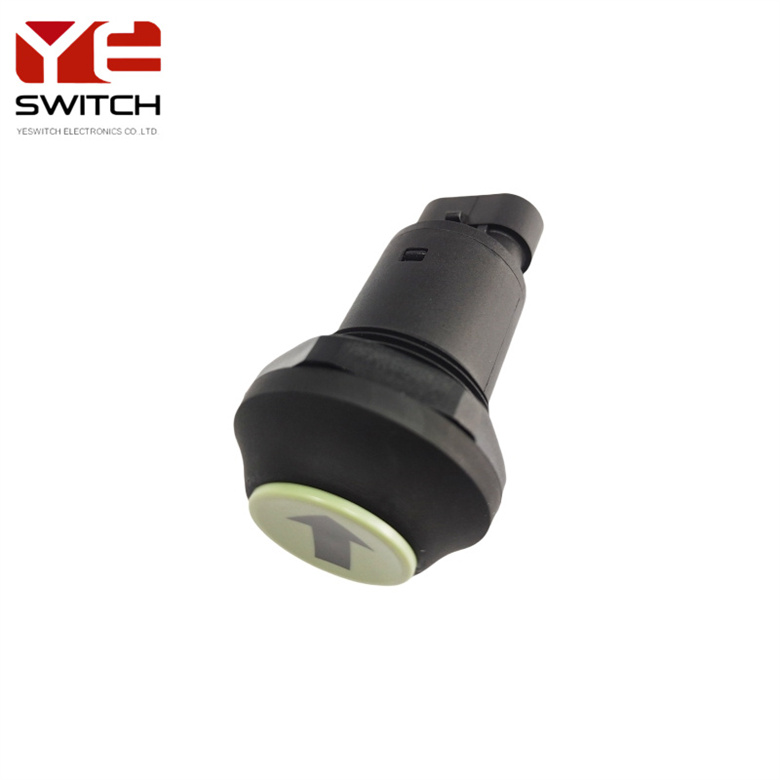

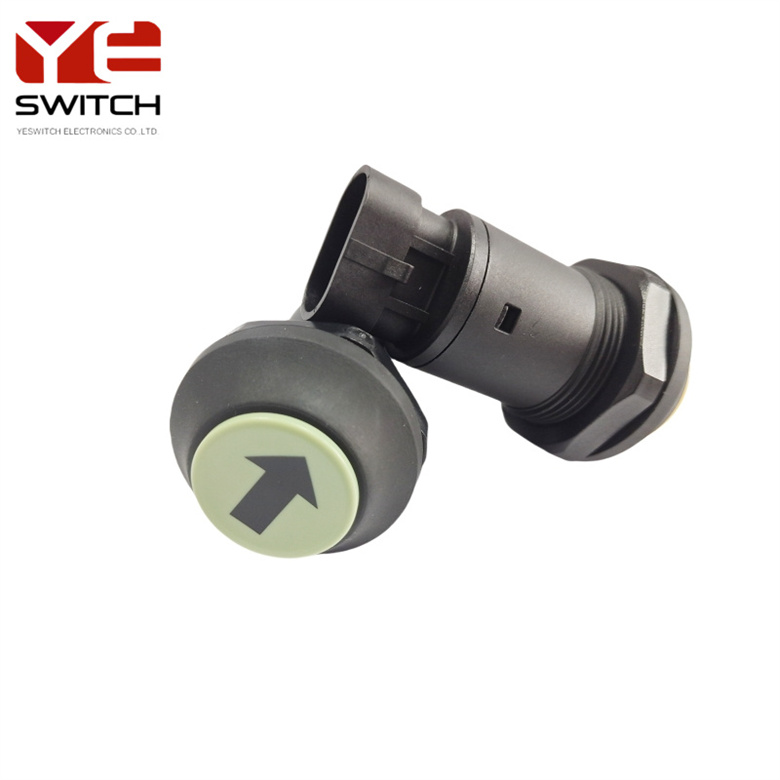

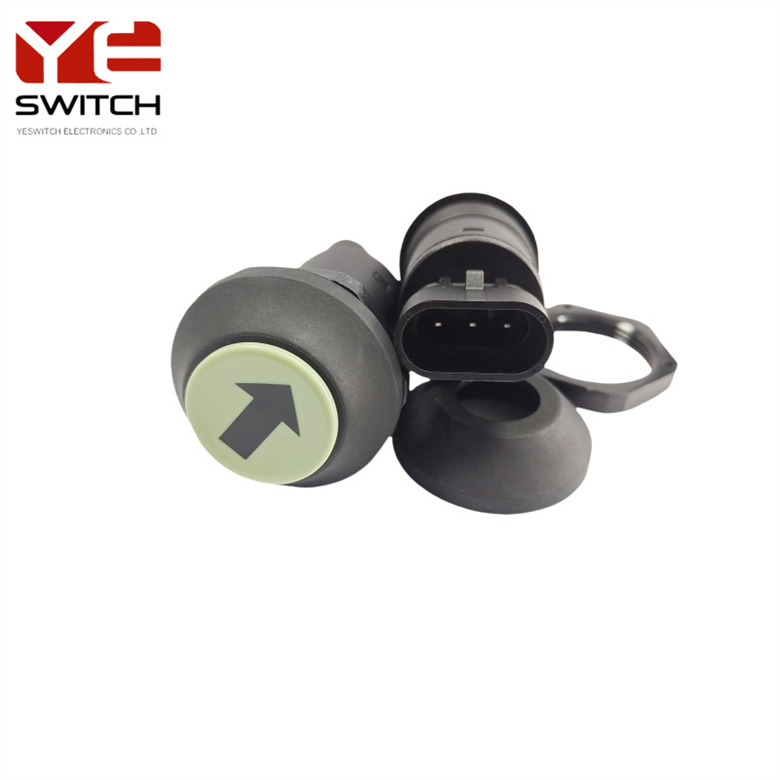

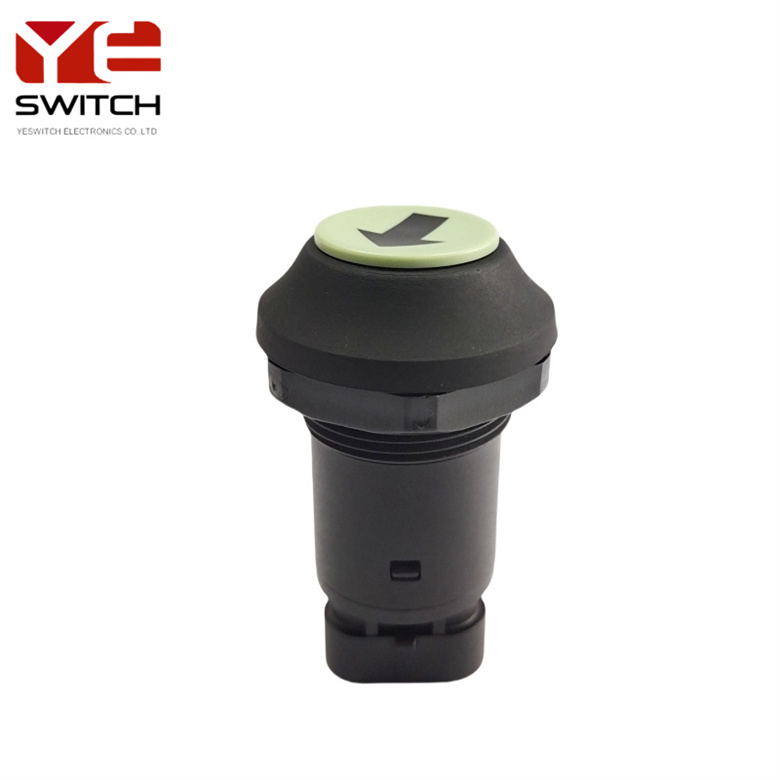

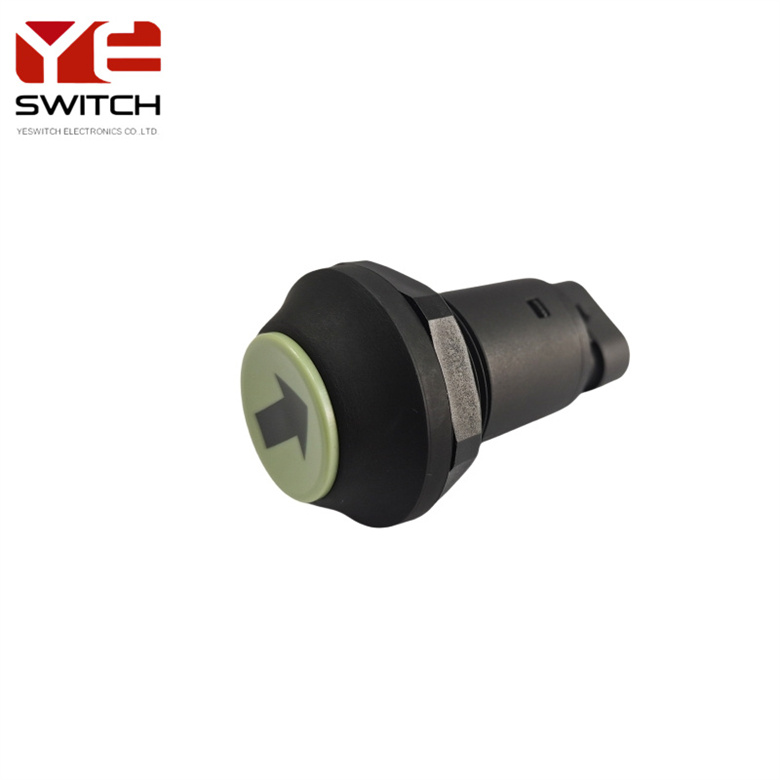

Tractor Hydraulic Push Button Switch 30mm IP67 Rating

30mm waterproof push button switches, as an important component for controlling mechanical vehicles (such as tractors, etc.), has a variety of names and functional characteristics.

1. Basic concepts and names

Basic concepts: 30mm push button switch is a switch device with a specific mounting aperture (30mm), which is usually used to control various functions of mechanical vehicles.

Other names: hydraulic switch, reed switch.

2. Functional characteristics

Control function: Mainly used to control the hydraulic function, start/stop operation and other related functions of mechanical vehicles.

Protection level: Reaching IP67 level means that the switch has excellent dustproof and waterproof performance. Specifically, the IP67 level means that the switch can completely prevent dust from entering and can maintain normal operation when briefly immersed in water.

Reset function: The waterproof push button switch has a reset function, which can automatically or manually return to the initial state after the operation is completed, ensuring the safety and stability of the equipment.

Multiple button icon options: In order to meet the needs of different users and application scenarios, 30mm momentary push button switch usually provide a variety of button icon options, such as ring, power symbol, dot, multi-point, ring with power symbol, etc. These icons help users to identify and operate the switch more intuitively.

3. Application scenarios

Agricultural machinery: such as tractors, harvesters, etc., used to control various hydraulic functions and start/stop operations.

Industrial vehicles: such as forklifts, loaders, etc., also need to control hydraulic functions and start/stop operations.

Other mechanical equipment: various mechanical equipment that need to be controlled by push button switches.

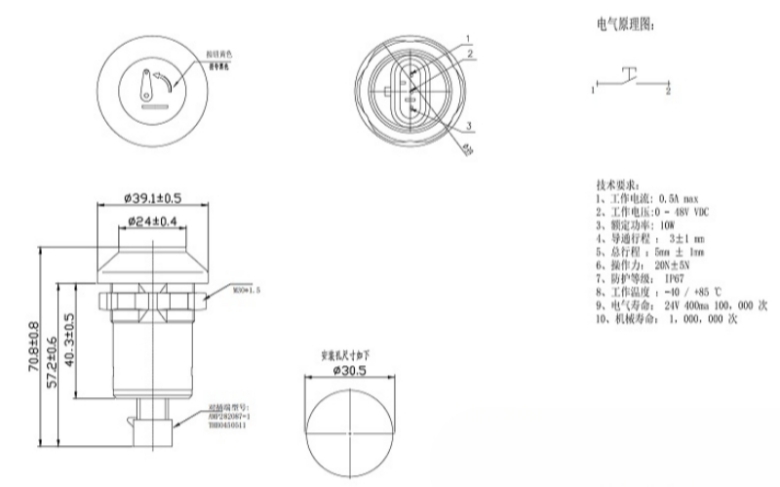

SPECIFICATION

SWITCH CURRENT:0.5A MAX
SWITCH VOLTAGE:0-48VDC
SWITCH POWER:10W/VA
CONDUCTION TRAVEL:3MM±1MM
TOTAL TRAVEL:5MM±1MM
OPERATING FORCE:20N±5N
TEMPERATURE RANGE:-40 TO 85 DEGREES
INGRESS PROTECTION:IP67
ELECTRICAL LIFE:24V 400MA 100,000 CYCLES
MECHANICAL LIFE:1,000,000 CYCLES
