PP Double wall corrugated orange pipe.mp4

Diameter Range (mm): 400, 500,600,800    SN4&SN8

Main Extruder Motor Power: 250kw+110kw

Line Space Occupation: 34mx4.8mx5.3m

Capacity: 800-1200kg/h

The extrusion line adopts a co-extrusion technology with double extruders to

produce HDPE double wall corrugated pipe from ID200mm up to ID800mm.

Total installed power: 735 KW;

Normal working power: 400 KW;

Cooling water:≤15 , 0.15-0.2 MPa, 0.5 m3 /min;

Compressed air: ≥0.5 MPa, 0.3 m3 /min;

External dimension (LXWXH): 34,000X4,800X5,320 mm

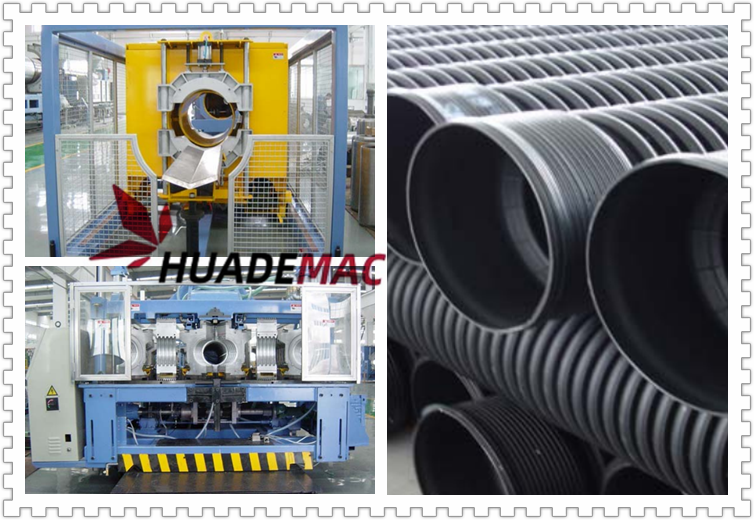

Brief Introduction PP PE double wall corrugated pipe extrusion machine :

• HDPE Double Wall Corrugated Pipe Machine/Extrusion Line with various diameter and wall thickness
• Size: 200-250-300-400--500--600--800mm.
• The plastic pipe production line mainly includes single screw extruder, pipe extrusion die, vacuum calibrating water tank, spray cooling water tank, hauling unit, cutting unit and stack unit.
• Apply  Siemens, ABB, Schneider Famous brand electric components and high quality extruder alloy screw and barrel.
• Supply technical service, formula guide and staple raw material purchase.

Features of PP PE double wall corrugated pipe extrusion line :

The production line is configured with single screw extruder and grooved feed barrel which ensures extruding in high efficiency.

It adopts vertical type forming mould with strong cooling ability, ensures stable and fast lineal speed.

Technical Data PP PE double wall corrugated pipe making machine:
