Wiring process of power supply

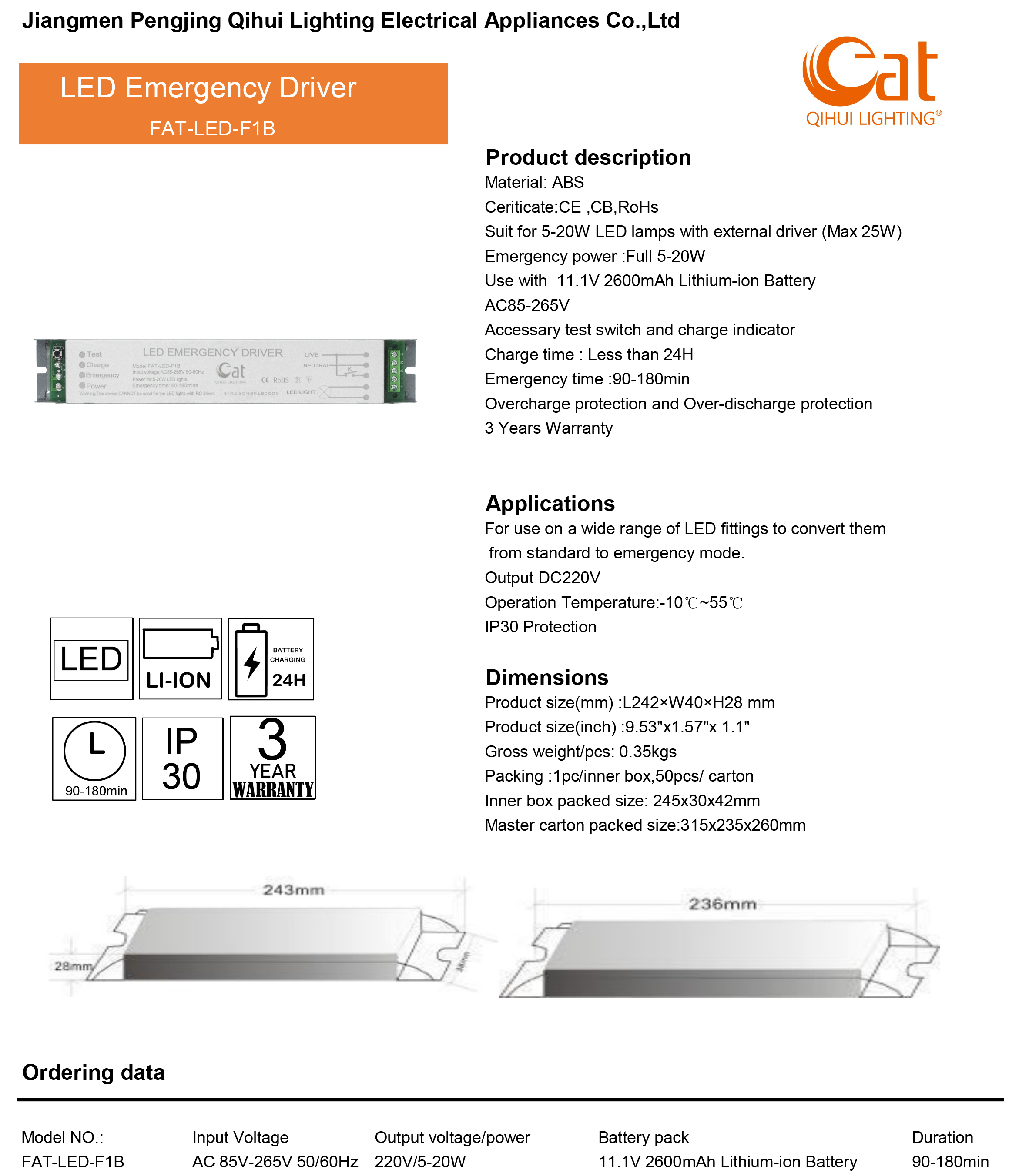

 Emergency Driver  for T8 Panel Downlight

FAT-LED-F1B applied to  T8 led Tube ,led panel ,led down light or led batten light fixture .internal emergency driver

Wide input voltage AC85-265V and DC220V for full output lumens during emergency mode .

It can be delivers 120min emergency time . constant power emergency driver.

Product Specification :

Features                                                                                                                                                                                                                                 *Compatibility: All types of led light with external led driver and power between 3W to 40W is suited to

                           use led emergency light conversion kit  under wide voltage AC85-265V range .

*Appearance: LED emergency devices is using engineering level ABS material which that so sturdy and durable .

                       small  size and light weight material so that the led emergency driver easy hide up in the ceiling .

* Battery : Led emergency backup driver equipped with rechargeable 3.7V 2200 mAh Li-ion 18650 battery and

                 cycle time mire that 500 times ,During the rechargeable emergency led driver under normal working

                 which emergency time can be maintained 120 mins. external emergency driver

*Production :Multiple protection cover the led emergency backup driver such as overload protection ,short circuit

                    protection ,wire fault connection protection and no-loading protection ,Unique self-check function in

                    LED emergency light kit ,the system automatically charges and discharges once every 30 days and every year.

*Guaranteed:  We will offer free replacement or refund ,it warranty 3 year means the emergency conversion kit in normal use .
