IP66 DC36V RGBW DMX512 LED Flood Light CP3-600mm

LED Flood Light, High Power Flood Light, Addressable Flood Light, Anti-glare LED Flood Lights, Narrow Beam Angle Flood Light, Architecture Flood Light

 Features

■ Compact rectangular form-factor outdoor high-power flood light and wall washer for architectural and landscape lightings.
■ Cree or Lumileds LEDs in wide ranges of whites, tunable whites, mono colour, RGB, RGB+W.
■ High brightness contrast level for smooth and consistent color change effect.
■ Extruded aluminum alloy body with high efficient heat dissipation fins, protective vent and clear glass diffuser.
■ Easy and flexible installation with adjustable 60° tilt and rotatable mounting base.
■ DC36V input. DMX control with auto addressing function. Rated IP66 Waterproof Flood Light.

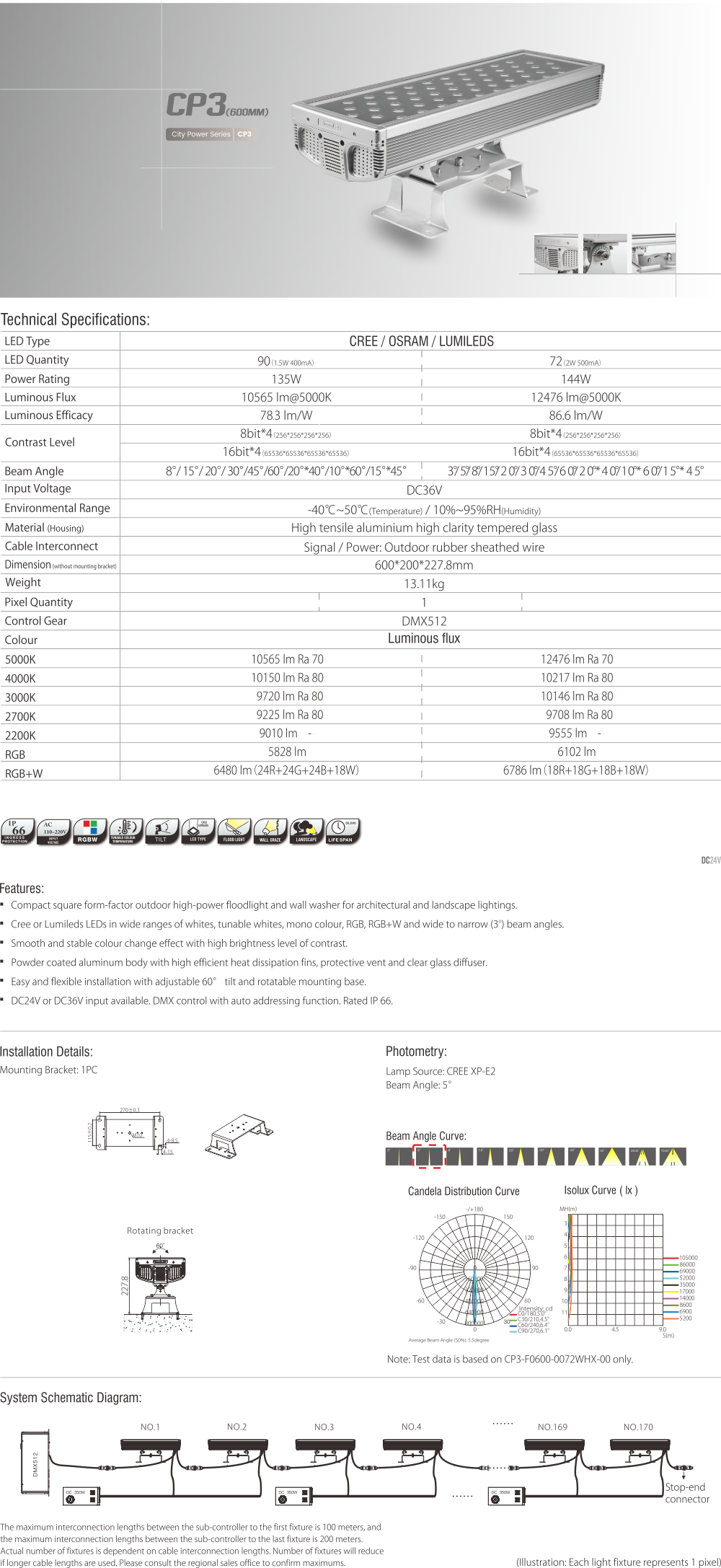

 Parameters

■ LED source:CREE/OSRAM/LUMILEDS
■ Power Rating: 135W, Input Voltage:DC36V
■ CCT:RGBW(24R+24G+24B+18W), DMX512
■ LEDs:90(1.5W 400mA) LEDs
■ Beam Angle:8°/15°/20°/30°/45°/60°/20°*40°/10°*60°/15°*45°
■ Dimension: 600*200*227.8mm(with bracket)
■ Protection: IP 66
■ Operating temperature:-40 ~ +50℃
■ Material (Housing): Aluminum +clear tempered glass diffuser
■ Cable length: 500mm with waterproof connectors
■ Cable (2 in/1 out)
■ Rotary bracket with 60D
■ Pixels:1
