48LEDs 1m DMX LED Linear Lights CV9

Linear Light, Led Linear Lighting, Contour Linear Lighting, Linear Light Fixture, RGBW LED Linear Lights, DMX Linear Light

 Features

■ Elegant slim profile high brightness linear LED luminaire for architectural and landscape lighting application.

■ Cree, Osram or Lumileds LED in whites, mono color and RBG. Viewing angle of≥120°

■ Brightness level of 256 and 16 bits contrast control for consistent and smooth color change effect.

■ Anodized extruded aluminum body, clear or frosted PC curved diffuser. Casement mounting design and on two sides of fixture body for easy,secured and safe mounting on building facade.

■ It can withstand up to 45m/sec wind load.

■ Seamless luminous lines formed by cascading several luminaires for pleasing aesthetic effect without dark spaces.

■ Weather sealed with ingress protection IP65.

■ DC24V input. DMX through PWM and constant current control.

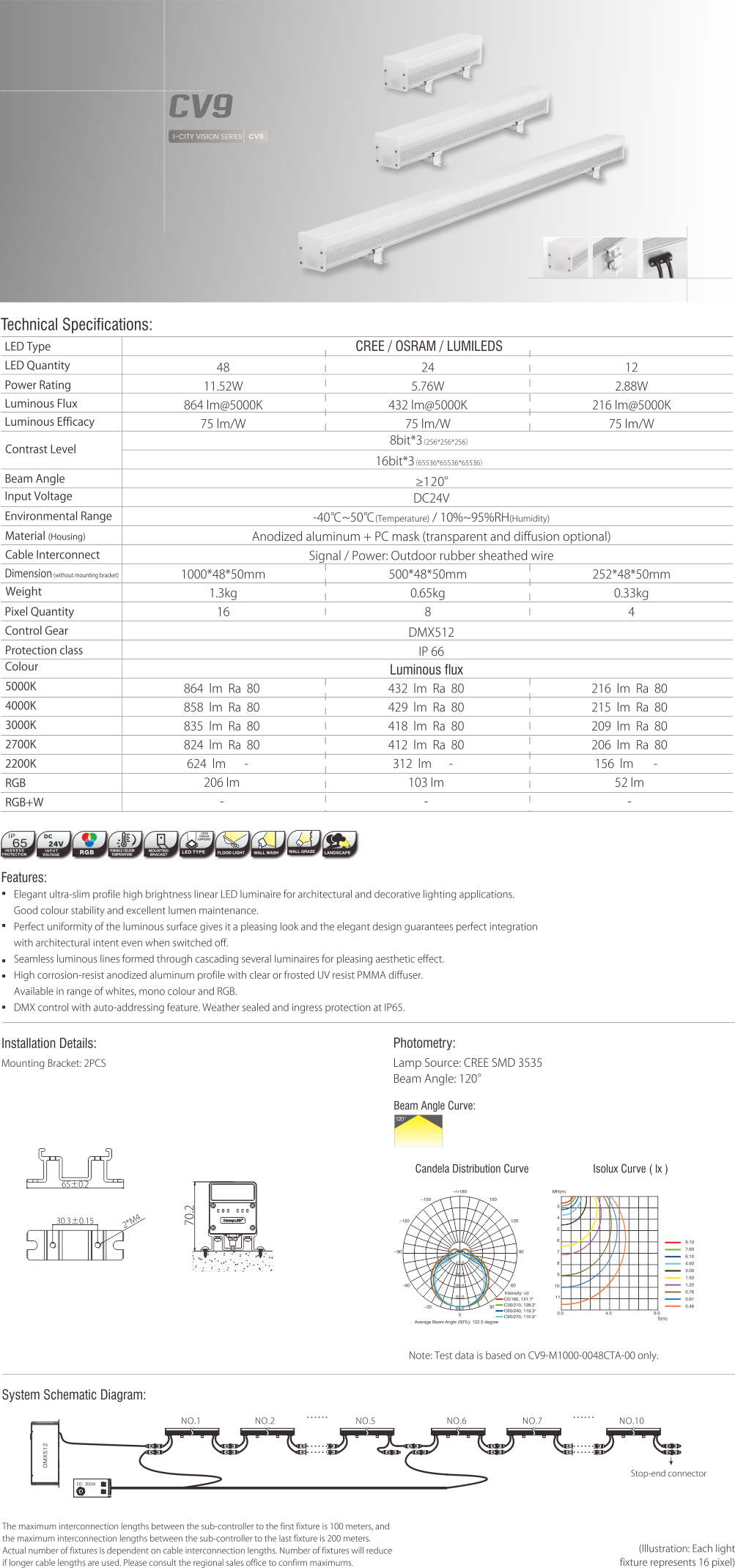

 Parameters

■ LED source:CREE/OSRAM/LUMILEDS SMD
■ Power Rating: 11.52W, Input Voltage:DC24V
■ CCT:RGB, DMX 512
■ LEDs:48 LEDs
■ Beam Angle:≥120°
■ Dimension: 1000*48*50mm
■ Protection: IP 65
■ Operating temperature:-40 ~ +50℃
■ Material (Housing): Aluminum+PC(transparent / diffuser)
■ Cable length: 500mm with waterproof connectors
■ Cable (2 in/2 out)
■ Clip spring bracket
■ Pixels:16
