16Pixels Addressable RGB LED Linear Light CV3F

Linear Light, Led Linear Lighting, Contour Linear Lighting, Linear Light Fixture, RGBW LED Linear Lights, DMX Linear Light

 Features

■ Elegant slim, flat profile high brightness linear LED luminaire that can integrated easily into architectural features for outdoor applications.

■ Choice of Cree, Orsam or Lumileds LED in range of whites, mono colour, RGB and RGBW. Viewing angle: ≥110°.

■ Anodized aluminum profile and perforated mask over clear diffuser. Weather-sealed and IP65 rated.

■ Seamless line of light when connected in cascade without dark spaces at joints.

■ Easy to mount with snap-in stainless steel brackets.

■ DC 24V input. DMX control with auto-addressing features.

■ Application: Outdoor

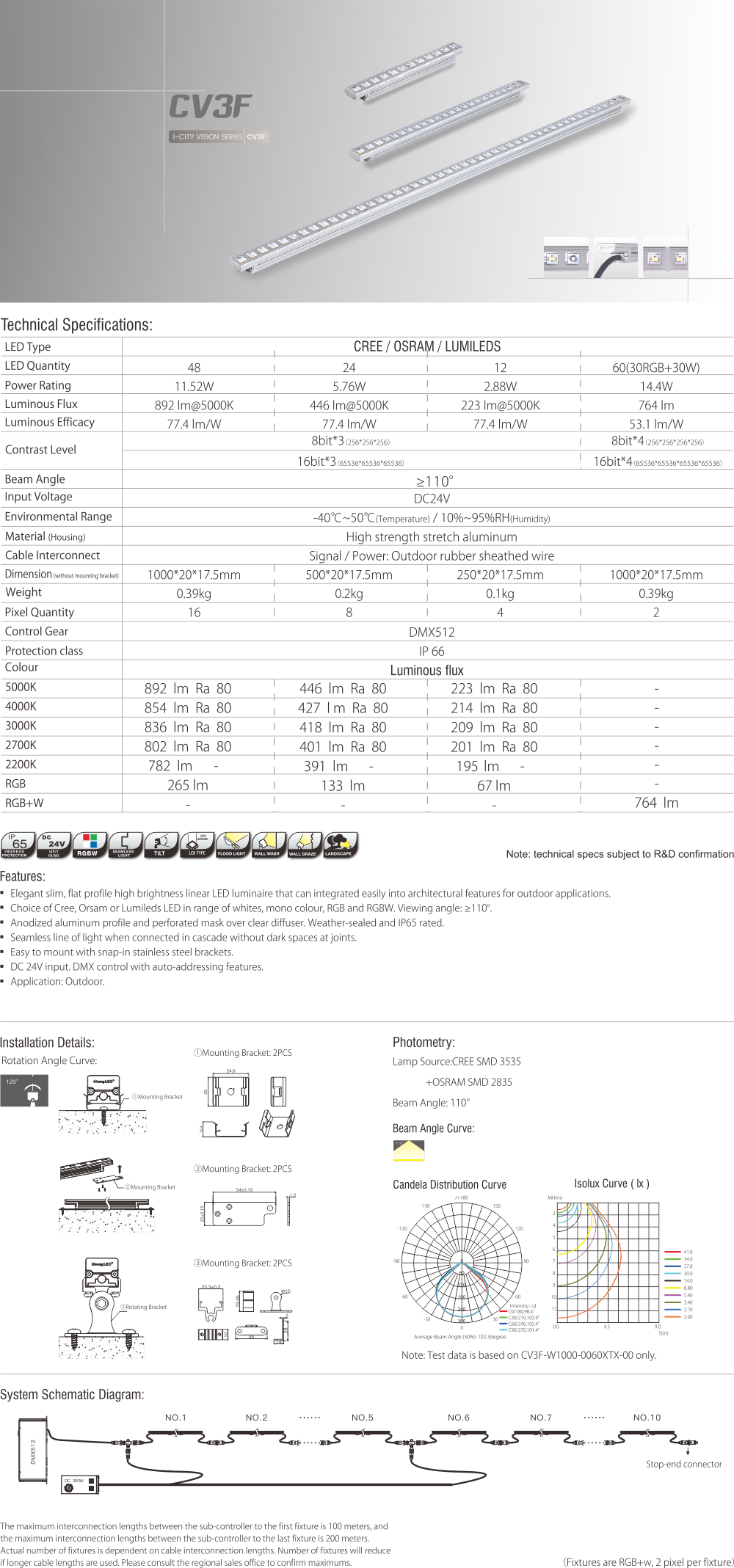

 Parameters

■ LED source:CREE/OSRAM/LUMILEDS SMD
■ Power Rating: 11.52W, Input Voltage:DC24V
■ CCT:RGB, DMX 512
■ LEDs:48 LEDs
■ Beam Angle:≥110°
■ Dimension(without bracket): 1000*20*17.5mm
■ Protection: IP 65
■ Operating temperature:-40 ~ +50℃
■ Material (Housing): Aluminum
■ Cable length: 500mm with waterproof connectors
■ Cable (1 in/1 out)
■ Rotary bracket with 120D / clip spring bracket
■ Pixels:16
