Brazed Phe for Beer Wort Cooling

Beer worting cooling technology comes to shape around the 1980s, and, with a few adjustments to its production line, is still a big hit among manufacturers. Cold side medium is 3-4℃ water from chillers while hot side, 96-98℃ beer wort. Heat tranfers from the wort into the water, making it available for the following heating up process.

Structural Characteristics

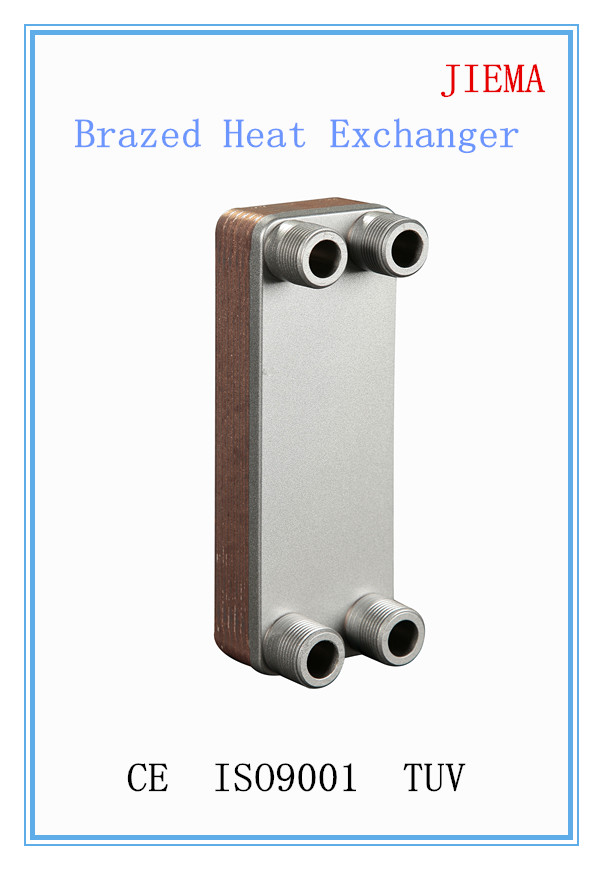

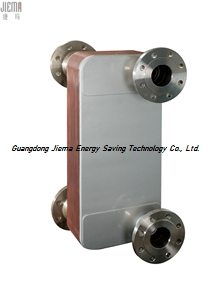

Brazed Phe for Beer Wort Cooling is formed by braze welding in vacuum braze welding furnace by using lots of herringbone corrugated stainless steel sheets (316L or 304) and pure copper (99.9%). It is also commonly applied in refrigerating, air-conditioning system and waste heat recovery system.

Product Features of Brazed Plate Type Heat Exchanger

◎Good sealing performance: Braze welding with pure copper

◎Resistance to high pressure: 4.5Mpa at the most

◎Wide range of applicable temperature: -195°C-180°C

◎High heat transfer efficiency: 7000W/㎡.K at the most

◎Usability to heat transfer with small temperature difference:

The minimum temperature difference is 1.0°C.

◎Compact structure, small volume, light weight and less quantity of carried liquid

Technical Data of Brazed Type Heat Exchanger

(Please provide the following working parameters, we will provide you with professional design and selection suggestions)

About Our Company

◎10 years experience in Brazed Type Heat Exchanger and Pressure Vessel

◎2 production bases in Guangzhou and Hubei

◎5 Export markets of Brazed Phe including Asia,Mideast,Africa,South America,America

◎Strong technician team of 5 senior engineers who have over 15 years experience in the study of Brazed Plate Type Heat Exchanger

FAQ

1. Do you have your own factory to make Brazed Phe Exchanger or you are just a trading company?

We are direct manufacturer leader in China with one manufacturing center located in Guangzhou City, another in Hubei Province. On a side note, we can make Brazed Plate Type Heat Exchanger as per our customers’ requests.

2. What's the difference between plate type heat exchanger and brazed plate type heat exchanger?

Apart from their physical appearance, Brazed Phe Exchanger and plate type heat exchanger are different in terms of distinct working environments such as operating pressure and temperature. For more details regarding model selection, kindly contact us through email.
