grinding table
5 year ago

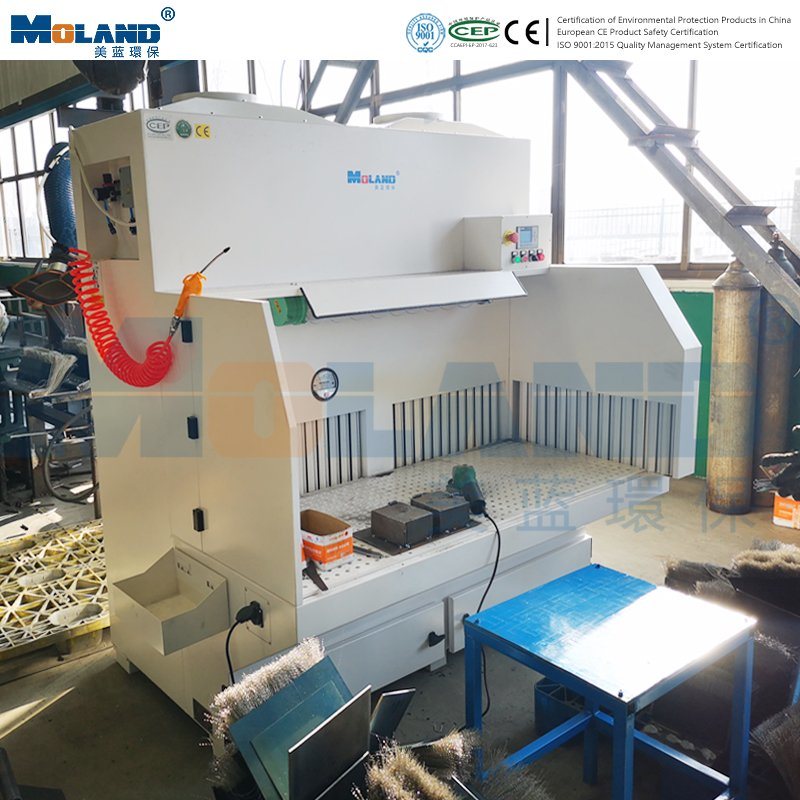

Dust purifier
· Suitable for grinding, polishing and other working conditions of metal and non-metal workpieces
Performance description
· Integral structure, beautiful appearance, small floor area, easy to move and fix with Fuma wheel installed at the bottom
· Double motor, double control, one or two blowers can be opened according to actual use
· Intelligent Control of Siemens PLC
· Power supply condition monitoring: alarm of fault phase overvoltage and undervoltage to prevent motor and electrical components from damage
· Pressure condition monitoring: alarm of low pressure of gas source to prevent incomplete ash removal; differential gauge shows the use status of filter element intuitively, and automatic pulse back blowing with high pressure difference
Standard configuration
· Filtration efficiency (> 99.9%) of main filter element (imported flame retardant filter element)
· Fault phase protection, overload protection and air pressure monitoring device
· Siemens PLC Electronic Control System
· Explosion-proof lighting
· Dust-proof 5-hole socket on left and right sides
· Toolbox on left and right sides
· Pressure differential gauge
· 50L Dust Collection Drawer *2
· 10 m power cord Spare parts
· Explosion-proof configuration
· Soft scratch pad
· IO port (remote control)
· Customization of stainless steel for the whole machine
· Design of Round/Square/ Long Hole on Workbench Surface
| Model | MLWF180 | MLWF380 | MLWF480 |
| Power | 1.5 | 1.5kw*2 | 2.2kw*2 |
| Voltage | 380V / 50Hz | ||
| Air Volume | 1800m³/h | 1800-3600m³/h | 2500-5000m³/h |
| Accuracy | 0.3μm | ||
| Filter Area | 16m² | 32m² | 40m² |
| Cleaning | Automatic | ||
| Filter material | Imported PTFE filter material | ||
| Noise | 75dBA | ||
| Size | 850×1250×1950mm | 1550×1250×1950mm | 2000×1250×1950mm |
| Weight | 450kg | 600kg | 800kg |
