RHINOCEROS XN12 MINI EXCAVATOR
XN12: 10KW, 1200 kg, 0.025 cbm bucket, digging depth: 1650 mm, can equip with Auger, Wood Grab,
Roof, Ripper, Rake, 200 mm Narrow Bucket, 380 mm Standard Bucket, 500 mm Leveling Bucket . Engine
emission can meet EURO 5 / EPA Tier 4 emission

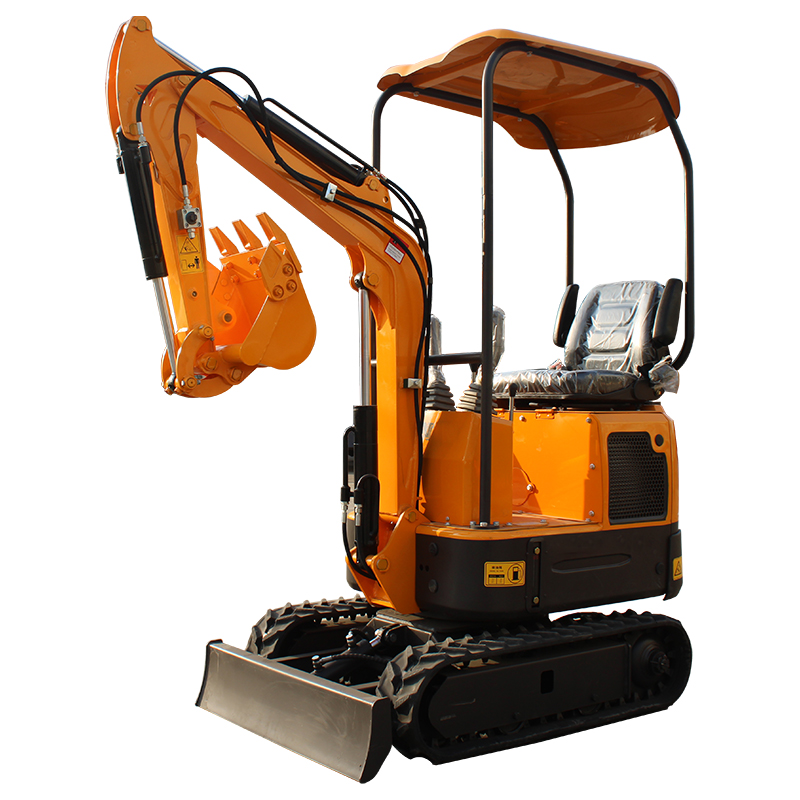

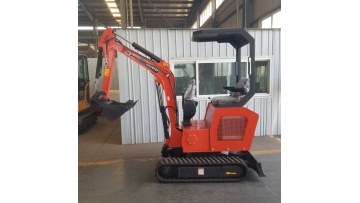

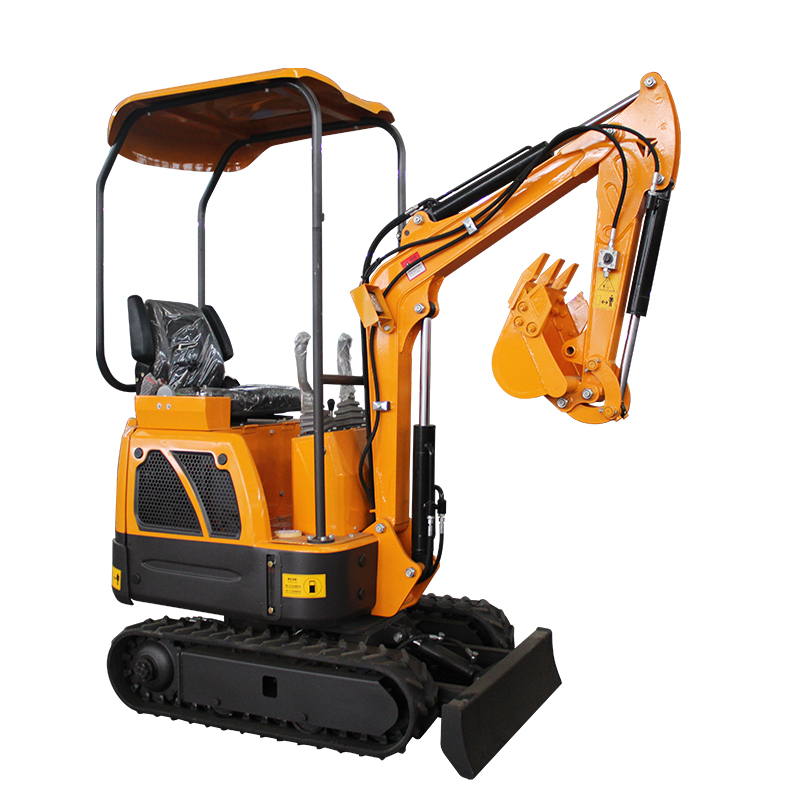

1.Crawler excavator XN12 Photos

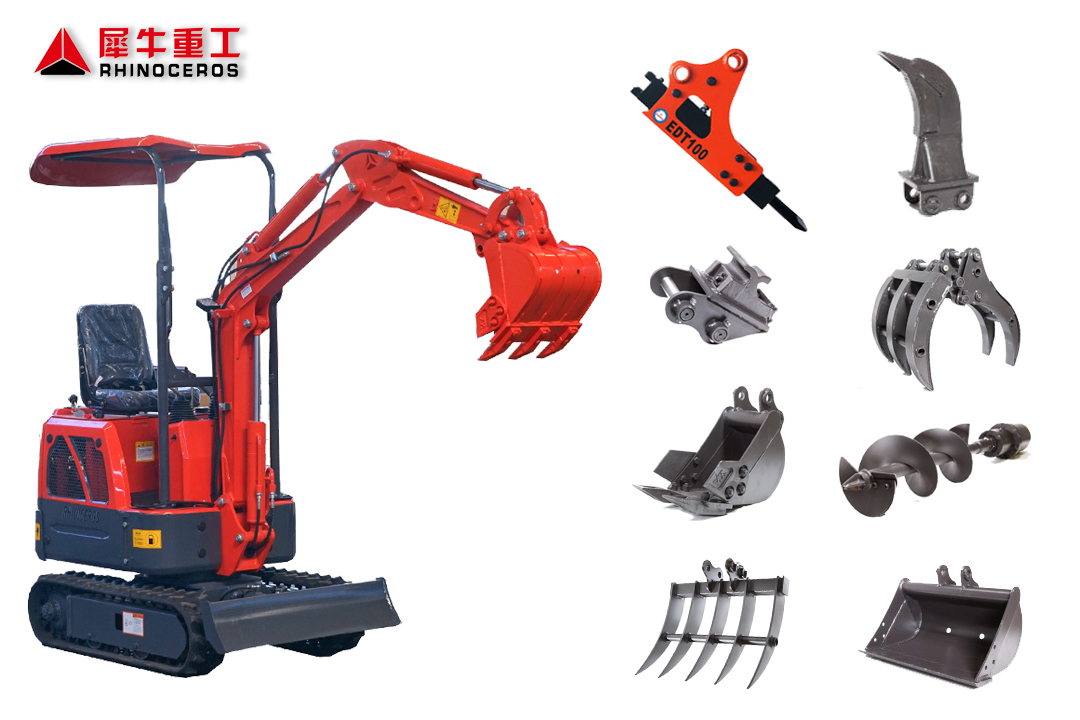

2.Available attachments:
Hydraulic Hammer,Auger,Wood Grab,Ripper,Rake,Tilt bucket, Narrow bucket 200mm,Leveling Bucket 500mm/600mm/800mm/1000mm and Quick hitch can be supplied.
3.Specification:
|
Model |
XN12 |
|
Manufacturer |
SHANDONG RHINOCEROS ENGINEERING MACHINERY CO.,LTD |
|
Brand |
RHINOCEROS |
|
Operating Weight |
1040kg |
|
Digging bucket capacity |
0.025cbm/120kg |
|
Digging bucket width |
350mm, can add narrow bucket is 200mm |
|
Engine |
YANMAR or Kubota |
|
Rated power |
10kw/2200/r/min |
|
Displacement |
0.854L |
|
Bore stroke |
three/two cylinders, water cool |
|
Main pump |
SAISIDA |
|
Pump flow |
16L/min |
|
Hydraulic pump perssure |
16Mpa |
|
Valve |
BEIFANG |
|
Swing motor |
SJ-TECH (MP-1-160) |
|
Traveling motor |
KERSEN (OMS-2450) |
|
Hydraulic oil tank |
16.5L |
|
Diesel oil tank |
7L |
|
Arm digging force |
5.0Kn |
|
Bucket digging force |
9.5Kn |
|
Electric pressure |
12V |
|
Electrick power |
5W |
|
MAIN DEMENSIONS |
|
|
Overall dimension( LxWxH) |
2770x896x1490 mm |
|
Wheelbase |
910 mm |
|
Total length of track on land |
1230mm |
|
Platform ground clearance |
380 mm |
|
Platform back turning radius |
784 mm |
|
Chassis width |
896 mm |
|
Track width |
180 mm |
|
Chassis ground clearance |
132 mm |
|
Track height |
320 mm |
|
OPERATING RANGE |
|
|
Max. Digging depth |
1650 mm |
|
Max. Vertical digging depth |
1375 mm |
|
Max. Digging height |
2610 mm |
|
Max. Dumping height |
1850 mm |
|
Max. Digging radius on ground |
2850 mm |
|
Min. Rotation radius |
1330 mm |
|
Max. Upgrade height of bulldozer blade |
345 mm |
|
Max. Digging depth of bulldozer blade |
255 mm |
4.One or two units LCL shipping packing photos
5. 13UNITS IN 40HQ / 6UNITS IN 20GP
6, ABOUT OUR FACTORY
We are professional manufacturer of mini excavator, mainly produce wheel excavators, crawler excavators, since 1995, which have passed CE, ISO9001 certification. Our products have been exported to more than 50 countries and regions. Such as Australia, Poland, Germany, Norway, Argentina, Malaysia, UK, Poland, Holland, Philippine etc. and sales are growing every year. we attend Canton Fair every year, and also attend Bauma Fair in ShangHai and Germany. we believe we will have a good cooperation with you.
7.Contact US:
