Rhinoceros mini excavator XN20 2ton excavator
XN20 mini excavator use Japanese original Yanmar engine, the swing motor and hydraulic pump all use Japanese made Nachi brand. And the valve also use Italy made Walvoil brand. The hydraulic pump is piston pump, perfect match for valve output.
Mini excavator XN20, 0.045cbm bucket, 2ton, DIESEL YANMAR ENGINE, Diesel Yanmar engine. Can meet the Euro five /EPA Tier 4 emission

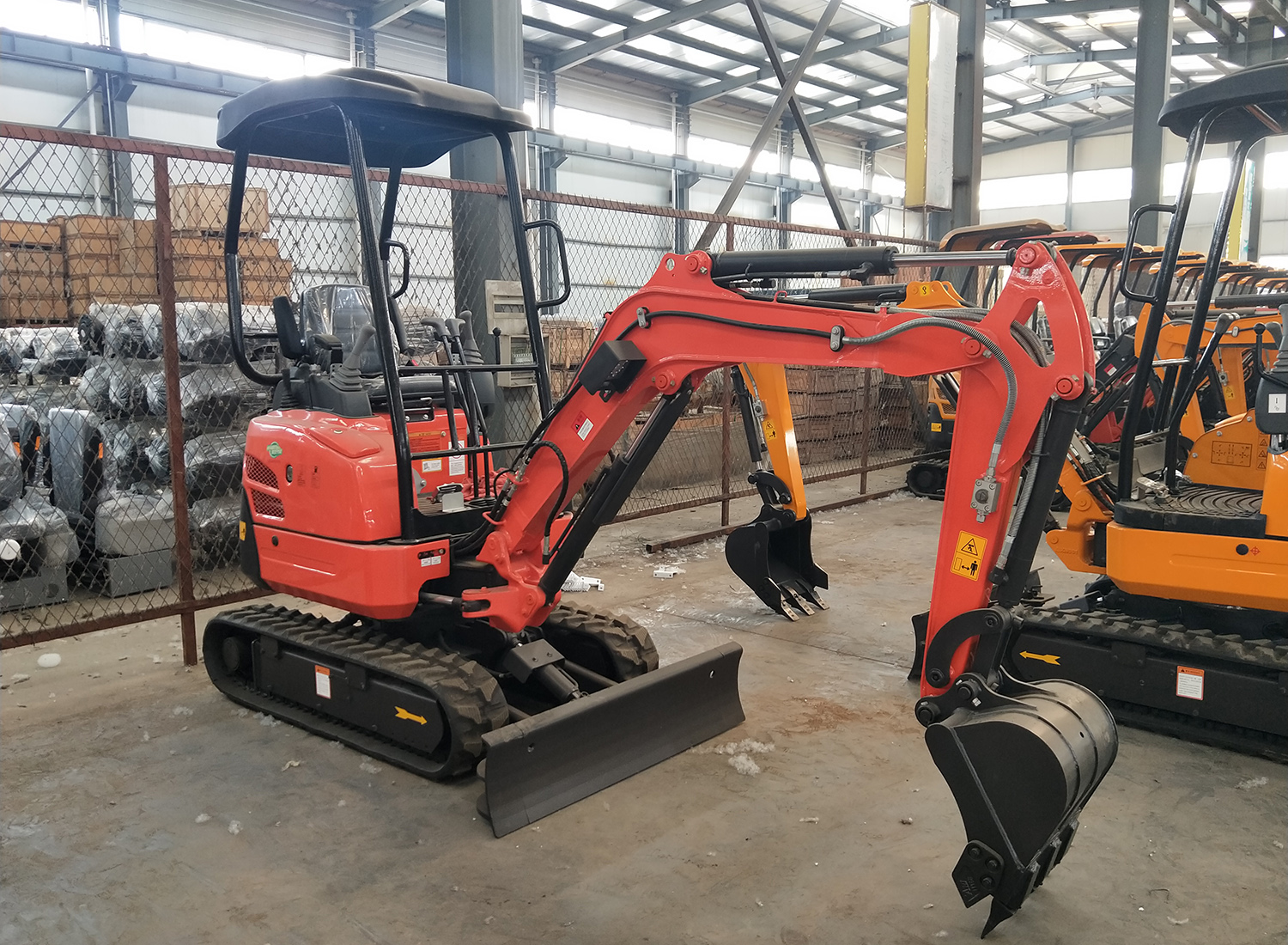

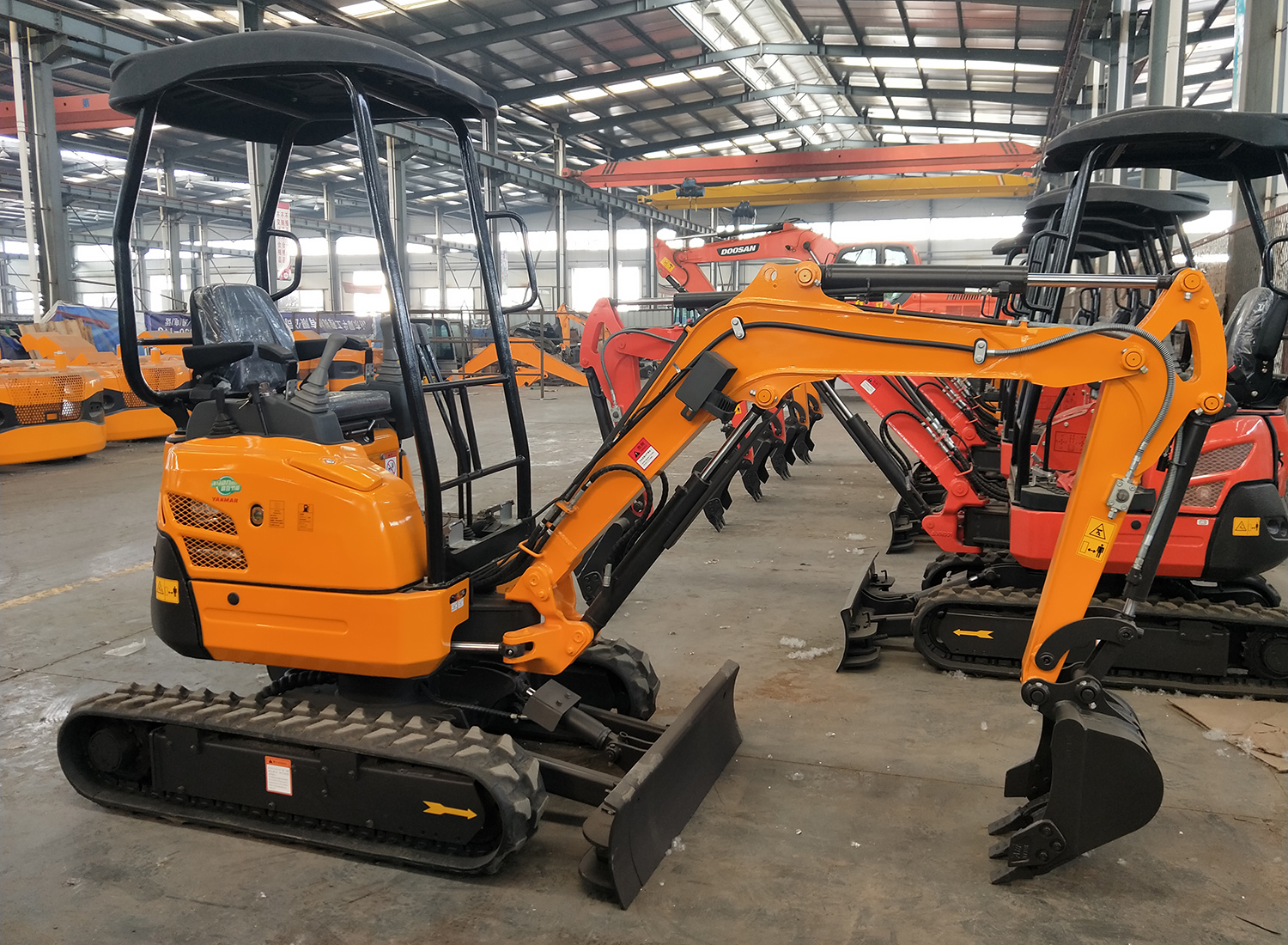

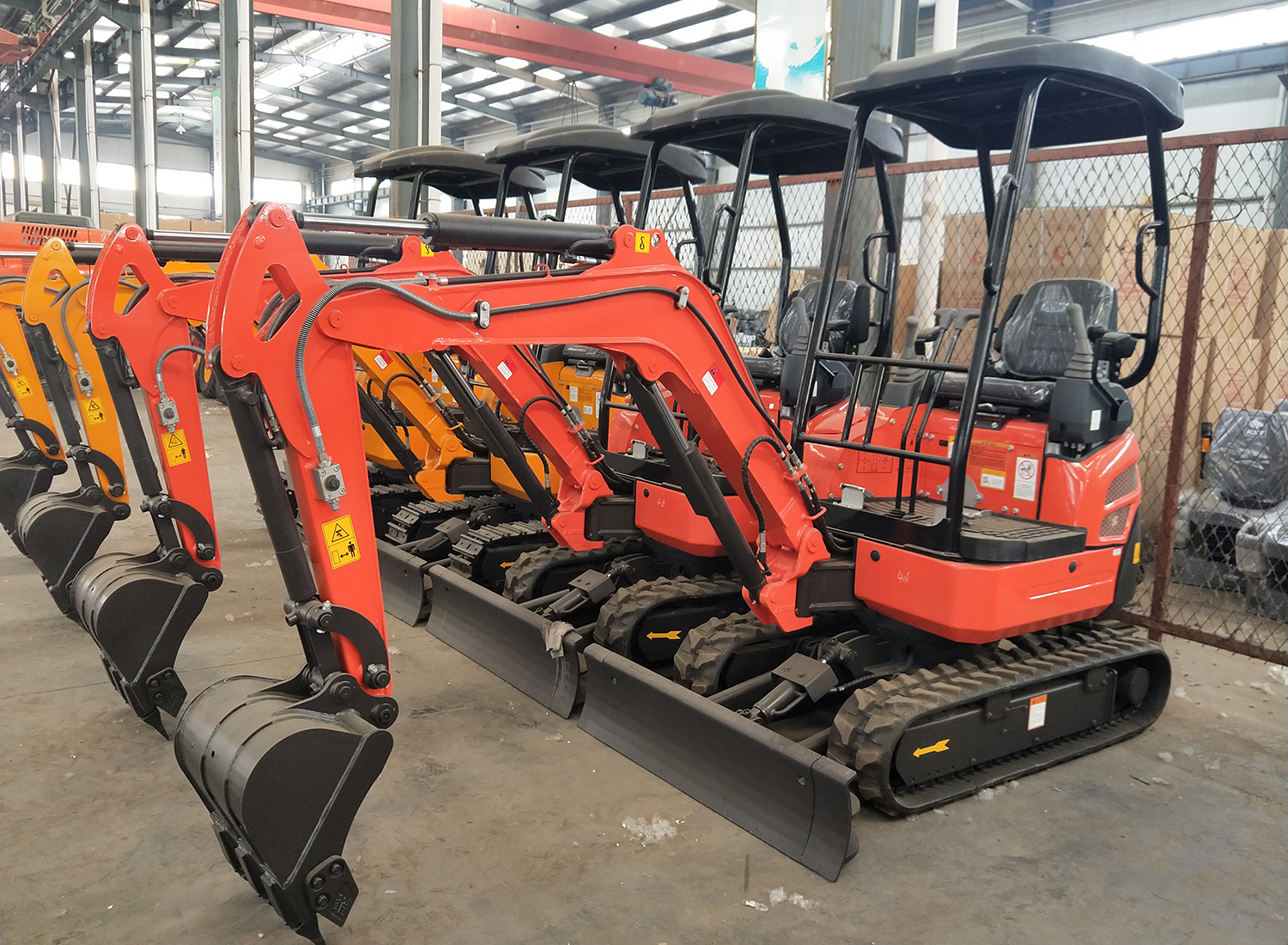

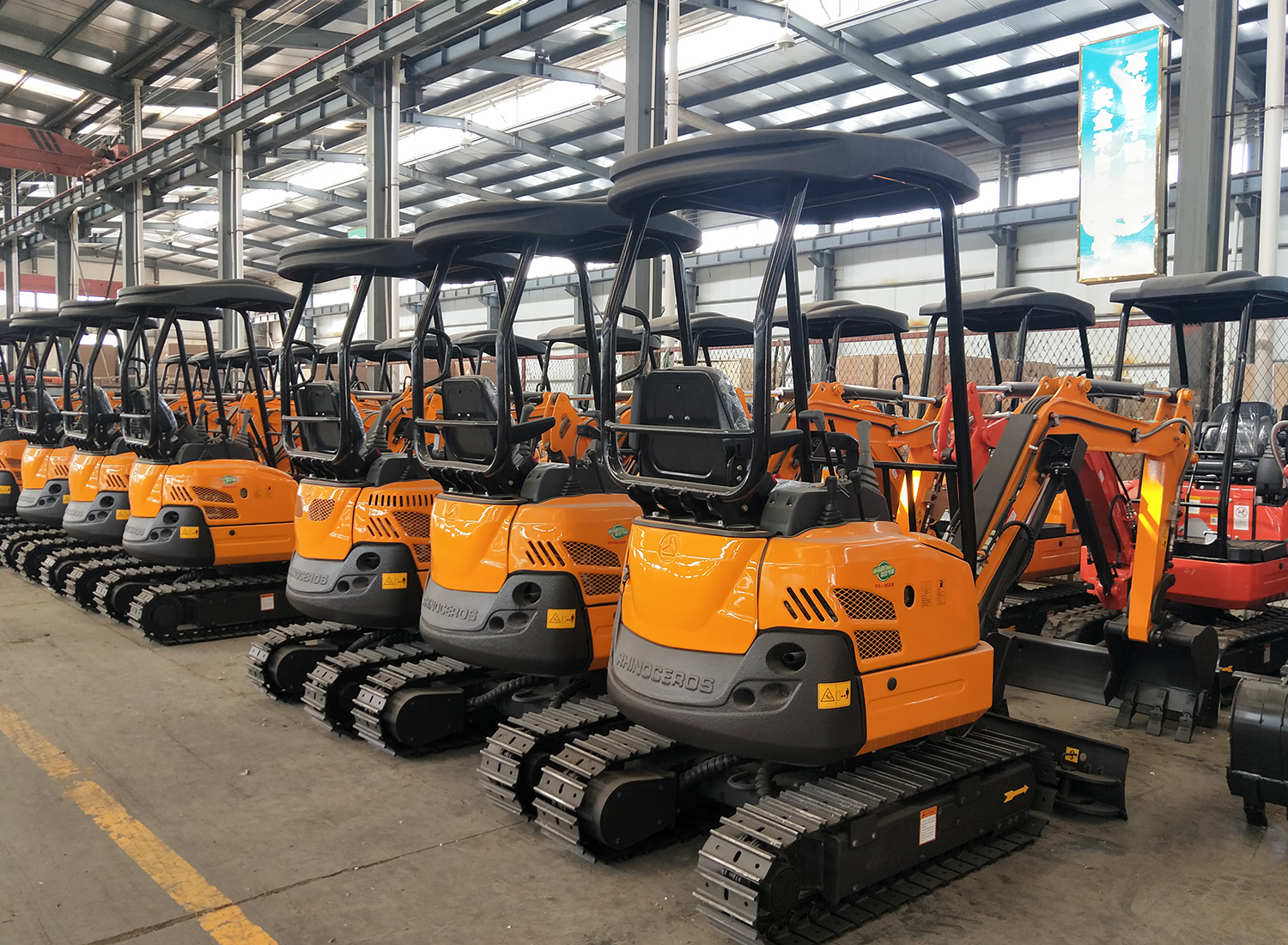

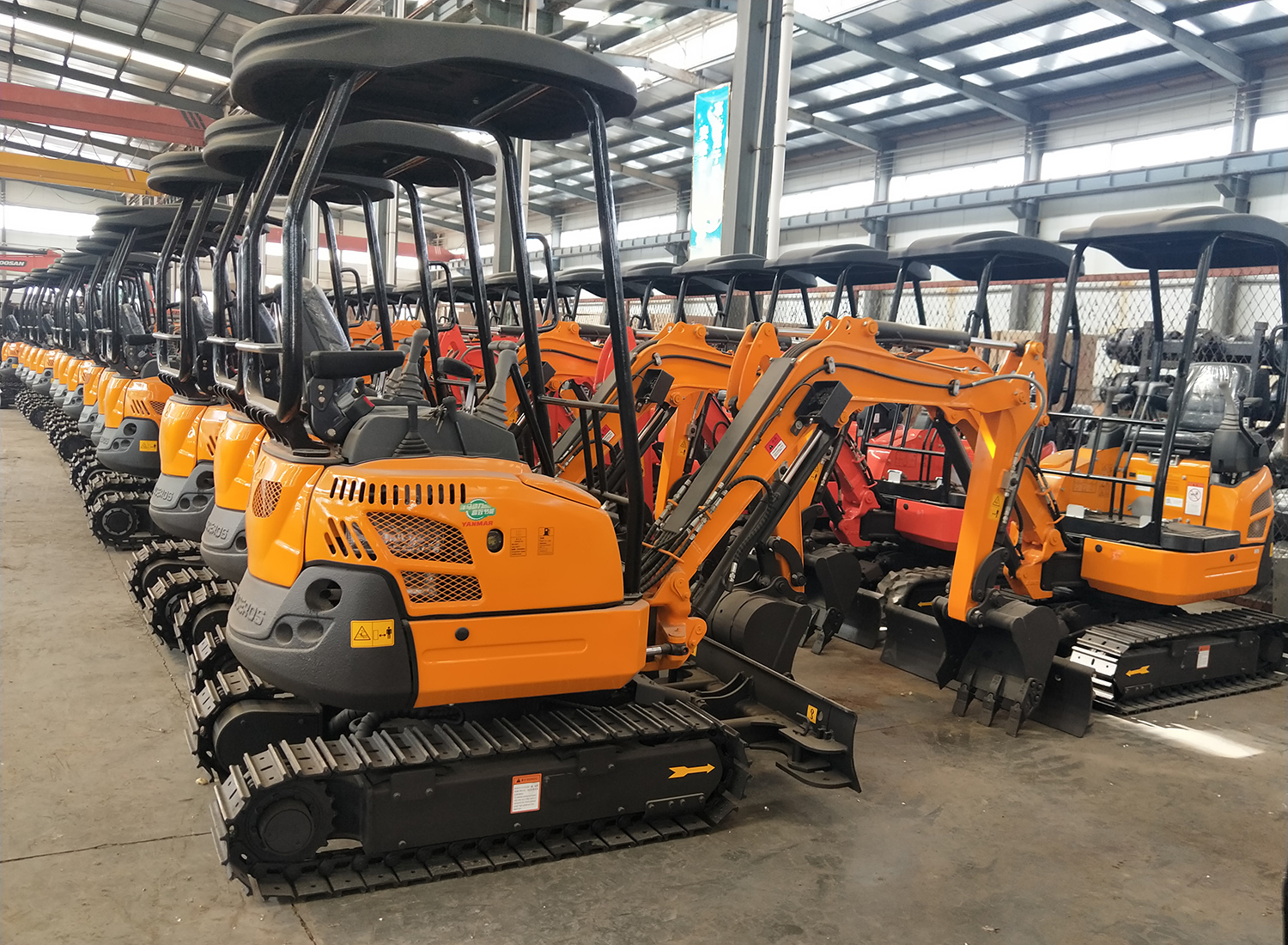

1. Crawler excavator XN20 photos:
2. Accessories can avaliable:
3. Specifications:
|
Model |
XN20 |
|
Manufacturer |
SHANDONG RHINOCEROS ENGINEERING MACHINERY CO.,LTD |
|
Brand |
RHINOCEROS |
|
Operating Weight |
1880kg |
|
Digging bucket capacity |
0.045cbm/500kg |
|
Digging bucket width |
420mm, can add narrow bucket is 200mm |
|
Engine |
Yanmar (3TNV70) |
|
Rated power |
10kw/2200/r/min |
|
Displacement |
0.854L |
|
Bore stroke |
three cylinder, water cool |
|
Main pump |
Italy Walvoil |
|
Pump flow |
2x17+14 L/Min |
|
Hydraulic oil tank capacity |
15.3L |
|
Engine oil tank capacity |
2.8(1.3)L |
|
Diesel tank capacity |
19 L |
|
Valve |
Italy Walvoil |
|
Displacement |
6.8ml/r |
|
Swing motor |
Japanese Nachi |
|
Traveling motor |
DONGHYUAN |
|
MAIN DEMENSIONS |
|
|
Overall dimension( LxWxH) |
3400 x (990-1240) x 2350mm |
|
Chassis width |
990 mm(retract)/ 1240mm(extended) |
|
Track width |
230 mm |
|
Chassis ground clearance |
460 mm |
|
Bucket digging force |
13.5Kn |
|
Arm digging force |
10.1Kn |
|
Theoretical Maximum traction |
17.5Kn |
|
Ground specific pressure |
32.8KPA |
|
Max. Digging depth |
2150 mm |
|
Max. Vertical digging depth |
1740 mm |
PACKAGE:
1-3UNITS IN VENEER BOARD BOXES, 4UNITS IN 20F CONTAINER, 12UNITS IN 40HQ
DELIVERY TIME: 5-20DAYS AFTER RECEIVED ADVANCED PAYMENT
Company information:
Related products:
Contact us:
FAQ
1: Are you factory or trading company?
A: Here we are factory since the year 1995, brand is XINIU/Rhinoceros, focus in producing small size excavators.
1: What kind terms of payment can be accepted?
A: For terms of payment, L/C, T/T, Western Union (can be) could accepted
2: What certificates are available in Machinery?
A: For the certificate, we have CE, ISO.
3: What about the delivery time?
A: 7-20 days after receiving the deposit.
4: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occurs first.
5. What about the Minimum Order Quantity?
A: The MOQ is 1 pcs .
