RHINOCEROS XN16-8 MINI EXCAVATOR

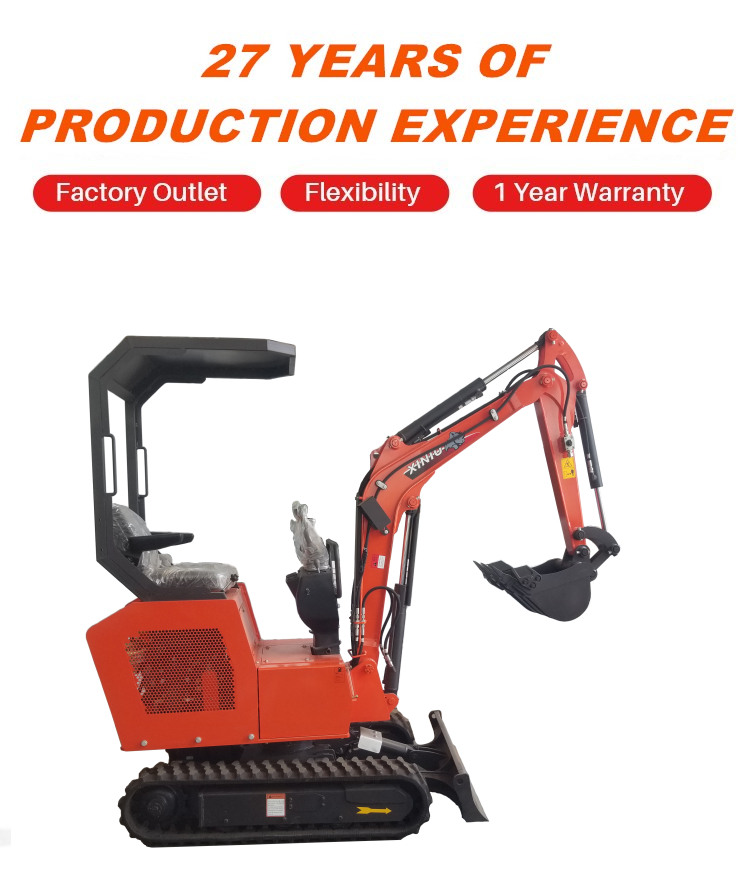

1.Crawler excavator XN16-8 Photos

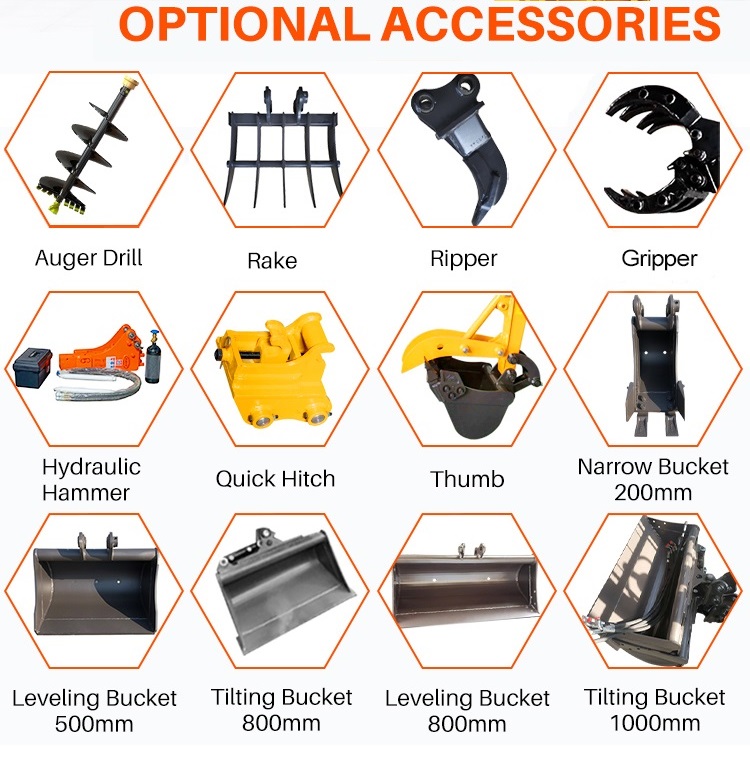

2.Available attachments:
Hydraulic Hammer,Auger,Wood Grab,Ripper,Rake,Tilt bucket, Narrow bucket 200mm,Leveling Bucket 500mm/600mm/800mm/1000mm and Quick hitch can be supplied.
3.Specification:
|
Model |
XN16-8 |
|
Brand |
RHINOCEROS |
|
Operating Weight |
1400kg |
|
Digging bucket capacity |
0.045cbm/400kg |
|
Digging bucket width |
400mm |
|
|
|
|
Engine |
Kubota engine D722 |
|
Rated power |
10.2kw/2500/r/min |
|
Displacement |
0.719L |
|
Bore stroke |
three cylinder, water cool |
|
Max.Torque |
42.9N.m/2000r/min |
|
Max. Travel Speed |
2km/h |
|
Swing speed |
11rpm |
|
Max.grade ability |
30º |
|
Tracks |
Rubber tracks |
|
|
|
|
Main pump |
BEIFANG brand Gear pump |
|
Pump flow |
20L/Min |
|
Valve |
BEIFANG BRAND |
|
Displacement |
8ml/r |
|
Swing motor |
EATON BRAND |
|
Traveling motor |
EATON BRAND |
|
MAIN DEMENSIONS |
|
|
Overall dimension( LxWxH) |
3160x1040x2377mm |
|
Wheel base |
1123mm |
|
Track length |
1450mm |
|
Upper Chassis ground clearance |
420 mm |
|
Counter weight turning radius |
900 mm |
|
Chassis width |
1130 mm |
|
Tracks width |
230 mm |
|
Tracks height |
320mm |
|
Transportation length |
2330mm |
|
Height of seat to ground |
1560 mm |
|
Height of roof |
2320mm |
|
Total height |
2575mm |
|
OPERATING RANGE |
|
|
Max. Digging radius on ground |
3513mm |
|
Max. Digging radius |
3560mm |
|
Max. Digging depth |
2167mm |
|
Max. Vertical digging depth |
1757 mm |
|
3258 mm |
|
|
Max. Dumping height |
2293 mm |
|
Min. Rotation radius |
1440 mm |
|
Max. Upgrade height of bulldozer blade |
165 mm |
|
Max. Digging depth of bulldozer blade |
265 mm |
4>Details Images

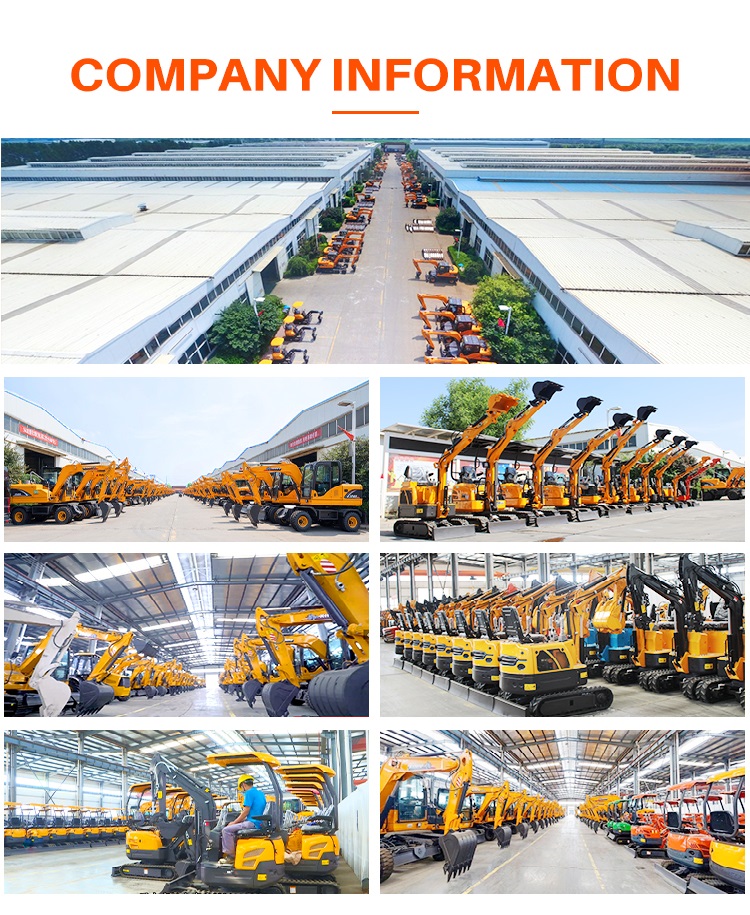

6, ABOUT OUR FACTORY
We are professional manufacturer of mini excavator, mainly produce wheel excavators, crawler excavators, since 1995, which have passed CE, ISO9001 certification. Our products have been exported to more than 50 countries . Such as Australia, Poland, Germany, Norway, Argentina, Malaysia, UK, Poland, Holland, Philippine etc. and sales are growing every year. we attend Canton Fair every year, and also attend Bauma Fair in ShangHai and Germany. we believe we will have a good cooperation with you.
