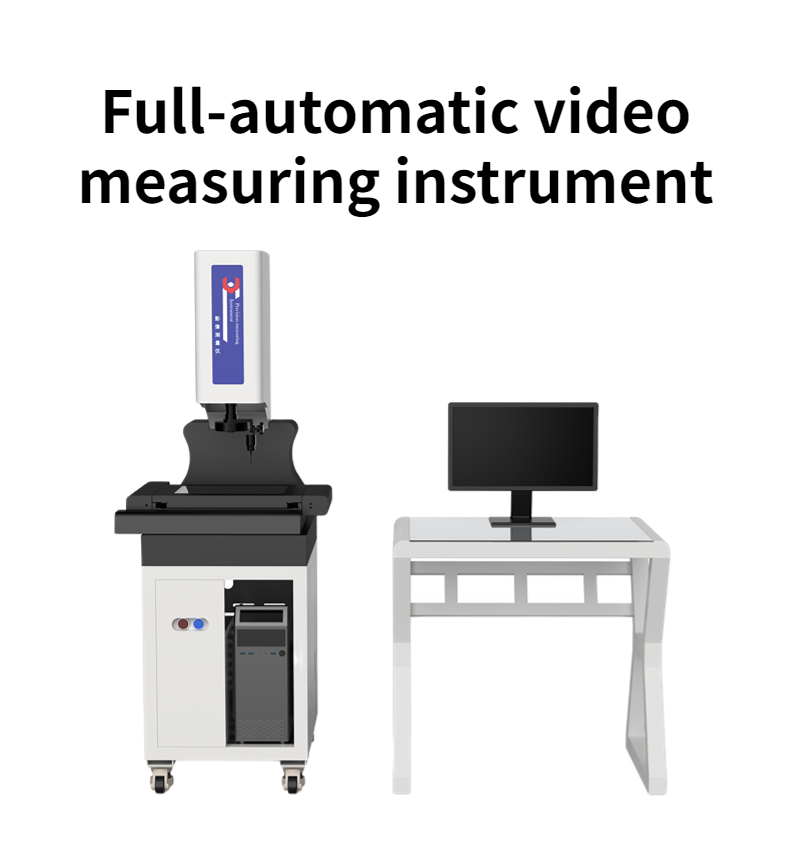

Full automatic image measuring instrument

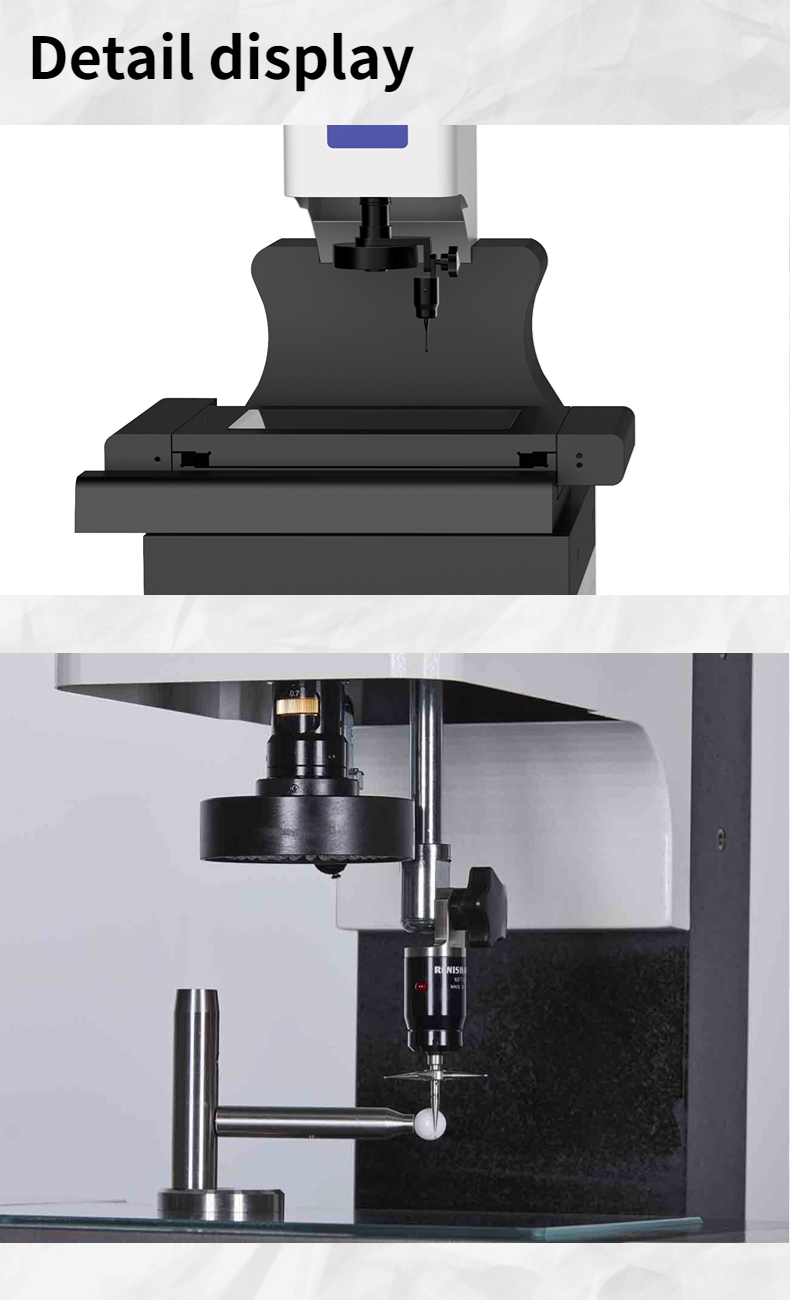

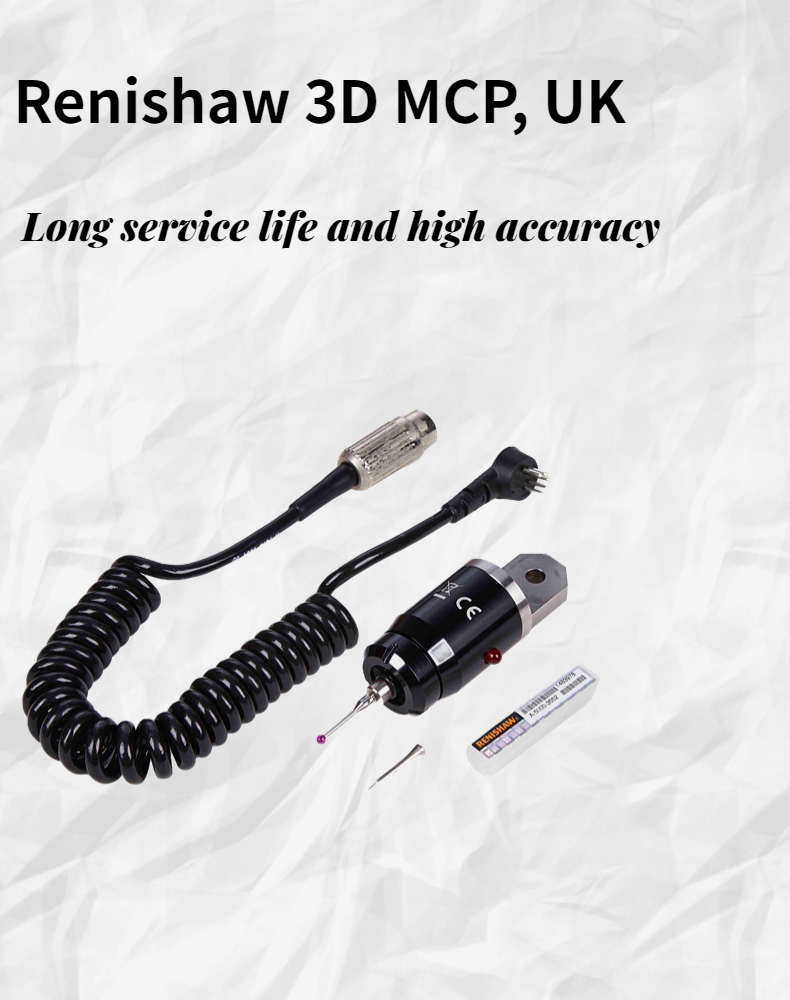

Full-automatic image measuring instrument, which is based on artificial intelligence technologies such as automatic edge extraction, automatic matching, automatic focusing, measurement synthesis, image synthesis, etc. of machine vision, has the functions of automatic measurement of where to go, automatic measurement of CNC walking, automatic learning batch measurement, image map target guidance, full-field eagle eye magnification, etc. At the same time, it is based on the automatic focusing process under the precise control of machine vision and micrometer, which can meet the need for auxiliary height measurement under clear contrast (a contact probe can also be added to complete coordinate height measurement). It supports the software performance of spatial coordinate rotation. It can conduct batch measurement when the workpiece is placed at will and can also use the fixture to conduct mass scanning measurement and SPC result classification.

The image-measuring instrument is based on automatic edge extraction, automatic matching, automatic focusing, measurement synthesis, image synthesis, and other artificial intelligence technologies of machine vision. It has the functions of automatic measurement of where to go, automatic measurement of CNC walking, automatic learning and batch measurement, image map target indication, entire field eagle eye magnification, and other excellent functions. At the same time, the auto-focusing process based on machine vision and micrometer precision control can meet the needs of auxiliary measurement under clear images and add a contact probe to complete coordinate measurement. The excellent software performance supporting spatial coordinate rotation can be used for batch measurement and SPC result classification when the workpiece is randomly placed, or the fixture is used.
