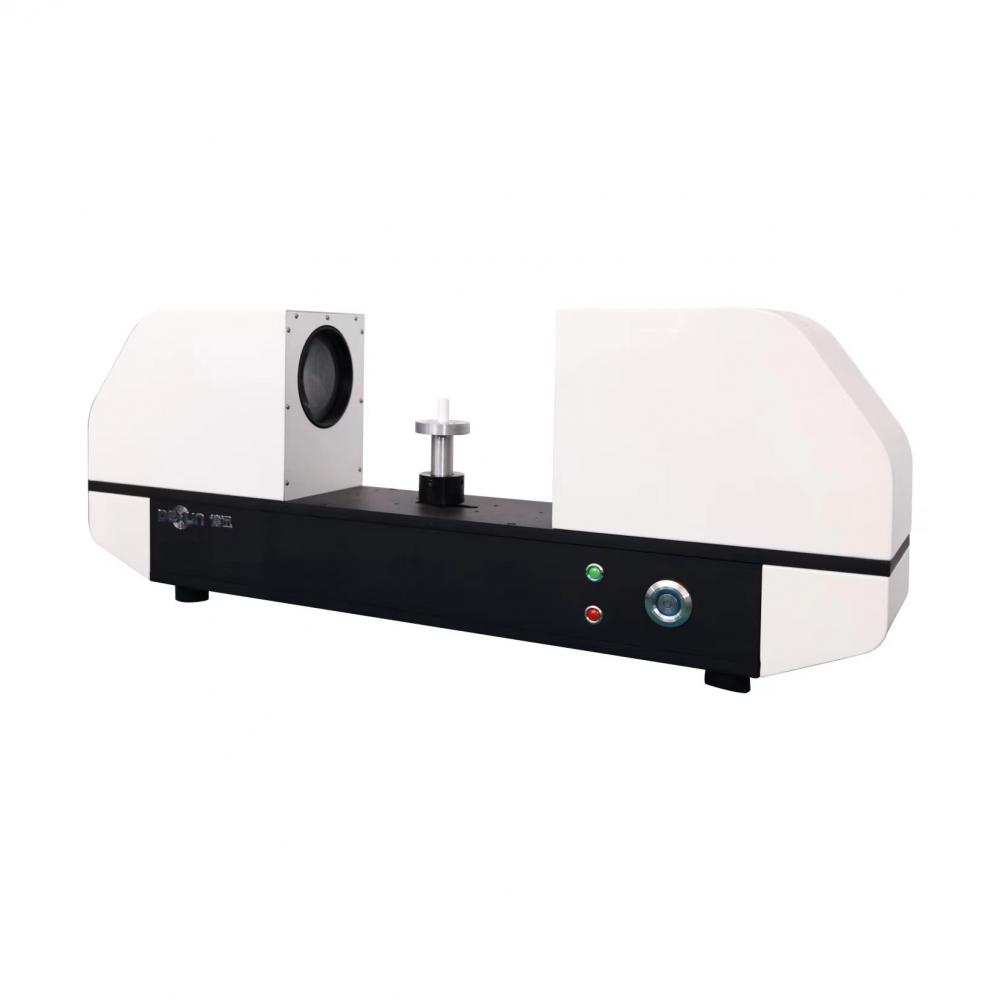

Fast size measuring instrument horizontal type

One button size measuring instrument is a kind of image measuring technology. It is different from the traditional anime image measuring instrument in that it no longer needs the grating ruler displacement sensor as the accuracy standard, nor does it need to magnify the product image through a large focal length lens to ensure the measurement accuracy

· Performance Specifications

Main features:
1) Automatic image registration function, no need to locate the workpiece, no need to clamp, the product is placed at random, to achieve automatic identification and measurement; Multiple measuring workpieces can be identified and measured at the same time, and the results can be output;
2) The image sensor adopts imported high-definition 20 million pixel CCD, and the Gige Gigabit Ethernet card (transmission rate: 1G/S) matched with it makes the image clear and fine;
3) Imported bilateral telecentric lenses are used, together with parallel telecentric transmission light (transmission system), programmable four zone annular shadowless falling light (falling light system), coaxial falling light and low angle shadowless falling light (optional light source), to ensure the authenticity, stability and observability of the product image to be measured, making the measured data very close to the true value, and the repeated measurement data very stable, The operator will not doubt the measurement results due to large data differences.
4) The instrument controller produced with new technology (including built-in and external) can be directly matched with the new intelligent software, which makes the instrument light control, worktable movement control and camera exposure control very simple and easy to operate.
