40-160mm PVC pressure pipe production line

3 year ago

30 0 

Zhangjiagang Huade Machinery Technology Co.,Ltd

1 min

Product details

Plastic UPVC Pipe making machine

Feeder	• To feed material into extruder(PVC manufacture machine)
Extruder	• World famous brand electrical component such as Siemens, Schneider, ABB etc •High torque gearbox with adopts NSK/SKF bearing; •Siemens/WEG original motor achieved global after service; • Bimetallic screw and barrel; • Intelligent PLC controlling system with human-friendly interface.
Die head	• 40Cr material •Complete set include extrusion die head, Slotting & water ring type calibration sleeve • Apply to PVC single,dual,Four cavity extrusion.
Vacuum calibration tank	•PVC pipe manufacture machine Include full set of vacuum and water pump • length 9000mm
Haul off	• Upper and lower caterpillar is driven separately by the frequency inverter
Planetary Saw Cutter	• Planetary saw cutter:enter knife by hydraulic drive • Cutting saw: steel alloy, specific for cutting U-PVC pipe. • Equipped cast aluminum compacted block for accurate cutting • Synchronous control
Belling machine	• Blow type: internal air blow and external mould compacted calibration, make U, R and Z type sockets; • Siemens PLC controlling:Automation& Remote Function: for centralized Controlling
Tipping table	•Stainless steel 304 as touching material •Discharge driving by air cylinder

PVC Plastic Tube production line making machine is mainly used to produce all kinds of UPVC pipes for agricultural water supply and drainage, building water supply and drainage and cable laying, etc.

Processing flow of PVC Plastic Tube production line making machine:

PVC powder + additive → mixing → spring feeding → twin screw extruder → mould and calibrator

→ vacuum forming machine → haul off machine → cutting machine → discharging rack

Application

PVC Plastic Tube production line making machine photos

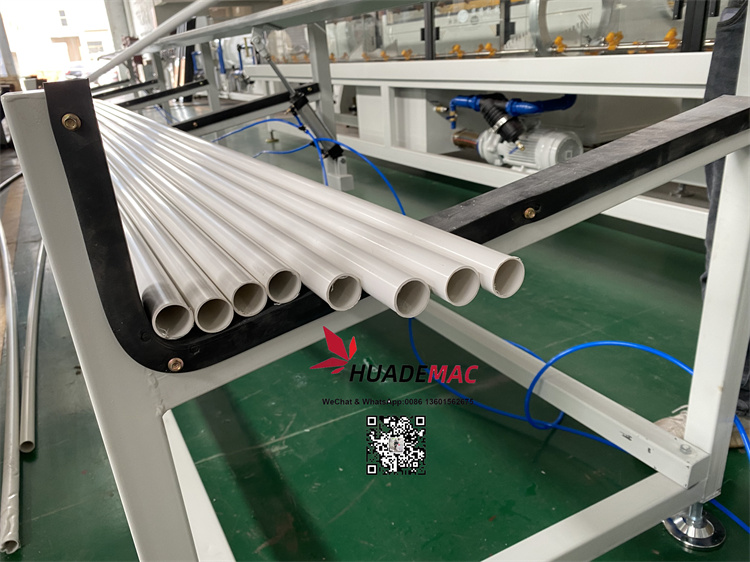

Final Products
