Warp Knitting Machine for Geogrid

Production introduction:

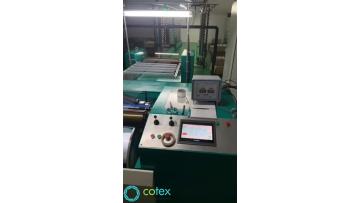

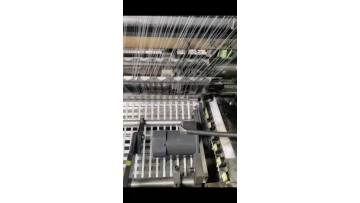

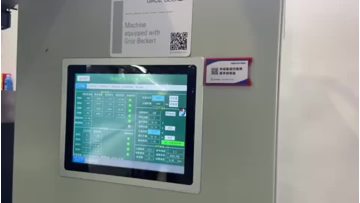

RS3-MSUS full-width weft insertion high-speed machine is composed of a warp knitting machine and winding mechanism, The warp knitting machine consists of a warp feeding mechanism and a weft laying mechanism. Warp yarn is yarn stored on the beam, through the warp-sending mechanism to the weaving area, the weft yarn is driven by the weft trolley, lining the weft clippers on both sides. It is transported to the warp knitting area via a chain mechanism, then woven into cloth by a certain weaving process. The whole system is controlled by a computer, driven by servo motors, the woven cloth is drawn by the traction mechanism and the winding mechanism to rolled up at a fixed length.

Product usage:

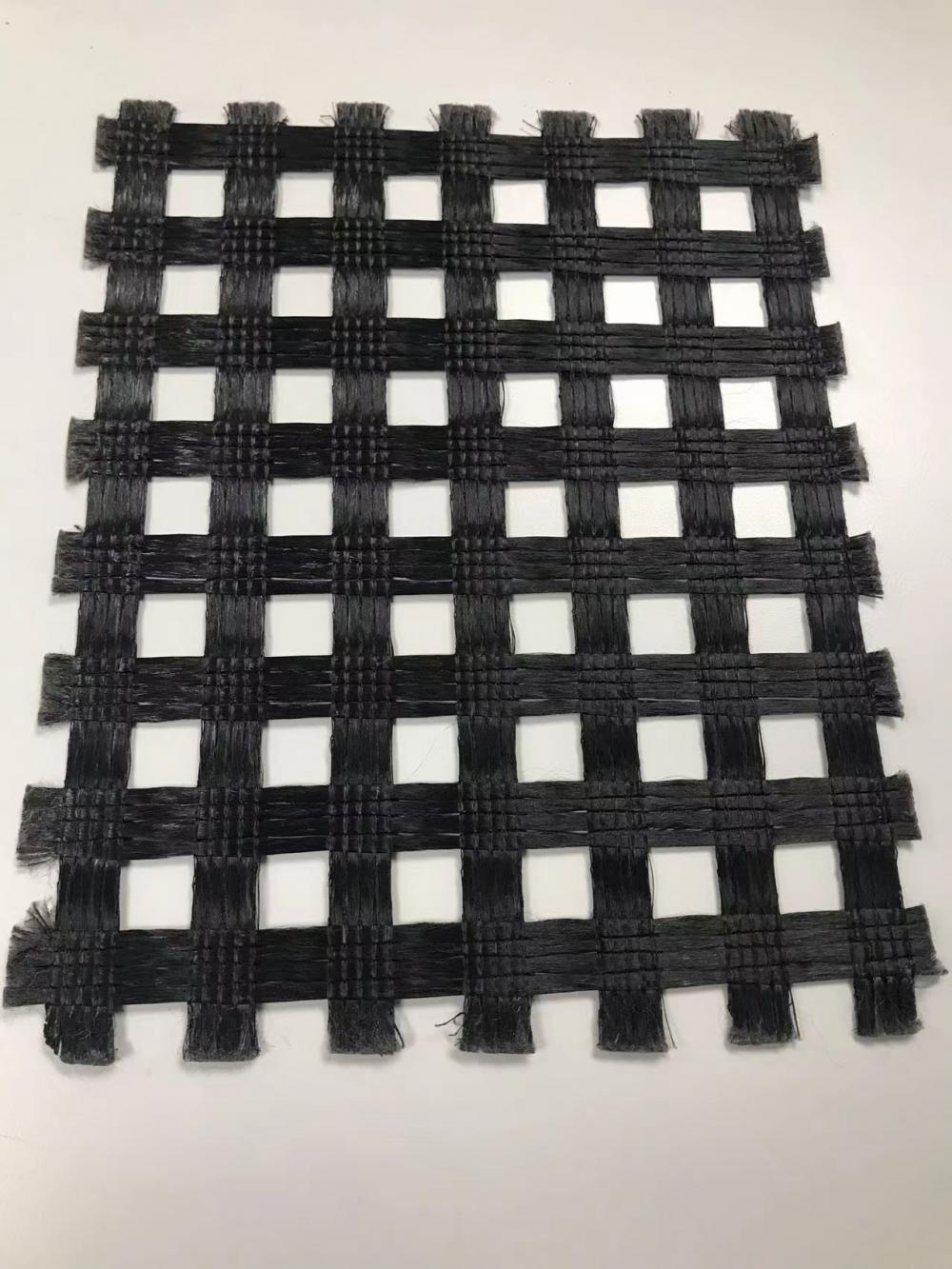

The RS3-MSUS weft insertion machine mainly produces various compound base cloths. High-performance warp-knitting machine with course-oriented weft insertion for the production of heavyweight fabrics and composite fabrics

Main Technical Specifications:

Width: 245inches/6.2m（Can be customized according to customer requirements）

Machine Gauges:  E6

Needle Type: Imported compound needle

Revolutions Per Minute: 50-1300RPM

Guide Bar Numbers:  3(GB1, GB2, ST), GB1 GB2 equipped laser stop device.

Weft Insertion Systems: controlled by servo motors

Weft Yarn numbers: 30 Threads equipped with the yarn inspection device.

Main Power: 11KW

Working Voltage: AC380V±5%, voltage stabilizer is suggested.

Main parts:

Let-off device: electronic let-off control system

Batching device: electronic batching system

Take-up device: electronic take-up system

Pattern drive: with pattern discs, electronic guide bar drives optional

Chain: controlled by servo motor

Weft yarn carriage: controlled by servo motor
