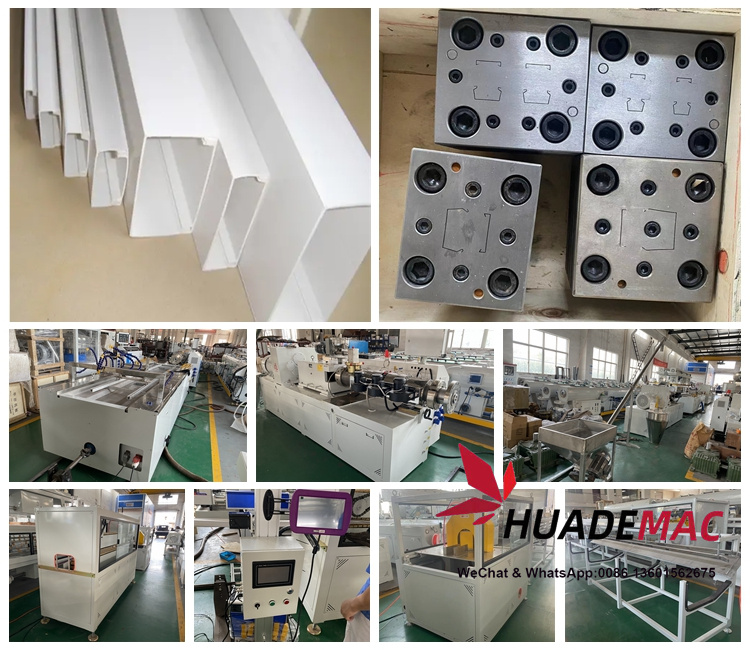

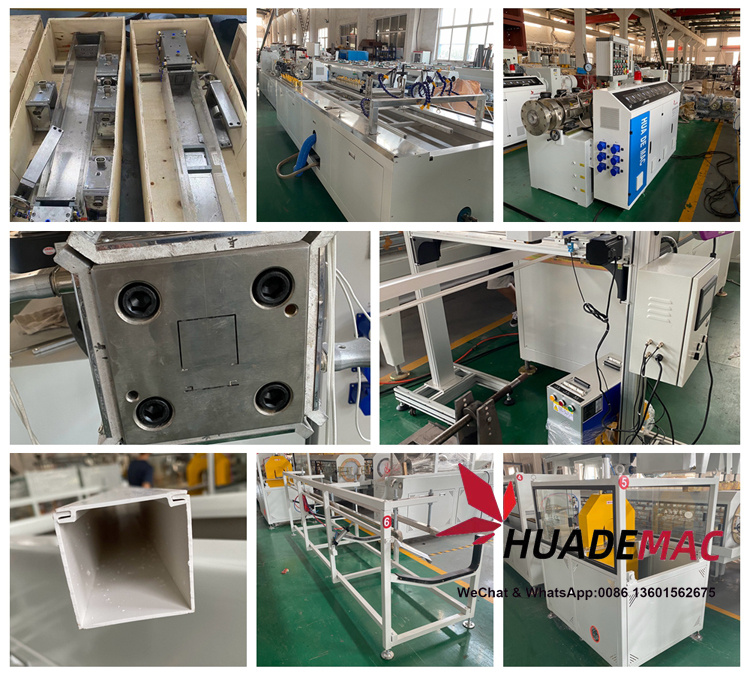

dual strand PVC cable tray making machine

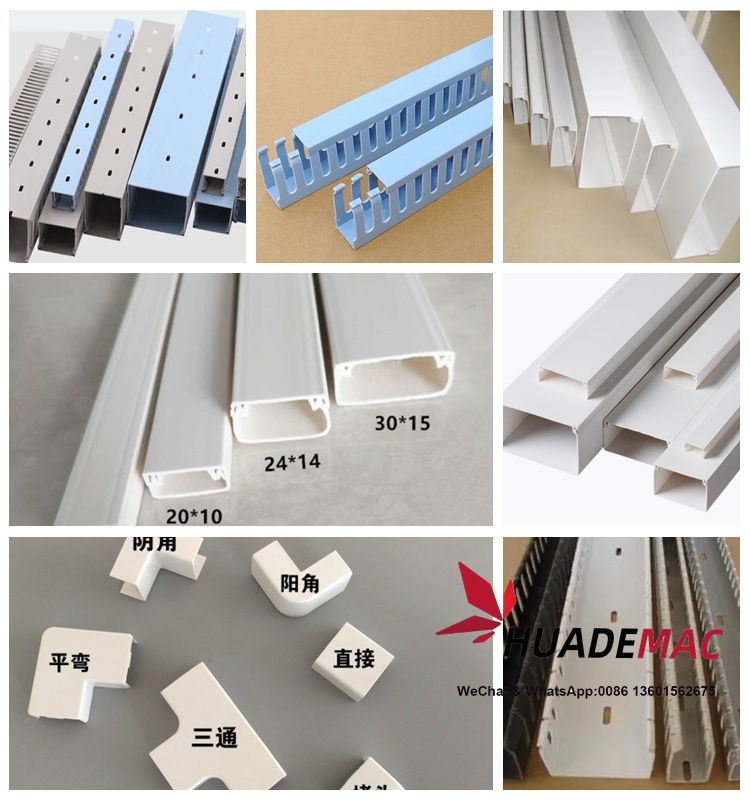

This extrusion line is applied to produce different size PVC Cable Trunking and cable trays with single cavity or two cavities.

This line can manufacture the following products by changing the molds

Door systems

Window sills

Wall and ceiling panels

Cable ducts

Roller shutter systems

Rain gutters

Sandwich panels

Plinth profiles

Curtain rails

Siding systems

The SJSZ-series conical twin screw extruder is designed for the PVC profile application.

High flexibility in raw material combinations

Gentle and homogeneous plastifcation

Barrel with air cooling system

AC motors for low energy consumption

Control panel can be optional with PID temperature instrument or PLC touch screen

Screw diameters 55 and 65 mm

Outputs from 100 to 200 kg/h

Vacuum Calibration Table

Motor-driven height and side movement

Motor-driven longitudinal movement

Manuel tilting movement

All parts that are in contact with water is made of stainless steel

2 Caterpillar Haul-Off

Our haul-offs are equipped with two independent tracks with gearboxes with continuous speed adjustment by inverter.

Flexibility in pad dimensions

Two independent tracks with gearboxes

Speed adjustment by inverter

Saw Cutter:

Different saw dimensions for special profiles

Includes dust absorber unit

Adjustable cutting speed

Cutting width from 350 to 700 mm

Cutting height from 10 to 100 mm

Adjustable cutting speed

Tilting Table

Table material is stainless steel

Tilting system is pneumatic
