S-JY6090PV Slant arm screen printing machine

2 month ago

2 0 

9 year

Product details

Introduction

Oblique Arm Type Flat Screen Printing Machine is a special type of screen printing equipment. Its characteristic is that the screen frame (i.e., screen) opens and closes at a certain angle, contacts the workbench and completes the printing operation. The screen clamping mechanism is installed on the cam rotating shaft, and continuous printing is achieved by periodically leaving and contacting the workbench, thereby increasing the printing speed.

081 Features

Oblique arm design: The core feature of the oblique arm screen printing machine is its unique oblique arm design, which enables the screen frame to open and close at a certain angle. This design helps to optimize the contact area and pressure distribution during the printing process, thereby improving the printing effect.

Cam rotating shaft: The screen clamping mechanism is installed on the cam rotating shaft, and the screen frame is driven to open and close by the rotation of the cam. This design makes the printing process more stable and also helps to increase the printing speed.

Scraper and ink return knife moving forward and backward: Unlike the vertical lifting screen printing machine, the scraper and ink return knife of the oblique arm screen printing machine move in the forward and backward direction. This design helps to better control the distribution and recovery of ink, thereby further improving the printing quality.

Relatively low precision: Compared with the vertical lifting screen printer, the precision of the oblique arm screen printer may be slightly lower. This is mainly because its oblique arm design limits the improvement of precision to a certain extent. However, in most application scenarios, this difference in precision does not have a significant impact on the final printing effect.

083

Advantage

Designed with its structure equipped with both power-driven and air-powered devices;
The printing operation and lifting transmission are under the control of the imported variable automatic system, and the complete machine is characterized by uniformity of operation.
Its printing plate is cast with aluminum alloy ,Stainless steel sheet of 2mm in thickness is adhered to the surface of the printing plate, and the printing plate may be smooth, even, and free from distortion;
In addition, it is provided with coordinate vernier device and automatic air-intake function, ensuring still more easy and accurate printing plate alignment.
Slide rail adopts linear guide rail made in Germany, Free of attrition wear. Transmission gear is equipped with imported timing belt and it is characterized by free actuation and adjustable speed.
Pressure of squeegee blade and in returning blade are adjustable and may be separately manipulated, and adjustment up to 45 degrees is allowed as well
It is equipped with safe bounce-back function, ensuring safety in operation it is also provided with automatic synchronous screen-departure function , and this may avoid the scumming of printed materials effectively.
All components of the electrical section are from noted brands, its panel is fitted with electronic touch keys. the complete machine is coated with static pyrolytic coating, with esthetic appearance , good taste, and solvent resistance.

Reduced costs: Automated production reduces labor costs and improves production efficiency, thereby reducing overall costs.
Improved precision: Accurate control systems and stable printing processes can ensure improved printing precision and meet high-quality printing needs.
Easy to manage: Automated production lines are easy to manage and monitor, and the control system can be used to understand the production status in real time and make adjustments.
Environmental protection and energy saving: Compared with traditional printing methods, conveyor belt flat printing lines are more environmentally friendly and energy-saving in terms of energy consumption and waste emissions.

Slant-arm silk screen printing machine//Parameters

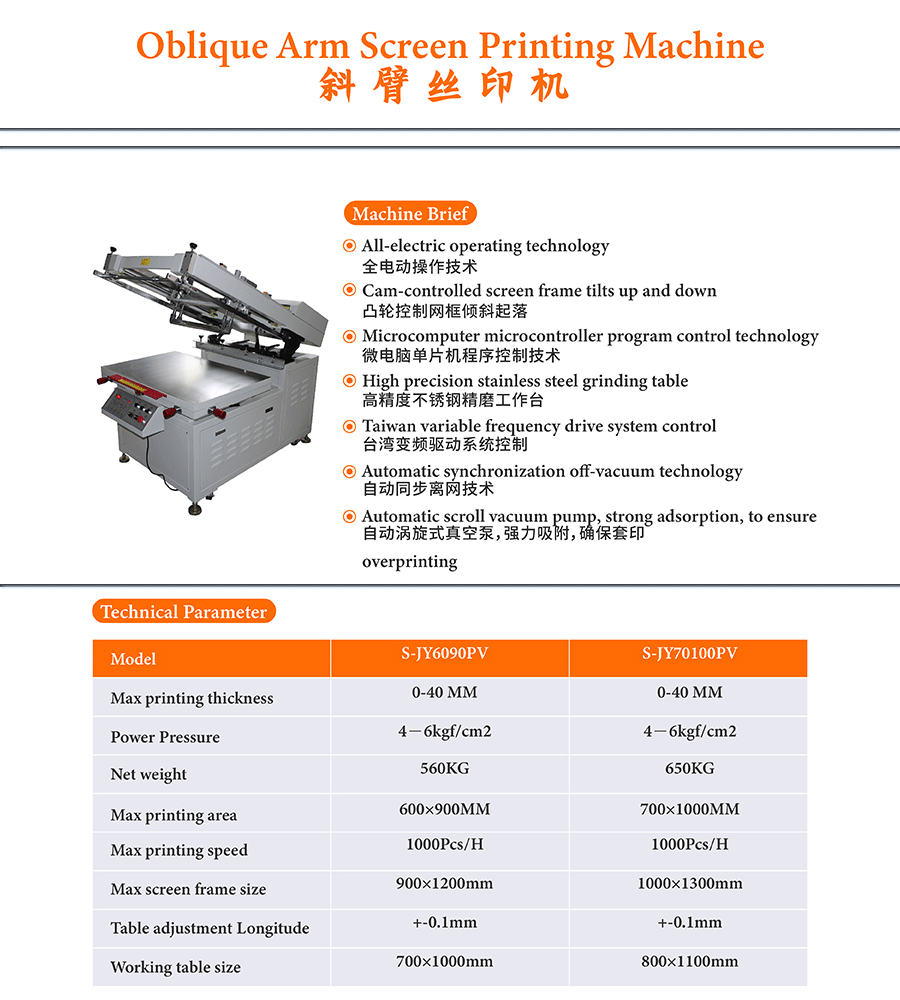

Technical parameters	S-JY80120PV	S-JY90140PV
	1.Max printing thickness:0-40 MM; 2.Power Pressure:4-6 kgf/cm2; 3.Net weight: 560 KG; 4.Max printing area:800×1200 MM; 5.Max printing speed:1000 Pcs/H. 6.Max screen frame size: 1050×1350 mm; 7. Table adjustment Longitude: +-0.1 mm; 8. Working table size: 800×1200 mm	1.Max printing thickness:0-40 MM; 2.Power Pressure:4-6kgf/cm2; 3.Net weight: 700KG; 4.Max printing area:900×1400MM; 6.Max printing speed:1000Pcs/H. 7.Max screen frame size: 1200×1700mm; 7. Table adjustment Longitude: +-0.1mm; 8. Working table size: 1050×1500mm
Factory	110 V-220 V Power supply; 5-7 Bar compress air;
Package parameters	Gross weight: 465kg Wooden case dimension:1.85×1.38×1.45 m CBM: 3.7018
H.S.CODE	8443198000

Slant-arm silk screen printing machine//Usage

- Fit printing soft and thin products such as paper, plastics film etc.;
- With vacuum working table ensure adsorbing object when printing;
- Working table keep stillness but screen frame moving along slant angle make the printing speed higher ;
- Also widely used in Glass Plate, Machine panel screen printing;
- With UV curing machine, Can finish many UV special printing process including UV Spot Varnish, UV frosting , UV glitter Powder ;
- Suitable for printing sheet-fed adhesive sticker
- Suitable for printing water transfer label and heat transfer label through different process.
- Max Printing area: 600*900mm.
- Rubber Squeegee movement driven by Taiwan frequency conversion controlling system .
- widely used to print circuit aboard , Film switch panel etc. industrial High technology field.

Application-Printed samples

Packaging industry: used for printing of various packaging materials, such as cartons, plastic bags, labels, etc.
Advertising industry: used for printing and production of billboards, such as outdoor advertising, promotional posters, etc.
Electronic industry: used for printing of electronic product shells, labels, etc.
Automotive industry: used for printing of labels, logos, etc. for automotive parts.

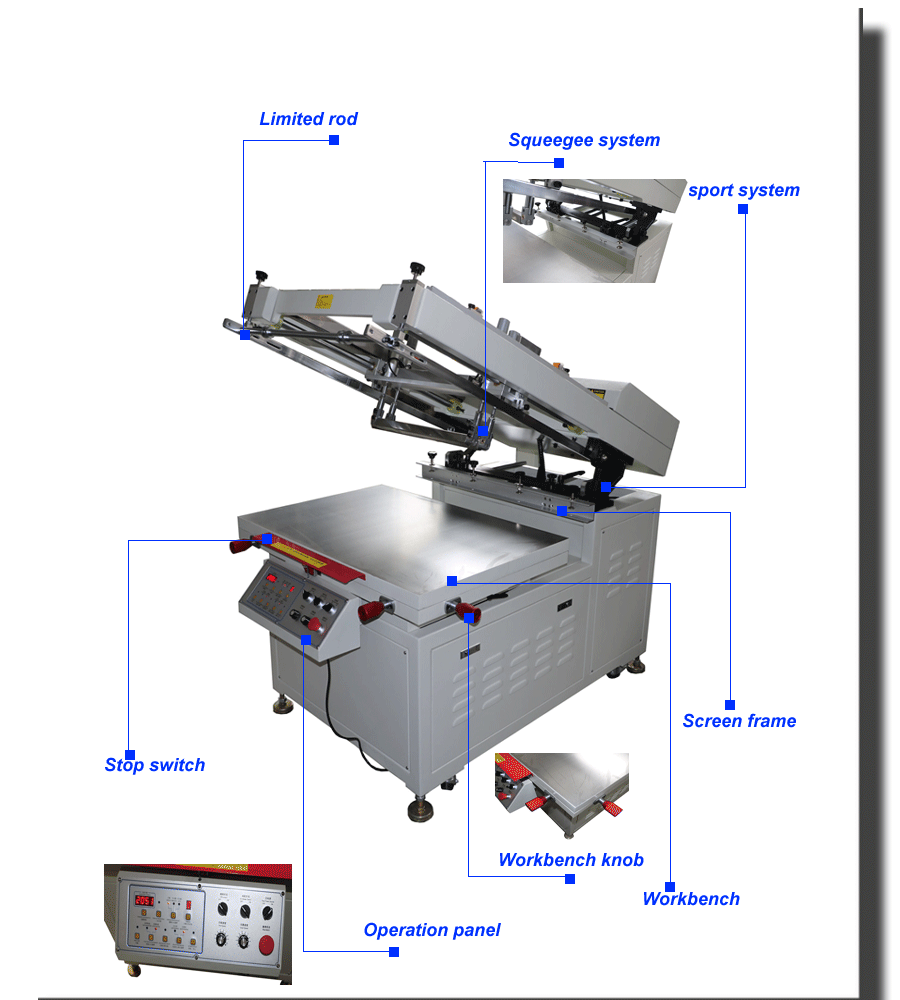

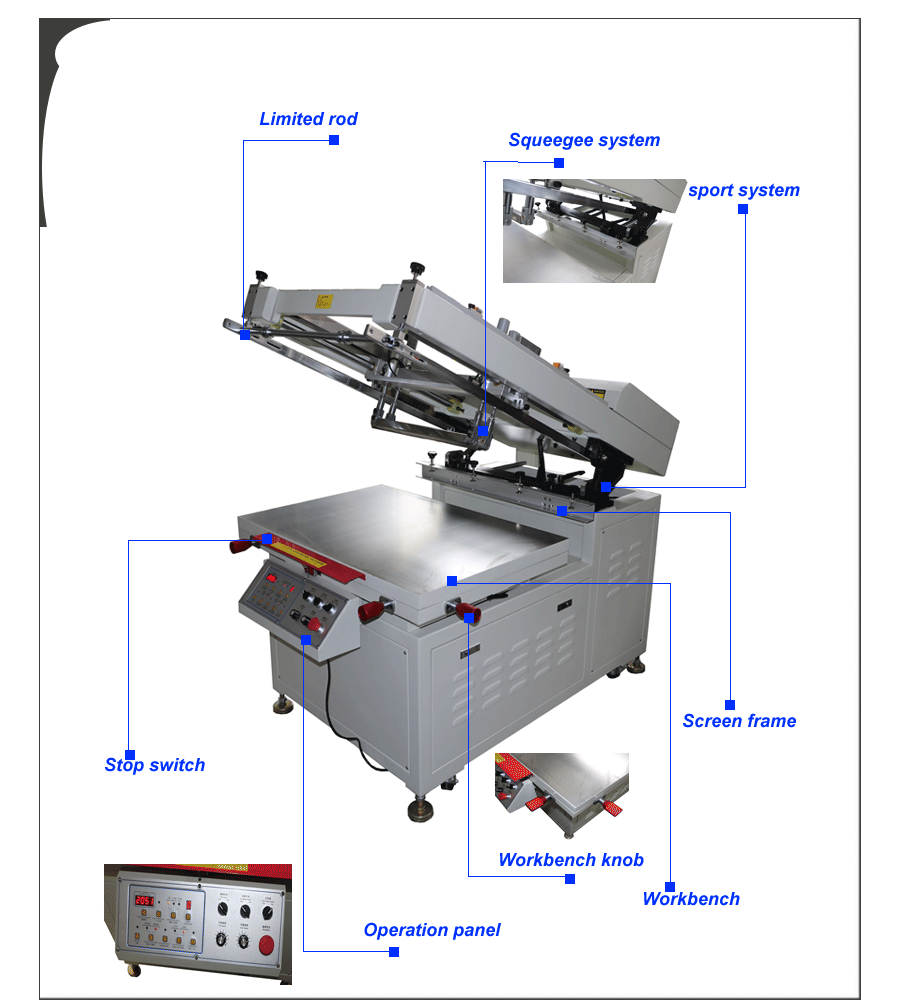

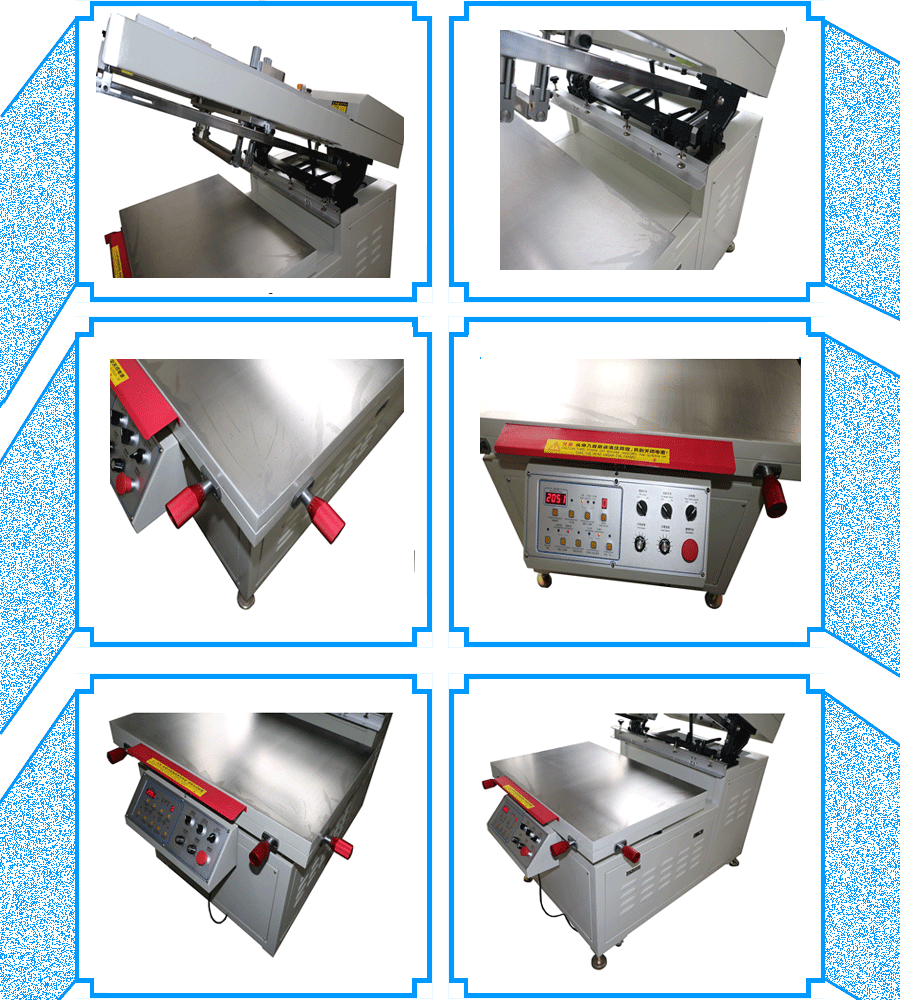

Structure
