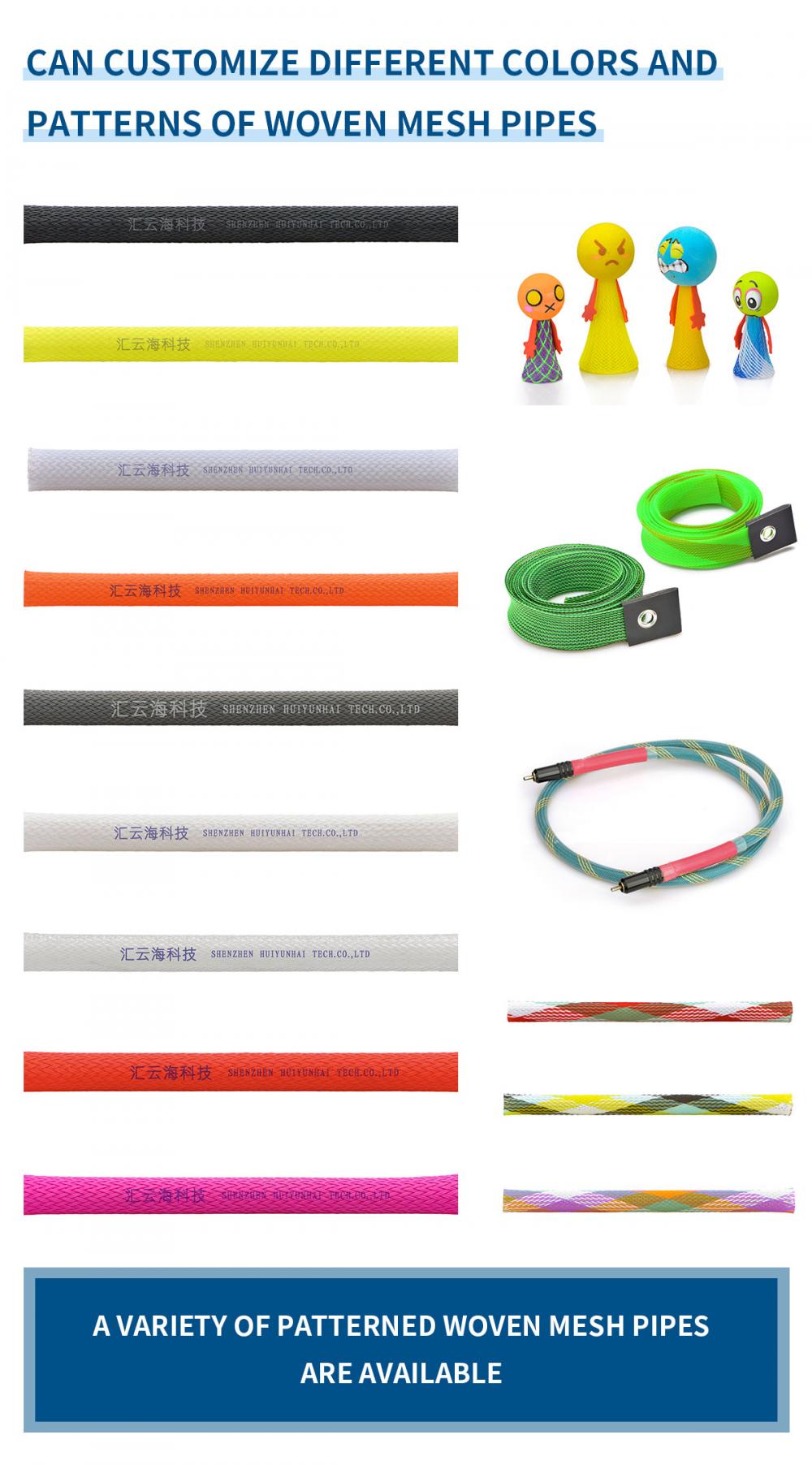

Customized woven mesh pipes with different pattern
3 year ago
The Braided sleeve has established a natural, simple, fresh and simple artistic style in terms of raw materials, colors, knitting technology, etc. In terms of raw materials, light yellow, grayish brown, milky white and other colors and materials, such as corn husk, straw, willow twigs, hemp, etc., bring you aesthetic feeling and simple artistic enjoyment. The Pattern braided sleeve not only shows the elegant light coffee color of willow twigs, but also reflects the simple knitting process, rough design style, and quite interesting. In terms of color, most woven handicrafts are milky white, freshly ground coffee, light green, light ginger, grayish green Neutral colors such as light blue and mixed colors are mainly used, and color contrast is appropriately applied to obtain the actual effect of mixing and comparison, which also shows an elegant and simple artistic style. The woven sleeve has strong ductility and good elasticity. The flame retardant effect is 94-V0 when the temperature is between - 40 and 150 degrees. Generally speaking, the PET Braided sleeve can also be customized according to the needs of users.
Colorful PET Braided Sleeve
Colorful PET Braided Sleeve is braided with environment-friendly and colorful pet monofilament, which has good scalability, flame retardant, wear resistance, heat insulation and aesthetics. We can braid different patterns and colors according to customer requirements.
|
Technique Data-Sheet |
|
|
Material: |
PET |
|
Working Temperature: |
-50℃---150℃ |
|
Melting Point: |
250℃ |
|
Flammability: |
VW-1 |
|
Certified: |
UL、RoHS、REACH |
|
Standard Colors: |
Colorful |
|
Cutting Tool: |
Hot Knife |
|
Application: |
This Product is widely used in power cables, audio and video cables, A/V cables, HDMI cable and other industries to protect and beautify cables; In addition, It is conducive to the promotion and identification of the user's trademark and brand image. |
Product Drawing
|
Size specification |
||||||
|
Model No.: |
Natural Width（W） |
Radio of expandable |
Packing(L) |
|||
|
|
Inch |
MM |
Min（I） |
Max(O) |
|
|
|
HBS-002 |
1/16″ |
2 |
2 |
4 |
1000m/Roll |
|
|
HBS-003 |
1/8″ |
3 |
3 |
6 |
1000m/Roll |
|
|
HBS-005 |
3/16″ |
5 |
5 |
10 |
1000m/Roll |
|
|
HBS-006 |
1/4″ |
6 |
6 |
12 |
500m/Roll |
|
|
HBS-008 |
5/16″ |
8 |
8 |
16 |
500m/Roll |
|
|
HBS-010 |
3/8″ |
10 |
10 |
20 |
500m/Roll |
|
|
HBS-012 |
1/2″ |
12 |
12 |
24 |
350m/Roll |
|
|
HBS-014 |
9/16″ |
14 |
14 |
28 |
350m/Roll |
|
|
HBS-016 |
5/8″ |
16 |
16 |
32 |
350m/Roll |
|
|
HBS-019 |
3/4″ |
19 |
19 |
38 |
250m/Roll |
|
|
HBS-022 |
7/8″ |
22 |
22 |
44 |
250m/Roll |
|
|
HBS-025 |
1″ |
25 |
25 |
50 |
100m/Roll |
|
|
HBS-030 |
19/16″ |
30 |
30 |
60 |
100m/Roll |
|
|
HBS-035 |
11/8″ |
35 |
35 |
70 |
100m/Roll |
|
|
HBS-040 |
25/16″ |
40 |
40 |
80 |
100m/Roll |
|
|
HBS-050 |
2″ |
50 |
50 |
100 |
100m/Roll |
|
|
HBS-060 |
19/8″ |
60 |
60 |
120 |
50m/Roll |
|
|
HBS-070 |
11/4″ |
70 |
70 |
140 |
50m/Roll |
|
|
HBS-080 |
25/8″ |
80 |
80 |
160 |
50m/Roll |
|
|
HBS-090 |
7/2″ |
90 |
90 |
180 |
50m/Roll |
|
|
HBS-100 |
31/8″ |
100 |
100 |
200 |
50m/Roll |
|
Unit：mm
Remark:
1.W means natural and flat width
2.Because of the expandability on the sleeve,the following sizes are considered to be the same：16mm=15mm，19mm=20mm，32mm=30mm，38mm=40mm，51mm=50mm，60mm=65mm,90mm=95mm,100mm=110mm。
And so on, the greater the width. The larger the tolerance allowable.
3.Special packaging, special colors and product width parameters not listed in the table can be customized according to customer requirements.
4.Please refer to the sample acknowledgement for detailed product parameters.
