PET self winding wire protective sleeve
3 year ago

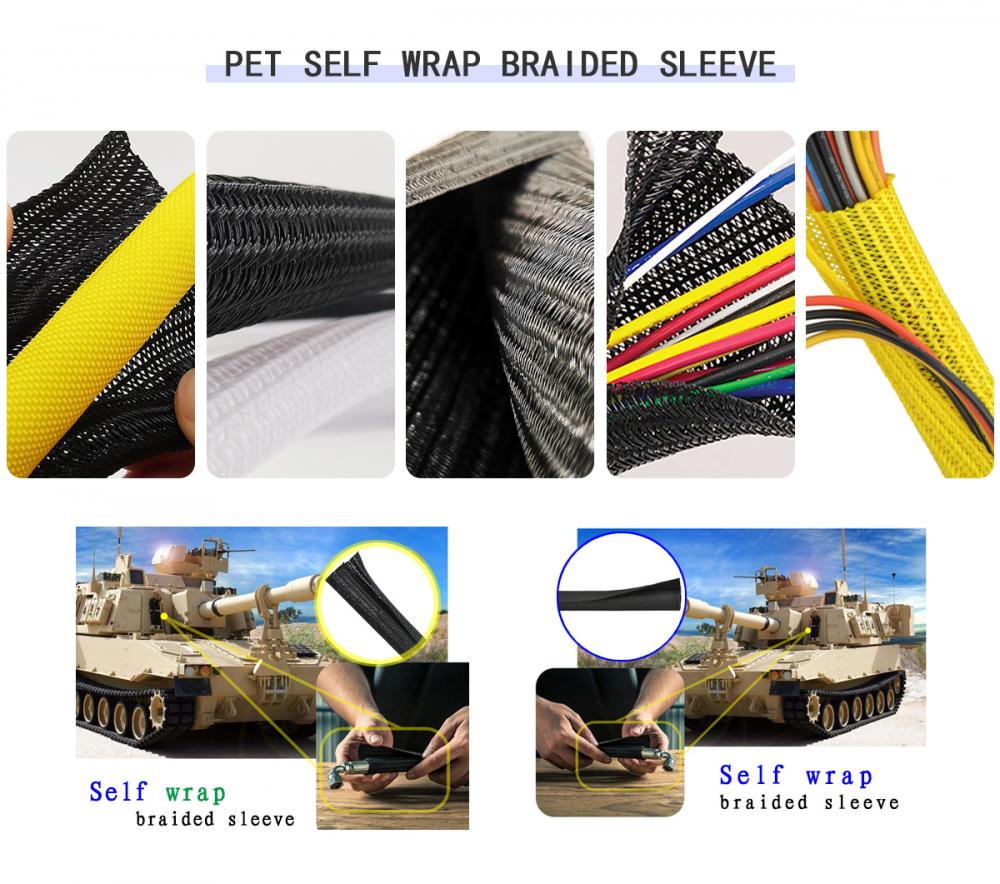

Nowadays, every family uses a lot of electrical appliances, such as computers, televisions, broadband cats, routers, printers, cars, mobile phones, automation equipment, and various chargers, which create a comfortable environment for family life, but also often ignore the hidden dangers of families. Some families will use some Braided sleeve to solve the problem. PET Self wrap braided sleeve are made of multifilament textile, so they will be softer and more flexible, and more suitable for those who need bending space. In addition, they can achieve the role of identification through dyeing. In addition, with the price advantage, Open type braided sleeve are widely used in automobile, industrial equipment, rail transit and other fields for wire harness finishing and protection.
Technique Data-Sheet
Material:
PET and PP
Working Temperature:
-50°C----150°C
Melting Point:
250℃
Flammability:
UL94 V2
Certified:
RoHS、Halogen Free
Standard Colors:
Black,white,grey,yellow and so on.
Cutting Tool:
Hot Knife
Application:
The products are widely used in high-speed railway, automobile, automation equipment and computer wire, especially in the environment that needs protection and heat dissipation.

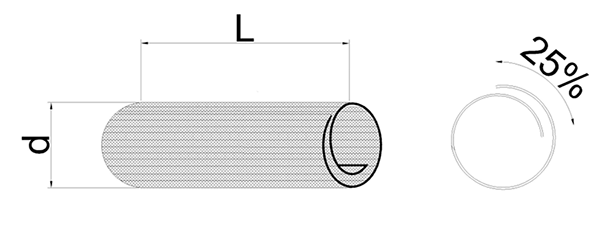

Product Drawing
|
Size specification |
||||
|
Model No. |
Inner diameter（d） |
Coincidence rate（%） |
Max wire harness diameter |
Packing(L) |
|
SCW-006 |
6.0 |
25% |
7.0 |
100m/Roll |
|
SCW-009 |
9.0 |
25% |
10.0 |
100m/Roll |
|
SCW-013 |
13.0 |
25% |
14.0 |
50m/Roll |
|
SCW-016 |
16.0 |
25% |
17.0 |
50m/Roll |
|
SCW-019 |
19.0 |
25% |
20.0 |
25m/Roll |
|
SCW-025 |
25.0 |
25% |
26.0 |
25m/Roll |
|
SCW-032 |
32.0 |
25% |
33.0 |
25m/Roll |
|
SCW-038 |
38.0 |
25% |
40.0 |
25m/Roll |
|
SCW-050 |
50.0 |
25% |
52.0 |
25m/Roll |
Unit：mm
Remarks:
1. Inner diameter refers to the circular diameter of the sleeve, not the folded diameter.
2. Special packaging, special colors, etc. can be customized according to customer requirements.
3. Please make the confirmation refer to the sample acknowledgement for detailed product parameters.
