Cotton braided casing

3 year ago

94 0 

3 year

Product details

The Braided sleeve has strong elasticity, scalability, fire protection, protection, exquisite design, abrasion resistance and flame retardancy. Among them, polyester/cotton braided sleeve is widely used in the wiring of automobiles, airplanes, optical fibers, computers, HDMI lines, DVI lines, power lines, wires, cables, headphone lines, audio and other electrical appliances. It is a very beautiful Pattern braided sleeve and is loved by people.

Technique Data-Sheet
Material:	nylon, polyester, polypropylene, high-strength nylon yarn, nylon yarn and other cotton fibers.
Color:	Black,White,Grey,Yellow and other colors
Working Temperature:	-50℃----150℃
Certified:	RoHS,REACH
Application:	It is applicable to the wire bundle in industry, the beautification and protection of hose cable, computer cable, optical fiber cable, audio and video cables, mobile phone data cable, military harness, parachute cable, etc. in automation.

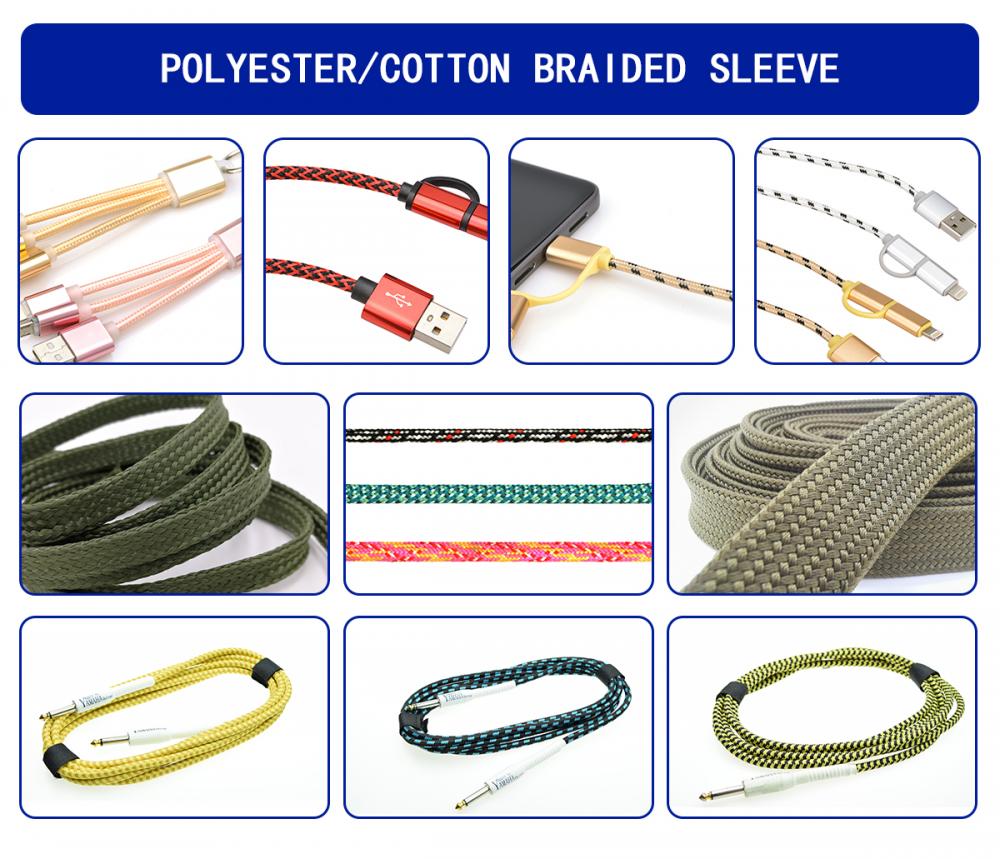

Cotton Braided Protective Sleeve

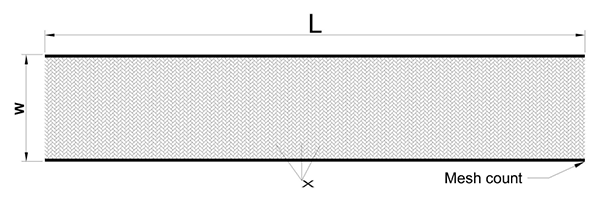

Product Drawing

Polyester Cotton Braided Casing

Size specification
Model No.	Natural Width（W）		Packing（L）
	INCH	MM
CS-002	1/16″	2	1000m/Roll
CS-003	1/8″	3	1000m/Roll
CS-005	3/16″	5	1000m/Roll
CS-006	1/4″	6	500m/Roll
CS-008	5/16″	8	500m/Roll
CS-010	3/8″	10	500m/Roll
CS-012	1/2″	12	350m/Roll
CS-014	9/16″	14	350m/Roll
CS-016	5/8″	16	350m/Roll
CS-019	3/4″	19	250m/Roll
CS-022	7/8″	22	250m/Roll
CS-025	1″	25	100m/Roll
CS-030	19/16″	30	100m/Roll
CS-035	11/8″	35	100m/Roll
CS-040	25/16″	40	100m/Roll
CS-050	2″	50	100m/Roll
CS-060	19/8″	60	50m/Roll
CS-070	11/4″	70	50m/Roll
CS-080	25/8″	80	50m/Roll
CS-090	7/2″	90	50m/Roll
CS-100	31/8″	100	50m/Roll

Unit：mm

Remark:

1.W means natural and flat width

2.Because of the expandability on the sleeve,the following sizes are considered to be the same：16mm=15mm，19mm=20mm，32mm=30mm，38mm=40mm，51mm=50mm，60mm=65mm,90mm=95mm,100mm=110mm。

And so on, the greater the width. The larger the tolerance allowable.

3.Special packaging, special colors and product width parameters not listed in the table can be customized according to customer requirements.

4.Please refer to the sample acknowledgement for detailed product parameters.

5.We usually braid this kind of products directly on the corresponding cables.
