SJ-FTTH-SK18-A Fiber Access Termination Box

1. Description:

The SJ-FTTH-SK18-A Fiber Access Termination Box is designed to support up to 16 subscribers, utilizing pre-terminated cables for seamless connectivity. This termination box serves as a crucial point for connecting feeder cables with drop cables within FTTx network systems. It combines fiber splicing, splitting, distribution, storage, and cable connection into a single robust unit.

The pre-terminated design significantly reduces installation time and labor costs, allowing users to simply plug in the pre-terminated cable assemblies into the compatible fiber adapters without the need for on-site fiber termination.

2. Key Features:

Versatile Installation Options: Can be easily wall-mounted or pole-mounted to suit various installation environments.

Dual Installation Methods: Suitable for both FTTH pre-installation and on-site installations.

Compatible with Various Cables: Designed for use with 2 x 3 mm indoor FTTH drop cables and outdoor figure-8 self-supporting drop cables.

High Protection Rating: With an IP65 rating, this box is moisture-proof and resistant to aging.

Integrated Design: Features a flap-up splice cassette and an adapter holder for streamlined organization.

Durable Construction: Made from stainless steel with anti-rust bolts and nuts for long-lasting performance.

Fiber Bend Radius Control: Maintains a bend radius of over 40 mm to protect the fibers.

Splicing Compatibility: Suitable for use with both fusion splicers and mechanical splices.

Optional Splitter Installation: One 1x8 splitter can be installed as an optional feature.

Mechanical Sealing Structure: Incorporates a mid-span cable entry for secure sealing.

Generous Cable Entrance: Equipped with 16 ports for drop cable entries and 16 adapters for patching.

3. Specifications:

Model: SJ-FTTH-SK18-A

Dimensions: 275 mm x 175 mm x 82 mm

Capacity: Supports splicing for 16 fibers with 16 adapters

PLC Splitter Compatibility: Can accommodate one 1x16 PLC splitter

Cable Ports: 16 ports for drop cable connections

Material: PC+ABS

Sealing Structure: Mechanical sealing for enhanced protection

Weight: 1.22 kg

Installation Methods: Wall mounting or pole mounting

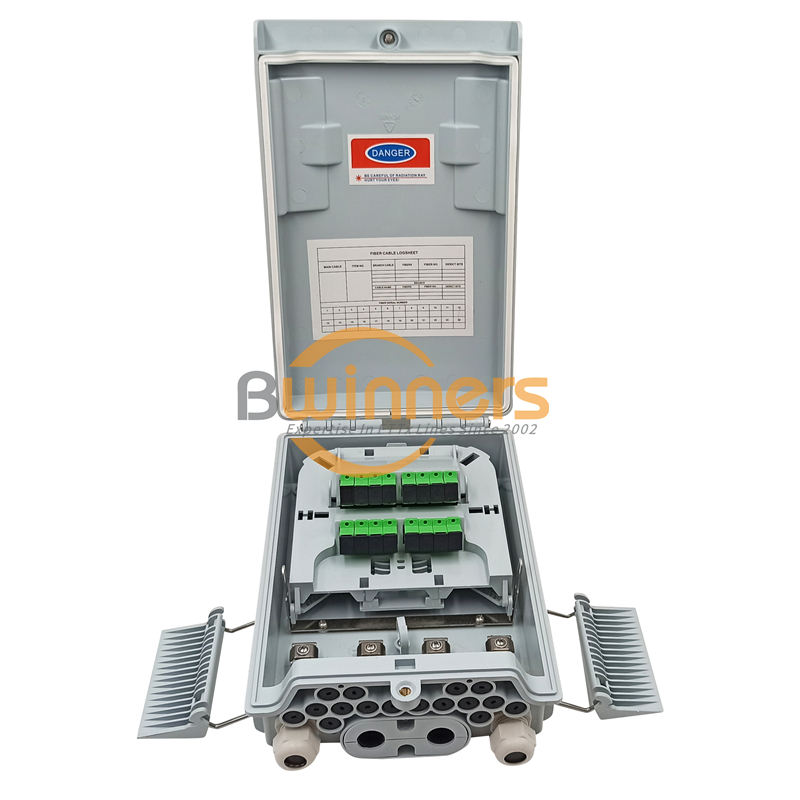

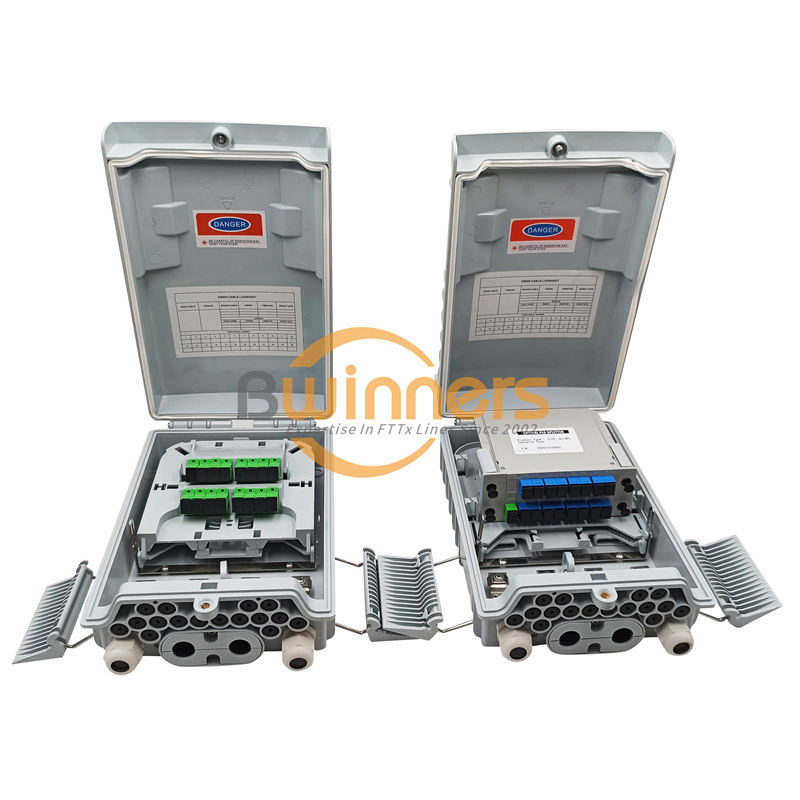

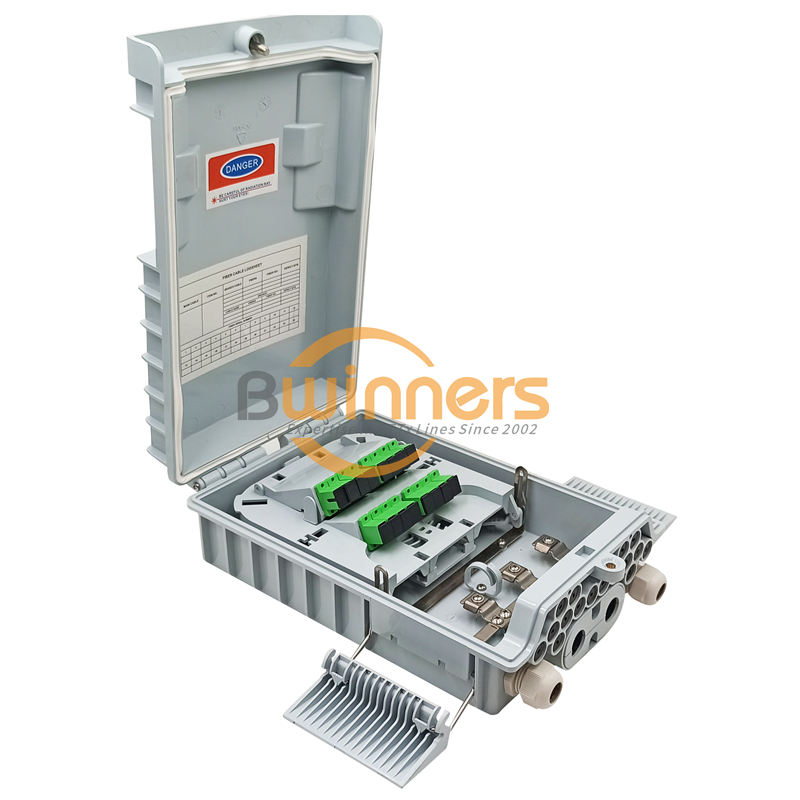

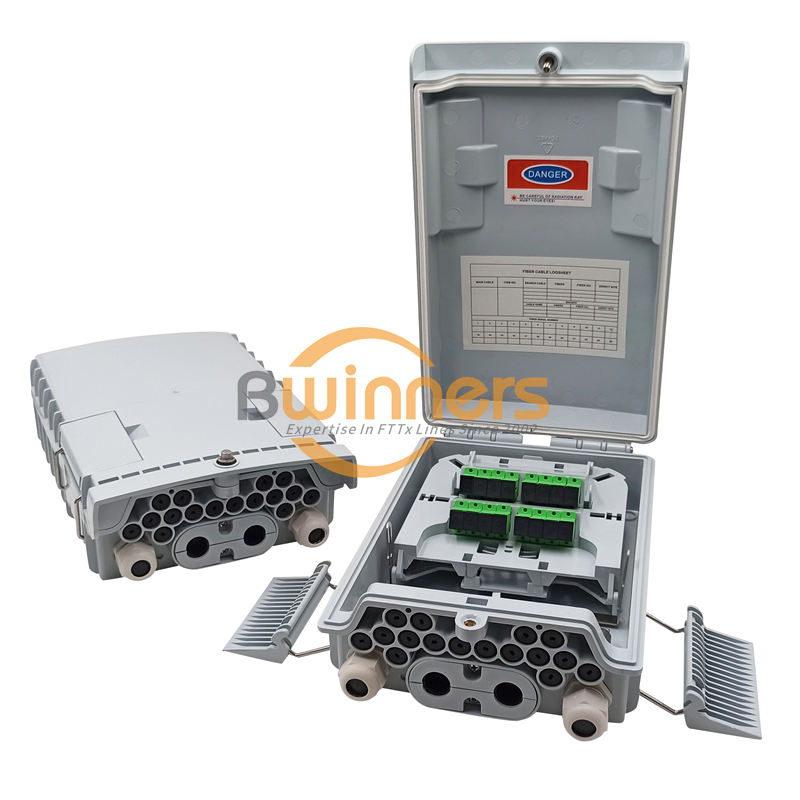

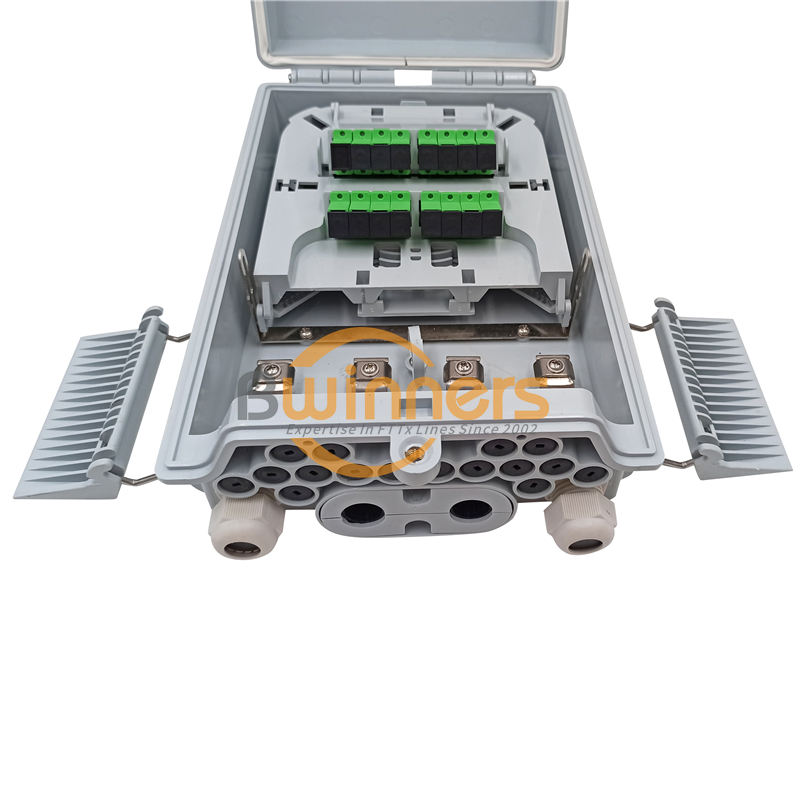

4. SJ-FTTH-SK18-A Fiber Access Termination Box's Photos

The SJ-FTTH-SK18-A Fiber Access Termination Box is your ideal solution for efficient fiber optic management, delivering durability, ease of use, and significant time savings for all your FTTx network installation needs.
