MBN-FOSC-A11

2 month ago

6 0 

9 year

Product details

Pre-connectorized Fiber Optic Cable Distribution Box 8core

1. Description:

The Bwnfiber Fiber Optic Splitter Box is designed to efficiently manage and distribute fiber optic cables, playing a crucial role in organizing connections and drop cables to facilitate a seamless FTTx communication network system. This FTTH splitter box not only helps to streamline the network setup but also protects the cables from external factors that could potentially damage them or disrupt signal transmission.

Available in various configurations to meet the diverse demands of different network types, the fiber optic splitter box integrates multiple functions, including storage, splicing, cable fixation, distribution, and splitting, making it suitable for both indoor and outdoor installations.

2. Features:

Completely Enclosed Design: Ensures maximum protection for the components inside.

Durable Material: Constructed from PC+ABS, offering wet-proof, waterproof, dust-proof, and anti-aging properties, with a protection rating of up to IP65.

All-in-One Functionality: Combines clamping for feeder and drop cables, fiber splicing, fixation, storage, and distribution in a single unit.

Organized Cable Management: Allows cables, pigtails, and patch cords to follow designated paths without interference, ensuring efficient micro-type PLC splitter installation and easy maintenance.

User-Friendly Access: The distribution panel can be flipped up for easy access, while feeder cables can be conveniently placed through the expression port, simplifying maintenance and installation processes.

Flexible Installation Options: Can be wall-mounted or pole-mounted, making it suitable for both indoor and outdoor applications.

3.Specifications:

Environmental Requirements:

Operating Temperature: -40℃ to +85℃

Relative Humidity: ≤85% at +30℃

Atmospheric Pressure: 70KPa to 106KPa

Main Technical Data:

Insertion Loss: ≤0.3dB

UPC Return Loss: ≥50dB

APC Return Loss: ≥60dB

Thunder-Proof Technical Data:

Insulation Resistance: Between the grounding device and the metal parts of the box must be no less than 2MΩ at 500V (DC).

Voltage Resistance: At least 3000V (DC)/min between the grounding device and the box and its metal components, with no punctures or flashovers.

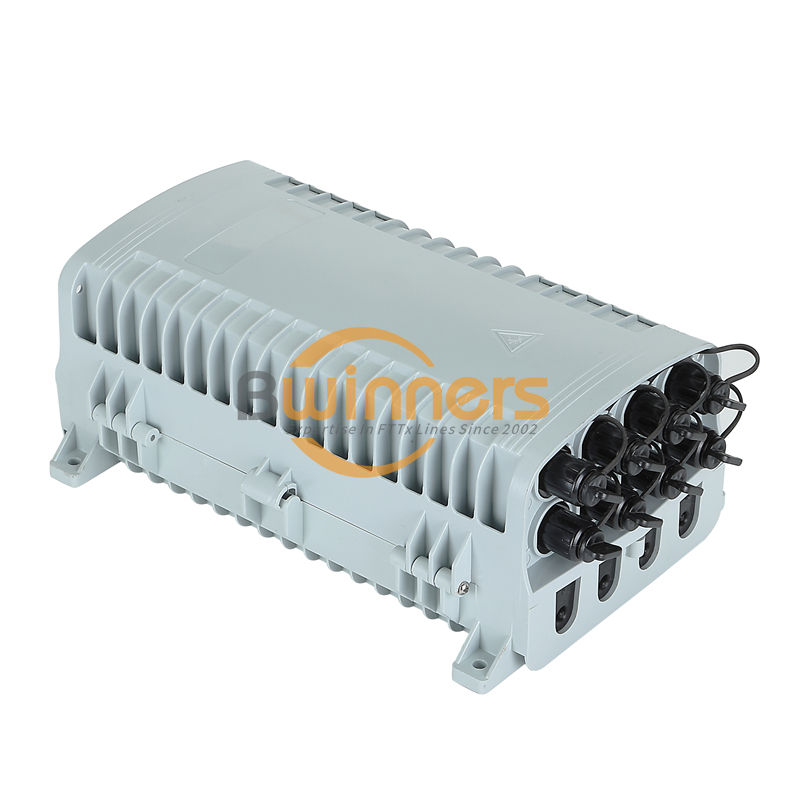

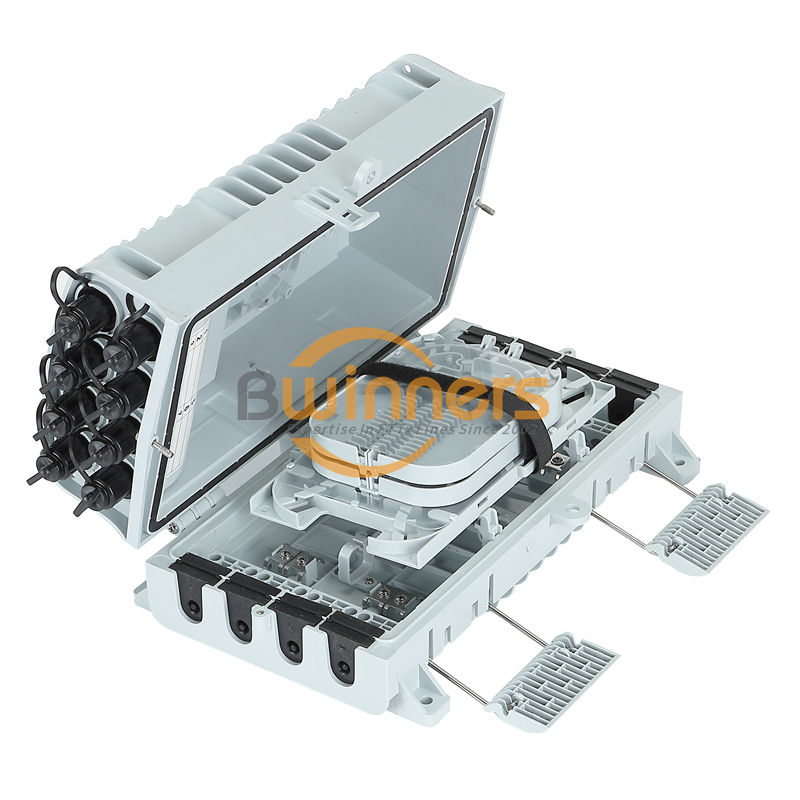

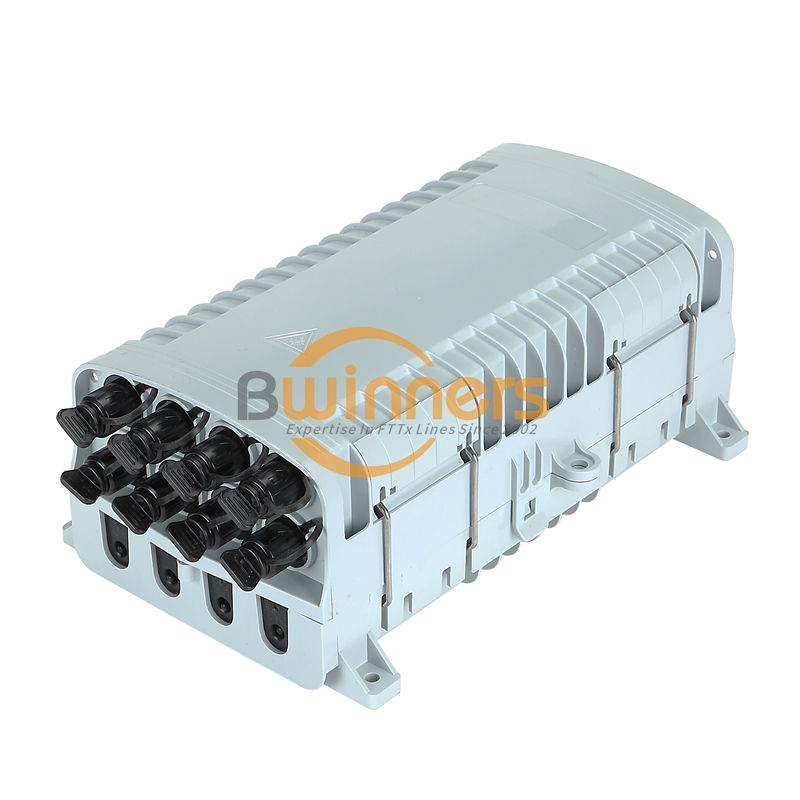

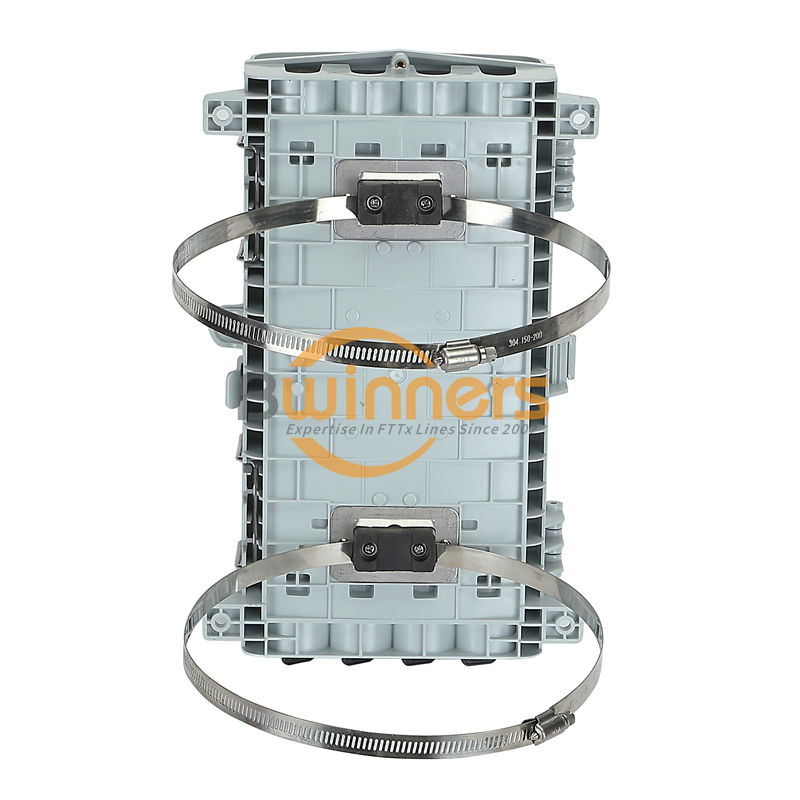

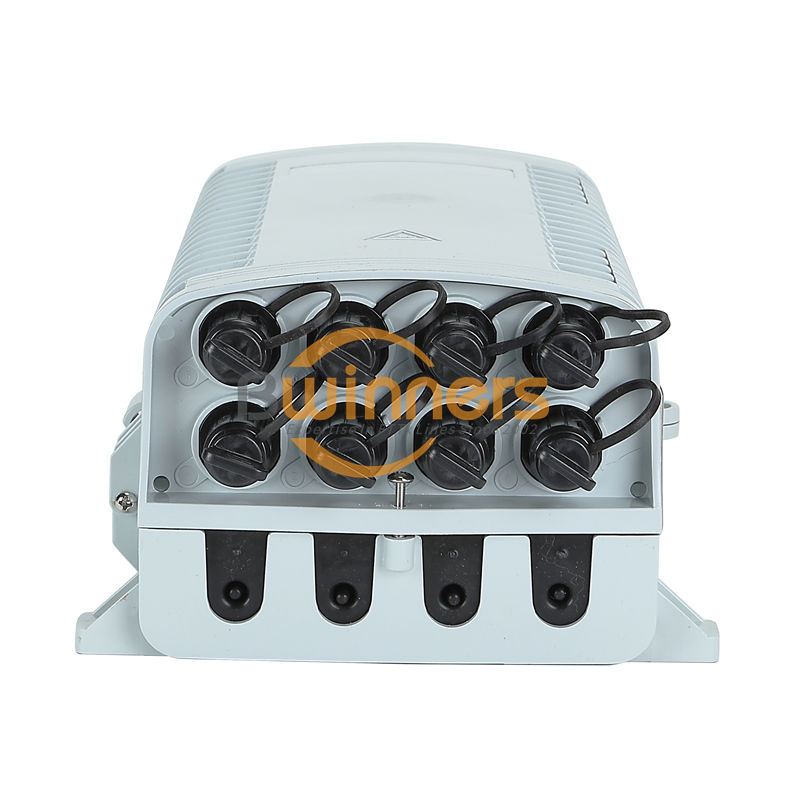

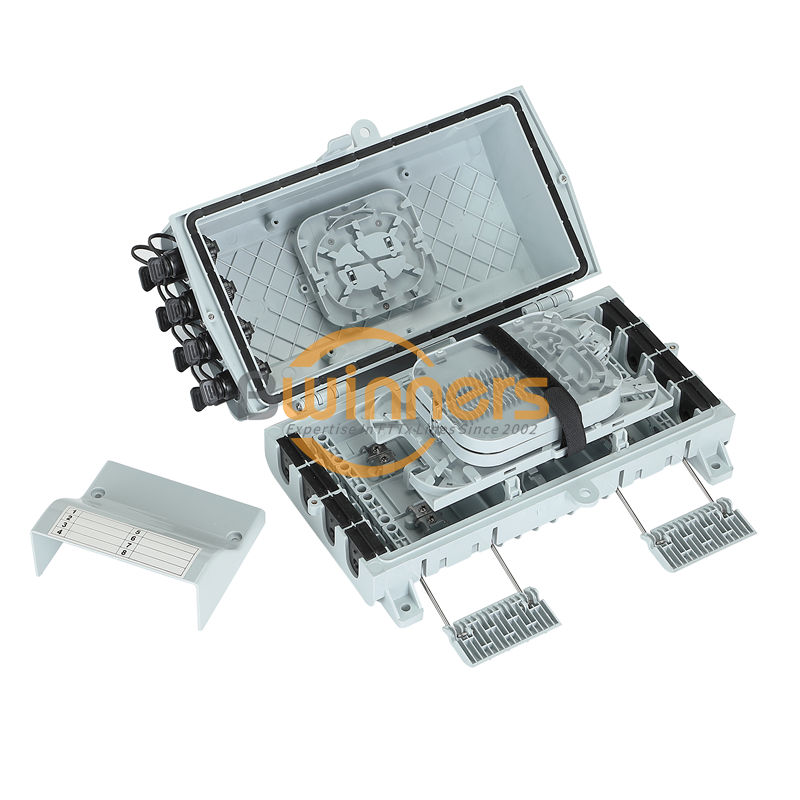

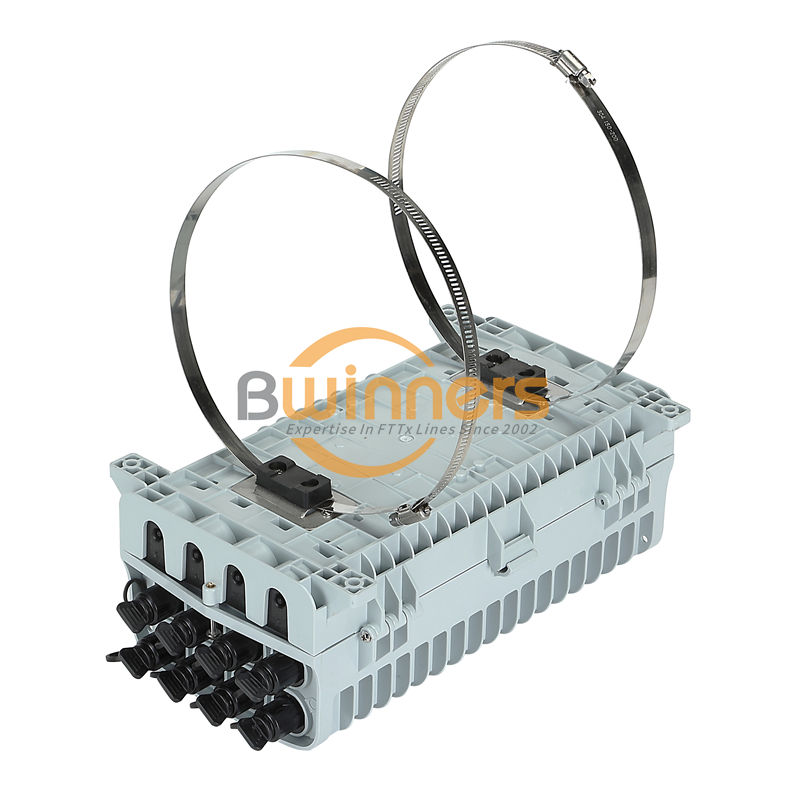

4. MBN-FOSC-A11's photos

For any additional information or inquiries, feel free to reach out!
