Product details

Automatic round-oval-square bottle screen printing machine

The full-servo multi-function CCD positioning container screen printer is an industrial-grade printing equipment that integrates high precision, flexibility and intelligence. It is specially designed for the screen printing needs of complex-shaped containers (such as round, square, conical bottles, and special-shaped parts), and realizes the maximum adaptability of a machine to most containers.

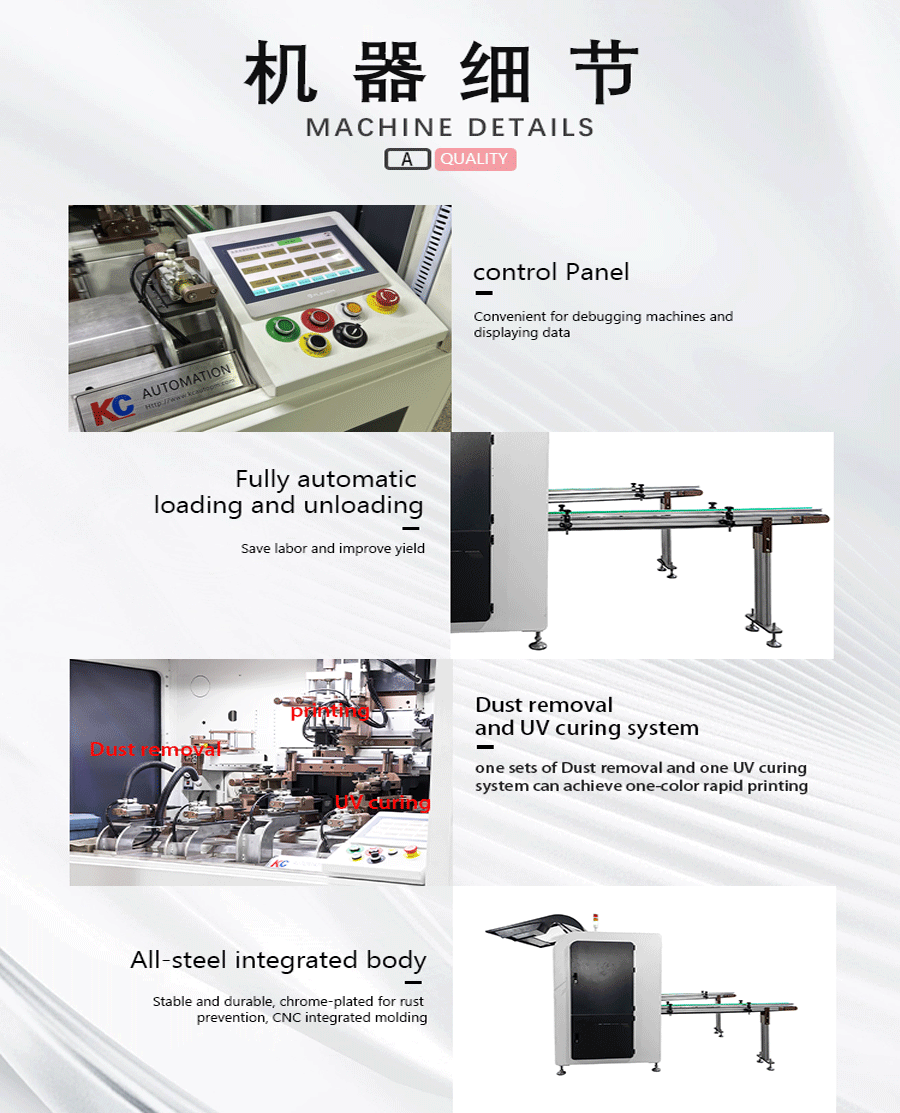

1. Full servo drive system

Bottles have various shapes, sizes, and materials. If you want to print on a screen printer, you must use a servo drive system. When changing fixtures and screens, you can use intelligent data adjustment. For some oval, square bottles or bottles with more complex shapes, the printing head needs to float according to the shape during the printing process. Only a multi-axis linkage servo device can achieve this. The servo motor drives the X/Y/Z axis and rotation axis of the printing head to achieve a repeatable positioning accuracy of ±0.01mm.

2. CCD visual positioning technology

If there are special requirements for the starting position of the bottle, the CCD positioning technology is the most reliable. The industrial camera captures the container contour in real time, and the offset is calculated by combining the AI algorithm to achieve a positioning accuracy of ±0.02mm. Support dynamic adjustment of printing path to adapt to irregular containers such as cylindrical and conical shapes.

3. Flexible feeding technology

Bottles have complex shapes, and servo-driven manipulator gripping devices are usually used to ensure that the screen printer can still shuttle easily when changing bottles, and achieve perfect docking between the feeding mechanism and the printing mechanism.

4. UVLED curing device

In high-speed automation systems, UVLED is the most efficient and environmentally friendly technology, which can ensure instant drying of ink. This full servo machine is suitable for various types of UV inks, whether it is glass, metal, or plastic, as long as the appropriate power adjustment is made to achieve higher adhesion.

Description

Automatic screen printing machine;
Designed specifically for the printing of hollow plastic bottle design independent feeder, efficient printing, and other containers can be converted mold printing, simple operation, save a lot of manpower to provide complete solutions for the plant productivity is low.
Market fully automatic screen printing machine in bottles all the connection type screen printing system, bottle finished the first color, into the second printing unit to the second color screen printing. Tolerance in the length direction, the type of screen printing machine can do a 5-color to six colors.

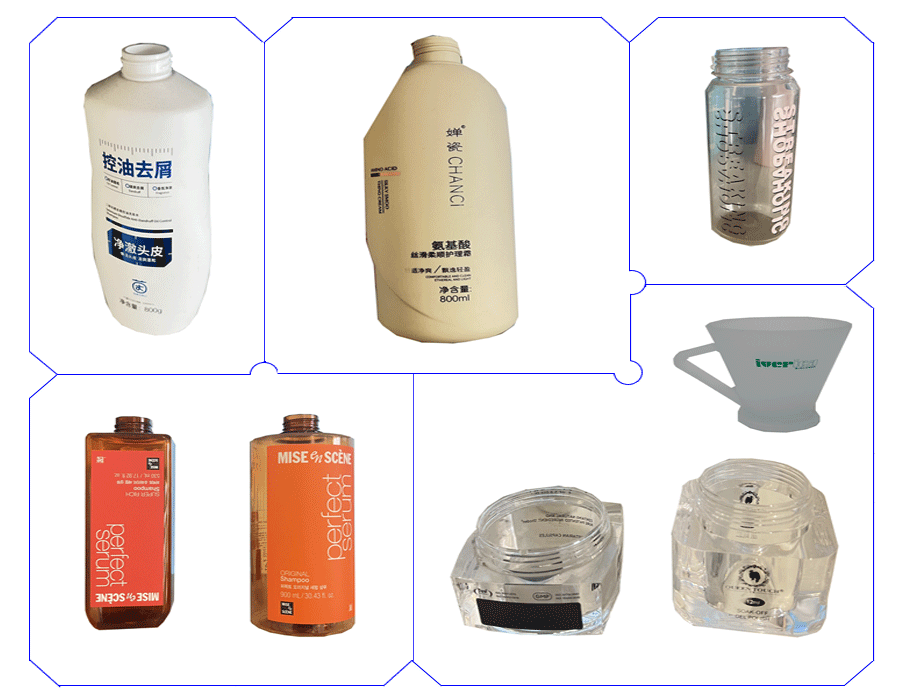

Cosmetics, pharmaceuticals and food industry within the round, flat, square container on the surface of the printing of various patterns, such as cosmetic bottles, detergent bottles, beverage bottles, milk bottles, space cups, filters, jars and other high-speed screen printing

Plastic packaging, oil industry, cosmetics industry, commodity manufacturing industries;
Automotive filters, cylindrical products with positioning points;
Various hollow containers, some hoses, some open type containers;
Some have smooth sides of the cap.

Technical parameters

Round-object Max printing stroke: 300mm;
Oval-object Max Printing stroke: 120mm;
Round-object Max Printing speed: 4000pc/h;
Oval-object Max Printing speed: 4500pc/h;
Work piece size(Round): Diameter:25-100mm;Length:60-300mm;
Work piece size( Oval): Width:25-260mm, Length:60-300mm;
Power supply: AC380V,3Phase ,45A/(1-3Colour),100A/(4-5Colour);
UV Lamp wattage: 4KW/pc;
UV Exhaust fan wattage: 0.2KW;
Exhaust rate: 11.6 m3/min;
Motor Wattage: 0.75KW;
Reduction gearbox : 1:7.5;
Feeding motor wattage : 0.75KW;
Fixture motor wattage : 0.5KW;
Vacuum Pressure : 500 mm/Ag;
Flame gas: Liquefied Petroleum gas( LPG);
Air : 6 Bar;
Air rate of flow : 1500Lit/M.
