Rail gap adjuster and regulator
2 month ago

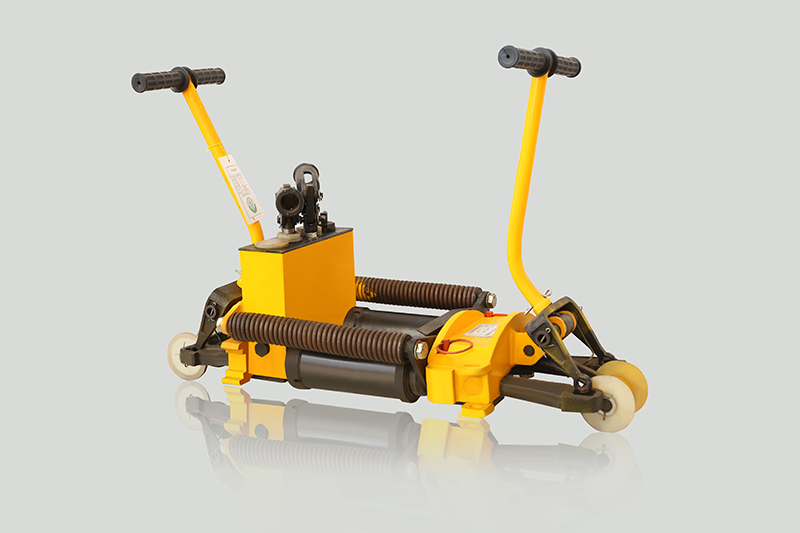

Hydraulic Rail Pulling and Pushing Device
PRODUCT FEATURES
This machine is used for pulling together or pushing apart 2 flat bottom rails in longitudinal direction.It is suitable for various types of rails of 43~75kg/m. It can not only push the rail outward to make the rail gap larger, but also pull the rail inward to make the rail gap smaller. An emergency unloading valve is installed on the main clamp body. When the wedge iron and the steel rail are" seized", the emergency unloading valve can be interrupted to make the machine safely down the road.
TECHNICAL DATA
Max. tensile/compressive force
400 kN
Rated pressure in hydraulic system
48 MPa
Working cylinder diameter
φ70 mm
Piston travel
≥110 mm
No-load work efficiency
≥1.9 mm
Handle operating torque
≤440N.m
Dimensions
1250x400x360mm
Weight
92 kg
