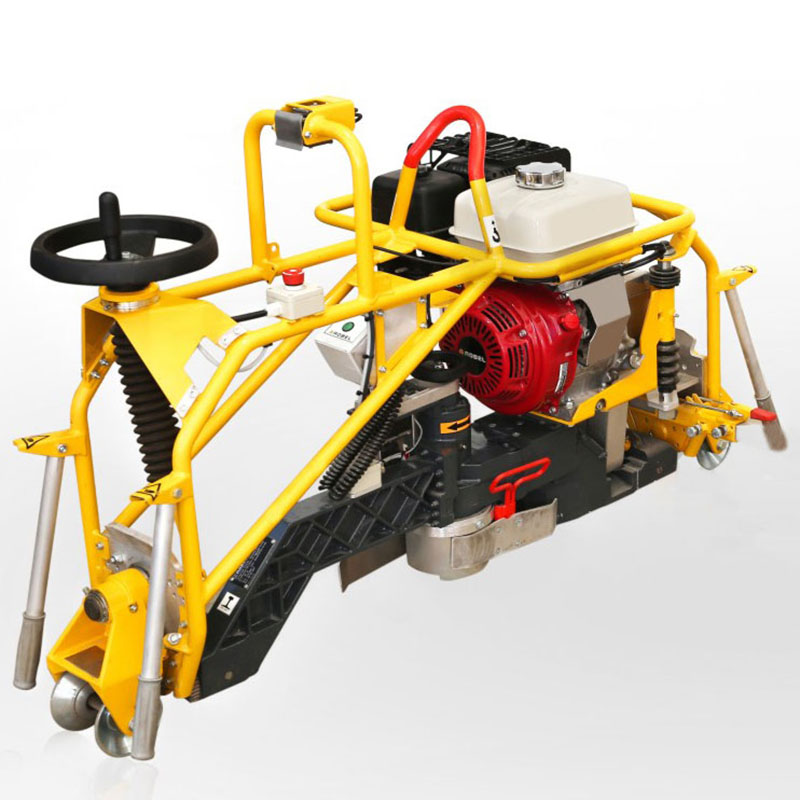

NGM-5.1 Rail Profile Grinding Machine
4 year ago
Rail Profile Grinding Machine
PRODUCT FEATURES
This machine is mainly used for forming and grinding operations of railway rail welding joints and rail surface repairs. The development and application of the CNC feed unit realizes the intelligent control of the grinding wheel feed. Significantly improve the profiling accuracy and polishing efficiency.
BENIFITS
● Angle of the grinding head is set using an adjustment wheel, lowering/raising of the grinding stone is electrically contlled
● Equipped with spark protection device
● Equipped with electric control system prevents over grinding by limiting the lowering of the grinding stone
● Grinds the whole head of rail in one single operator, no need to turn the machine or to handle it
TECHNICAL DATA
Engine
HONDA GX270
Power
5.1 kW
Grinding wheel specifications
φ125x65 mm
Feeding accuracy
0.1 mm
Turning angle of grinding stone
±90°
Spindle revolution
4100r/min
Grinding stone feeding stroke
42 mm
Profile wheel span
1000 mm
Dimensions
1450x550x900mm
Weight
100 kg
Weight of supporting rod
14 kg
