1615 RGB SMD LED 0603 RGB LED
2 month ago
- 0603 SMD LED -
1615RGB
These small size RGB LED have a little lens on the top of the LED, which can make the SMD RGB LED got more diffused lens. On the other hand, because of the samll size, this RGB LED can be easier to fit any kinds of small PCB size for lighting or indicator. There have four lead on the bottom of the SMD RGB LED. You can light up any kind of color of this LED by pass the current through the leads. Do you need some small RGB LED for your project? Contact us now!
- Size: 3.2mm*1.5mm*1.0mm
- Chip Number: 3 chip
- Color: RGB
- Type: Surface mount device
- Different color are available
- Different wavelength are available
- Warranty: 5 Years
- RoHS, REACH, EN62471
- Uniform light output
- Long life-solid state reliability
- Low Power consumption
-Anti UV epoxy resin package
-High temperature resistance

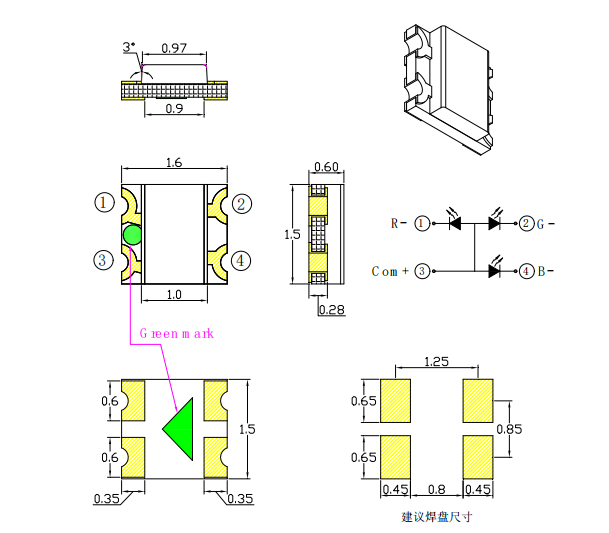

-Dimension Parameters -
These SMD LED case are also available for IR LED, UV LED, Blue SMD LED, Red SMD LED, Amber LED ect.
- Emitting Color -
*Colors in the photo was took by camera, please take actual emitting color as standard.
- Electrical Parameters -
|
Parameter |
Symbol |
Rating |
||
|
Red |
Green |
Blue |
||
|
Power Dissipation |
Pd |
50mw |
70mw |
70mw |
|
Pulse Forward Current |
IFP |
100mA |
100mA |
100mA |
|
Forward Current |
IF |
30mA |
30mA |
30mA |
|
Reverse Voltage |
VR |
5V |
5V |
5V |
|
Junction Temperature |
Tj |
115°C |
||
|
Operating Tempertature |
Topr |
-40 - +80°C |
||
|
Storage Tempertature |
Tstg |
-40 - +100°C |
||
|
Soldering Temperature |
Tsol |
260°C |
||
|
Electro-Static-Discharge(HBM) |
ESD |
3000v |
||
|
Warranty |
Time |
5Years |
||
|
Antistatic bag |
Piece |
1000Back |
||
|
*Pulse Forward Current Condition:Duty 1% and Pulse Width=10us. |
||||
|
*Soldering Condition:Soldering condition must be completed with 3 seconds at 260°C |
||||
|
Parameter |
Symbol |
Min |
Typ |
Max |
Unit |
Test Condition |
|
|
Forward Voltage |
Red |
VF |
1.9 |
2.0 |
2.4 |
V |
IF=20mA |
|
Green |
2.8 |
3.1 |
3.4 |
||||
|
Blue |
2.8 |
3.1 |
3.4 |
||||
|
Luminous Intensity |
Red |
IV |
100 |
|
300 |
mcd |
IF=20mA |
|
Green |
600 |
|
900 |
||||
|
Blue |
100 |
|
200 |
||||
|
Peak Wavelength |
Red |
λP |
620 |
625 |
630 |
nm |
IF=20mA |
|
Green |
520 |
530 |
535 |
||||
|
Blue |
465 |
470 |
475 |
||||
|
Half Width |
Red |
Dl |
|
18 |
|
nm |
IF=20mA |
|
Green |
|
25 |
|
||||
|
Blue |
|
18 |
|
||||
|
Viewing Half Angle |
2q1/2 |
|
±60 |
|
deg |
IF=20mA |
|
|
Reverse Current |
Red |
IR |
|
|
5 |
uA |
VR=5V |
|
Green |
|
|
5 |
||||
|
Blue |
|
|
5 |
||||
|
*Luminous Intensity is measured by ZWL600. |
|||||||
|
*2q1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity. |
|||||||
|
*lD is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device. |
|||||||
- Golden Wire Connection -
- Packing -

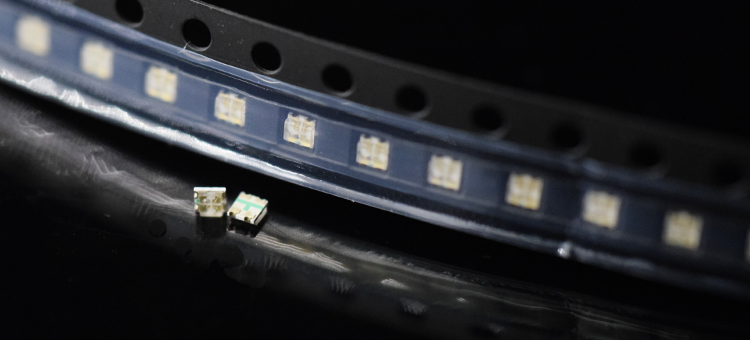

*We package it with vacuum packing after tape it as a reel
